Window Panel Lamp Replacement - Rear (SEO)

WINDOW PANEL LAMP REPLACEMENT - REAR (SEO) (IMPALA RPO 6J6)

REMOVAL PROCEDURE




1. Remove the rear seat back.

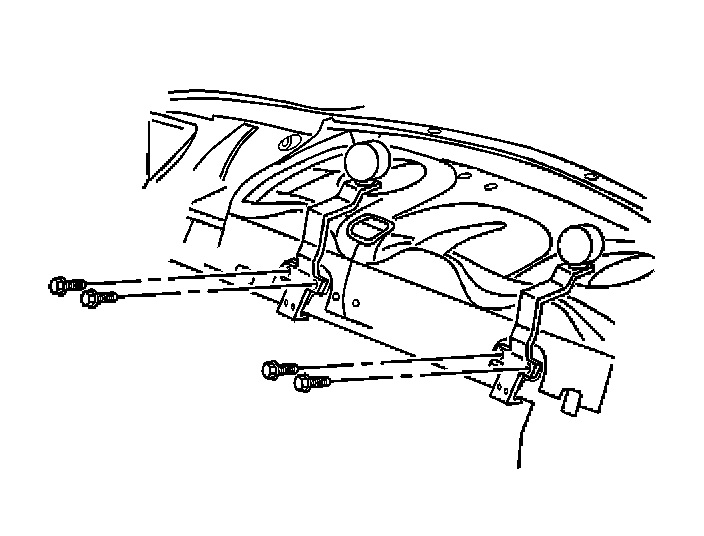

2. Remove the bolts from the rear window panel lamp bracket(s).

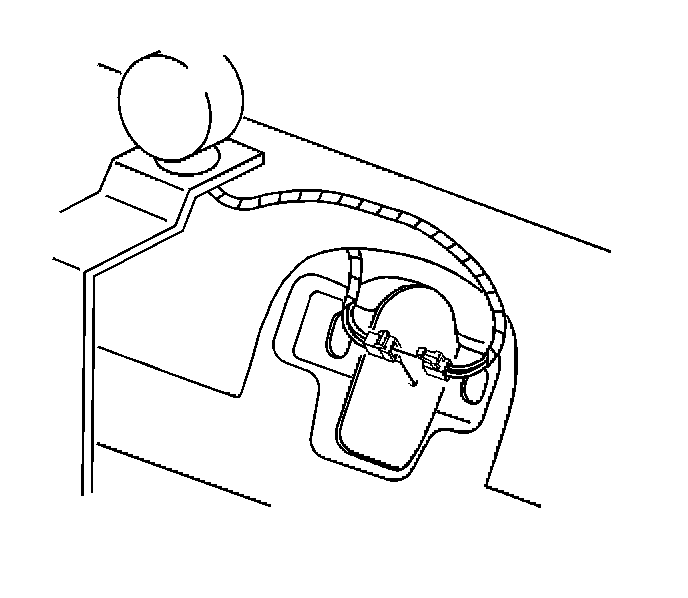

3. Disconnect the electrical connector(s).
4. Remove the rear window panel lamp(s) from the rear window panel.

INSTALLATION PROCEDURE

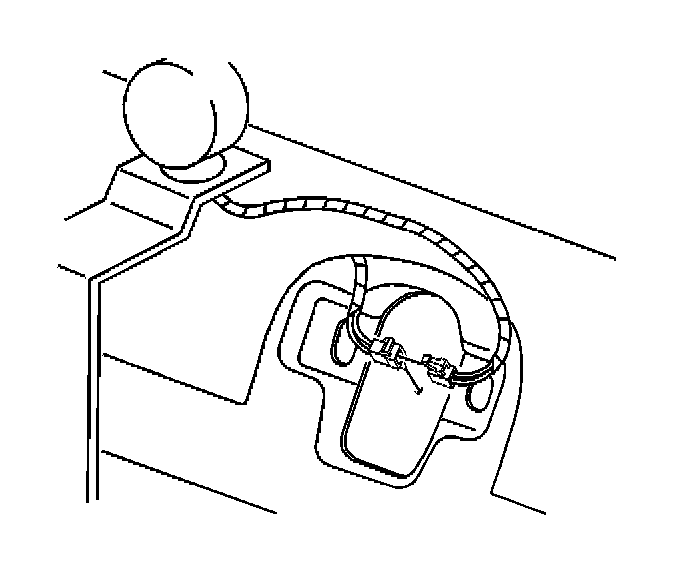

1. Connect the electrical connector.

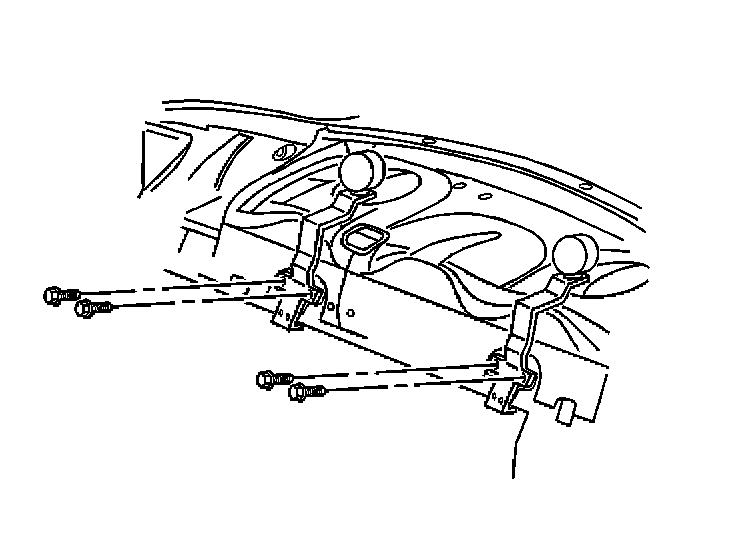

2. Position the rear window panel lamp bracket(s) to the rear window panel.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the bolts to the rear window panel bracket(s).

Tighten
Tighten the window panel bolts to 3 N.m (27 lb in).

4. Install the rear seat back.
