Instrument Panel (IP) - Lower Trim Plate Replacement

TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) LOWER

REMOVAL PROCEDURE




1. Open the instrument panel (I/P) compartment door.

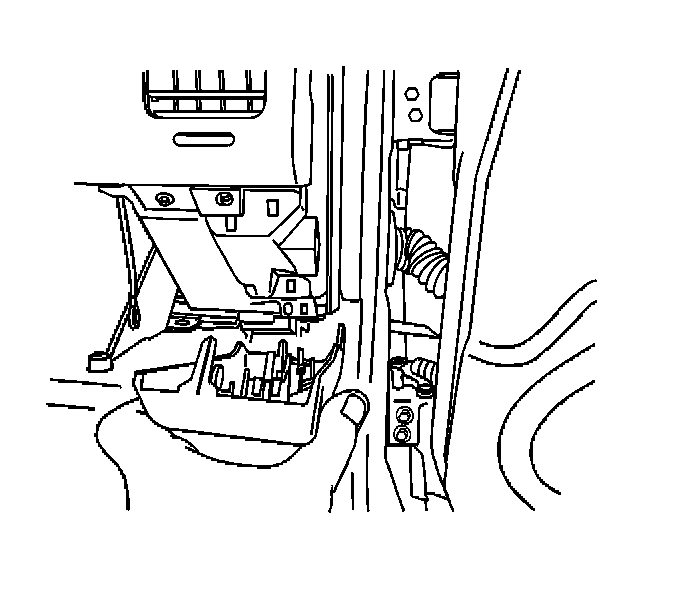

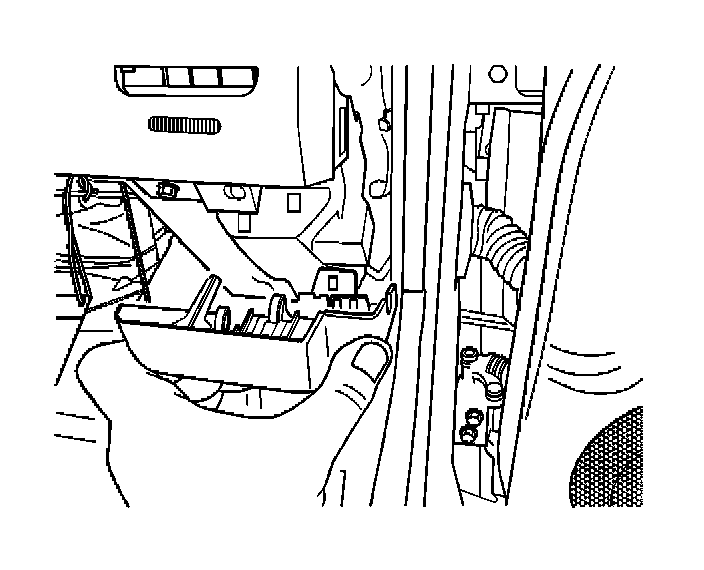

2. Pull the right lower I/P trim plate rearward in order to release the retainers.




3. Remove the right lower I/P trim plate from the instrument panel.

INSTALLATION PROCEDURE

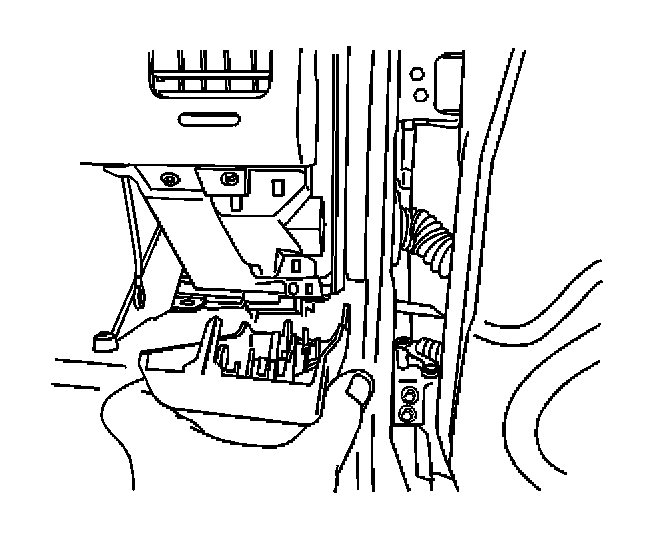

1. Position the right lower I/P trim plate retainers to the slots in the I/P lower trim panel.




2. Install the right lower I/P trim plate starting at the bottom. Press the panel straight in and work upward, pressing in the retainers until fully seated.
3. Close the I/P compartment door.
