C101 (LF Wheel Speed Sensor Jumper Harness to Body Harness)
C101 (LF Wheel Speed Sensor Jumper Harness to Body Harness)

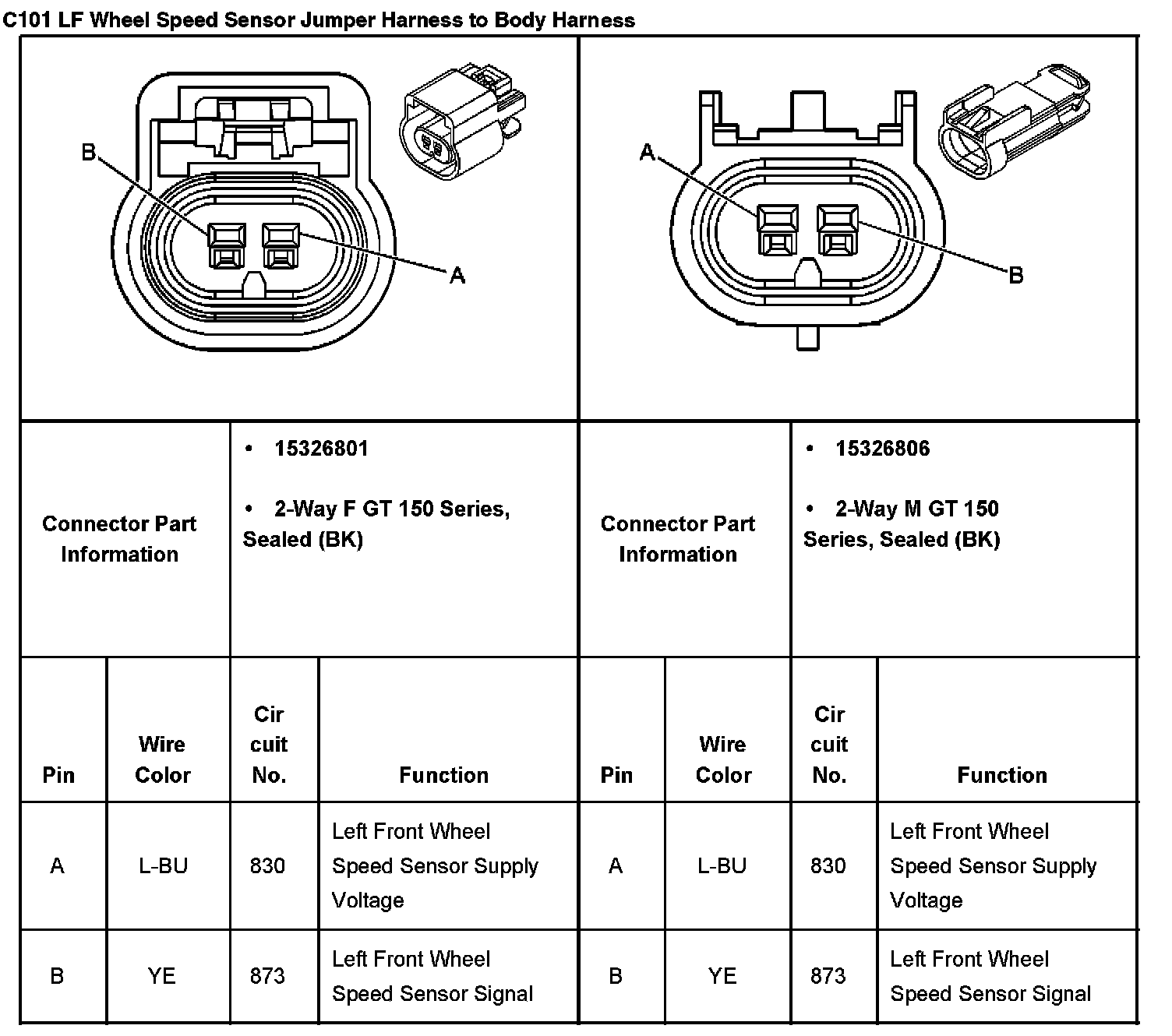

C101 LF Wheel Speed Sensor Jumper Harness To Body Harness:
