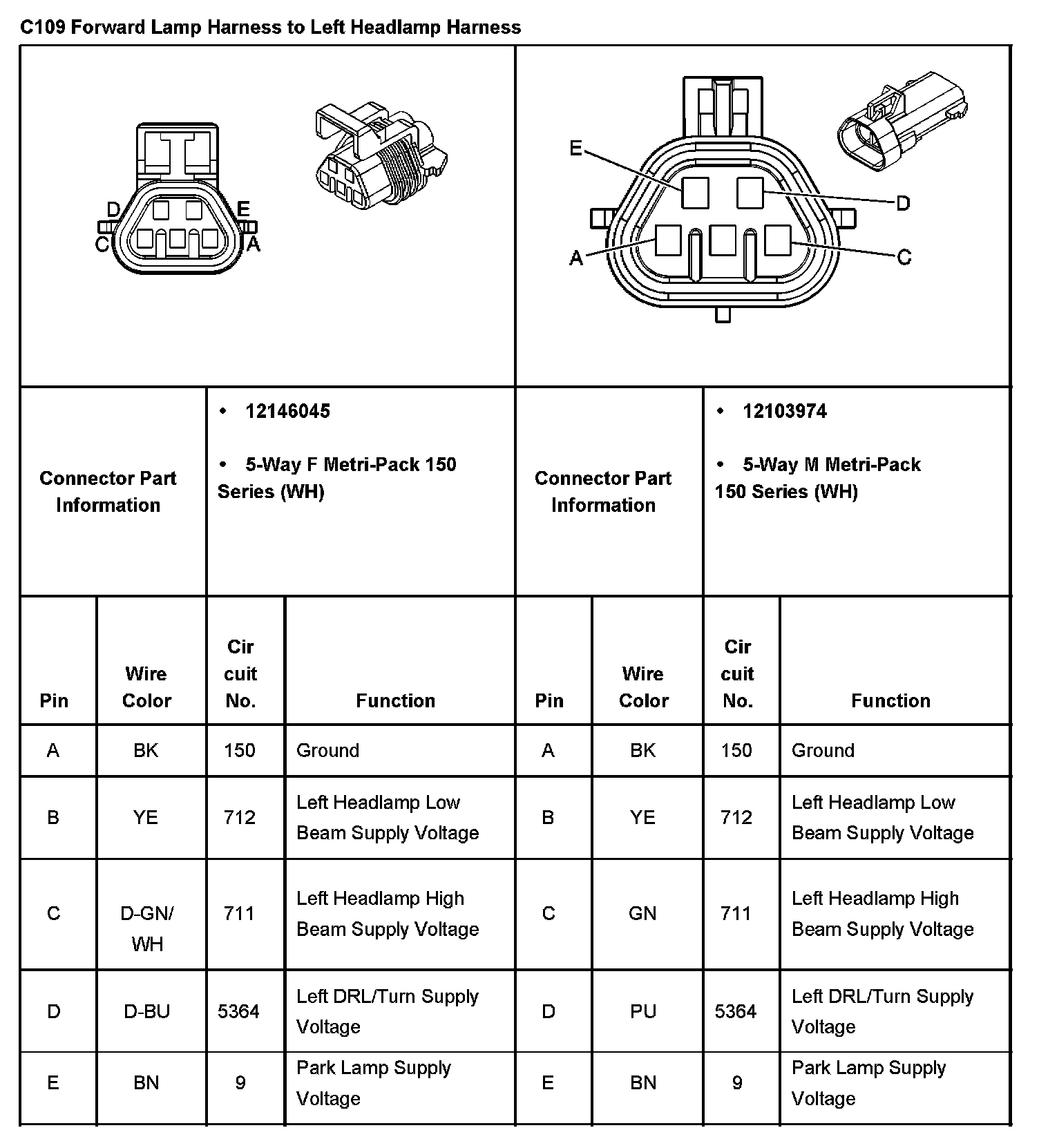

C109 (Forward Lamp Harness to Left Headlamp Harness)
C109 (Forward Lamp Harness to Left Headlamp Harness)
C109 Forward Lamp Harness To Left Headlamp Harness:
