C130 (Engine Harness to Fuel Injector Harness)
C130 (Engine Harness to Fuel Injector Harness)

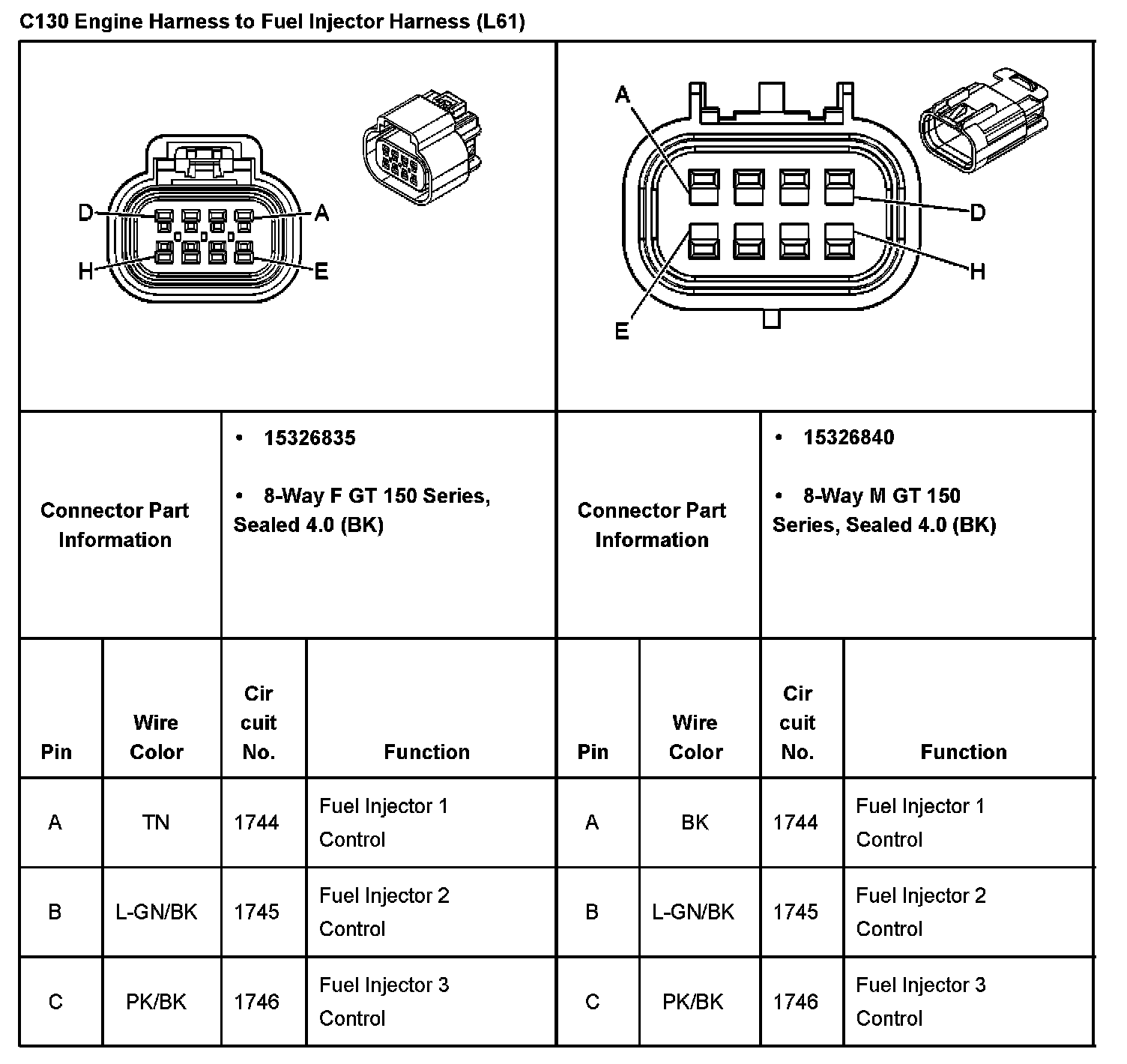

C130 Engine Harness To Fuel Injector Harness Part 1:
C130 Engine Harness To Fuel Injector Harness Part 2:
