C206 (I/P Harness to Body Harness)
C206 (I/P Harness to Body Harness)

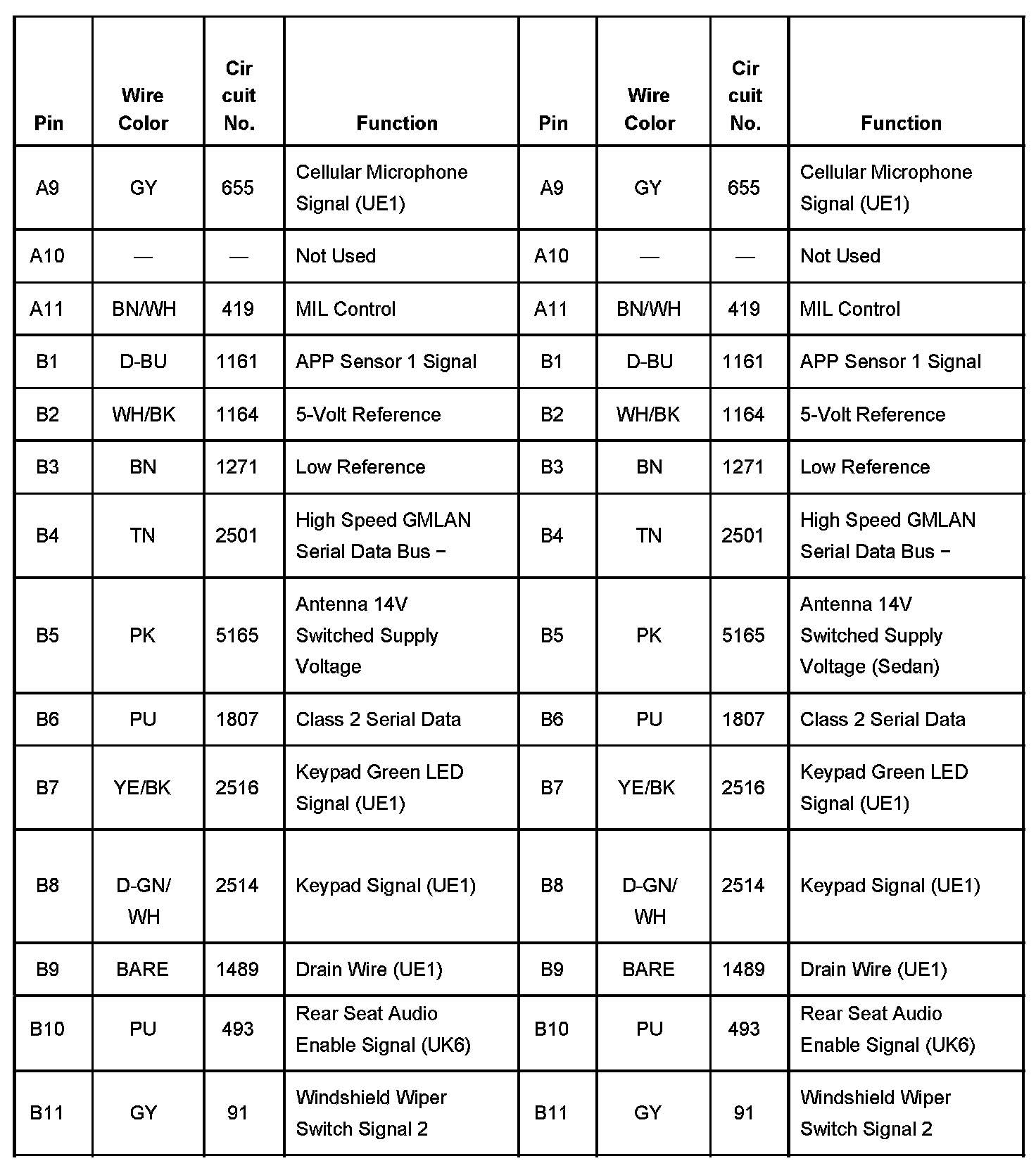

C206 I/P Harness To Body Harness Part 1:
C206 I/P Harness To Body Harness Part 2:
