C207 (I/P Harness to Body Harness)
C207 (I/P Harness to Body Harness)

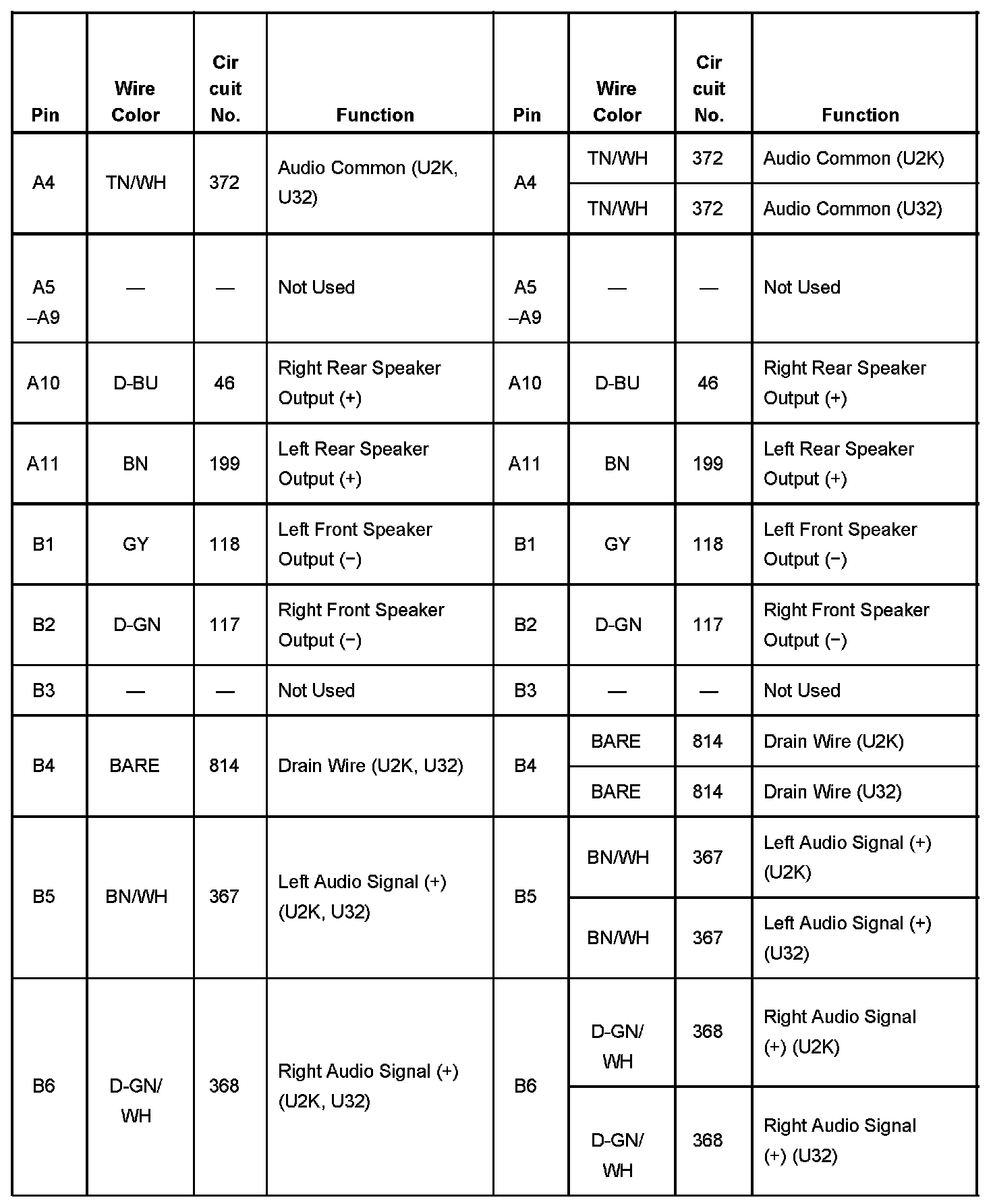

C207 I/P Harness To Body Harness Part 1:
C207 I/P Harness To Body Harness Part 2:
C207 I/P Harness To Body Harness Part 3:
