C214 (Body Harness to Console Harness (With RPO Code UK6, U32))

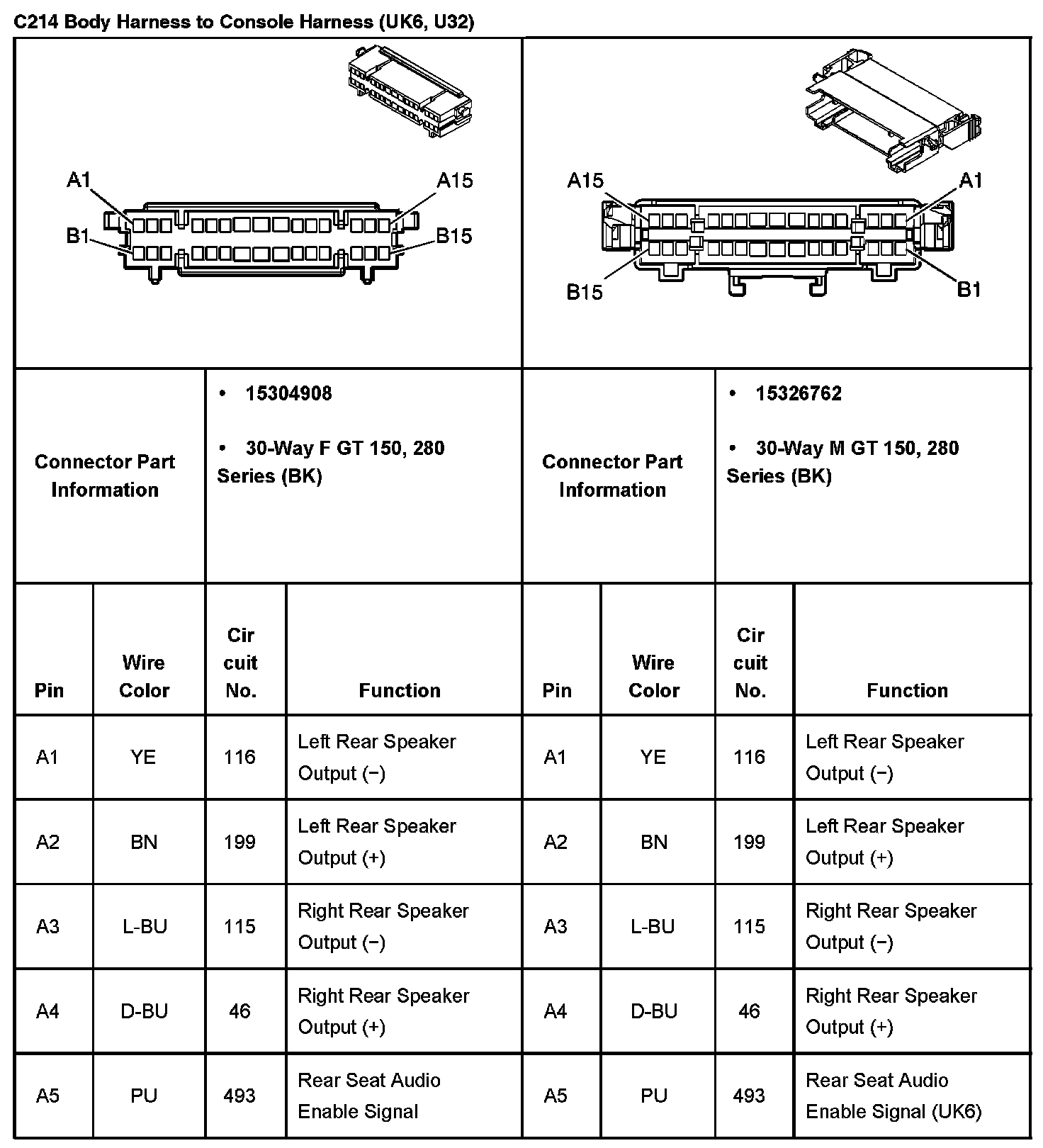

C214 Body Harness To Console Harness (With RPO Code UK6, U32) Part 1:

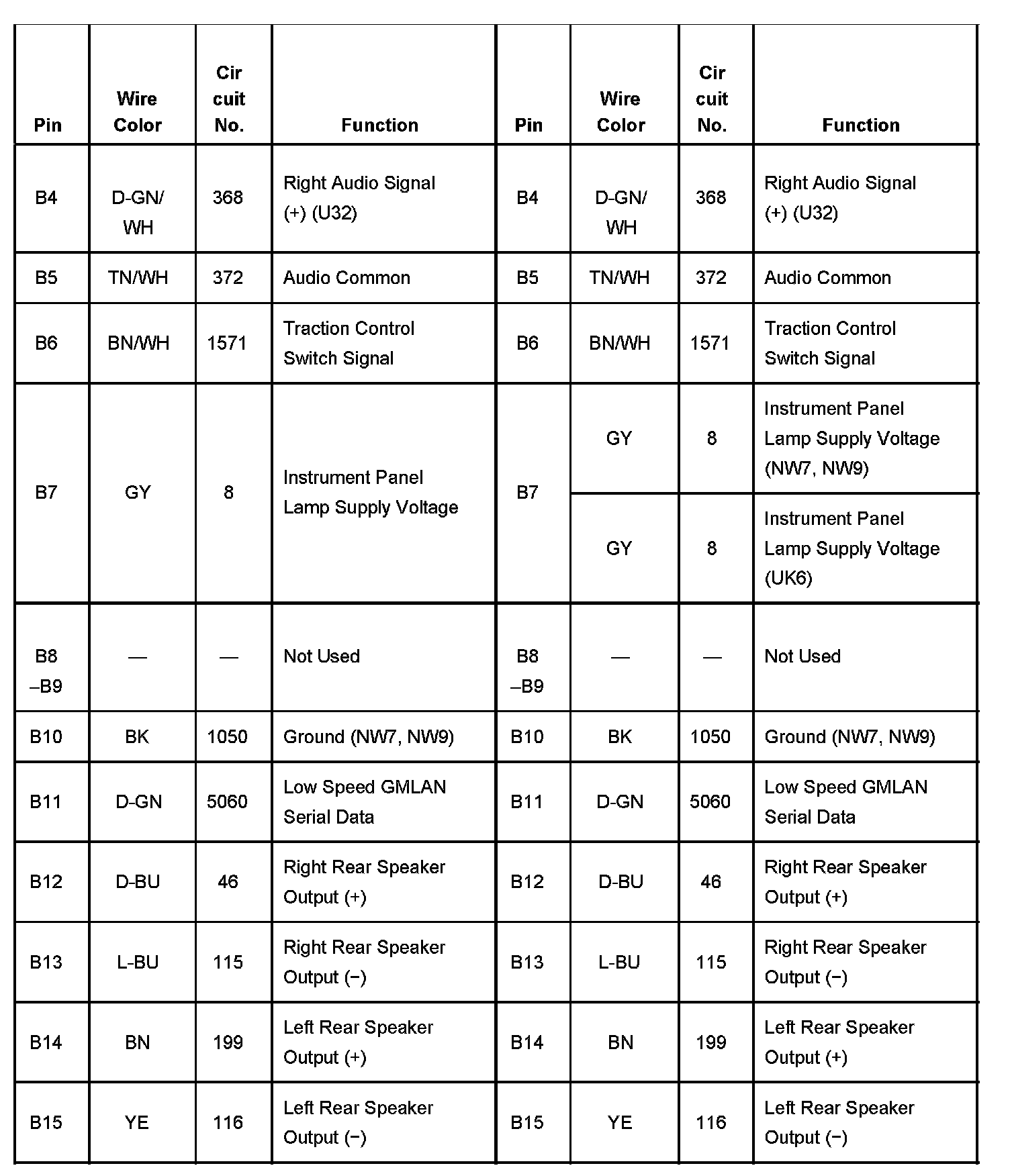

C214 Body Harness To Console Harness (With RPO Code UK6, U32) Part 2:



C214 Body Harness To Console Harness (With RPO Code UK6, U32) Part 3:
