C305 (Body Harness to RF Pretensioner Jumper Harness)
C305 (Body Harness to RF Pretensioner Jumper Harness)

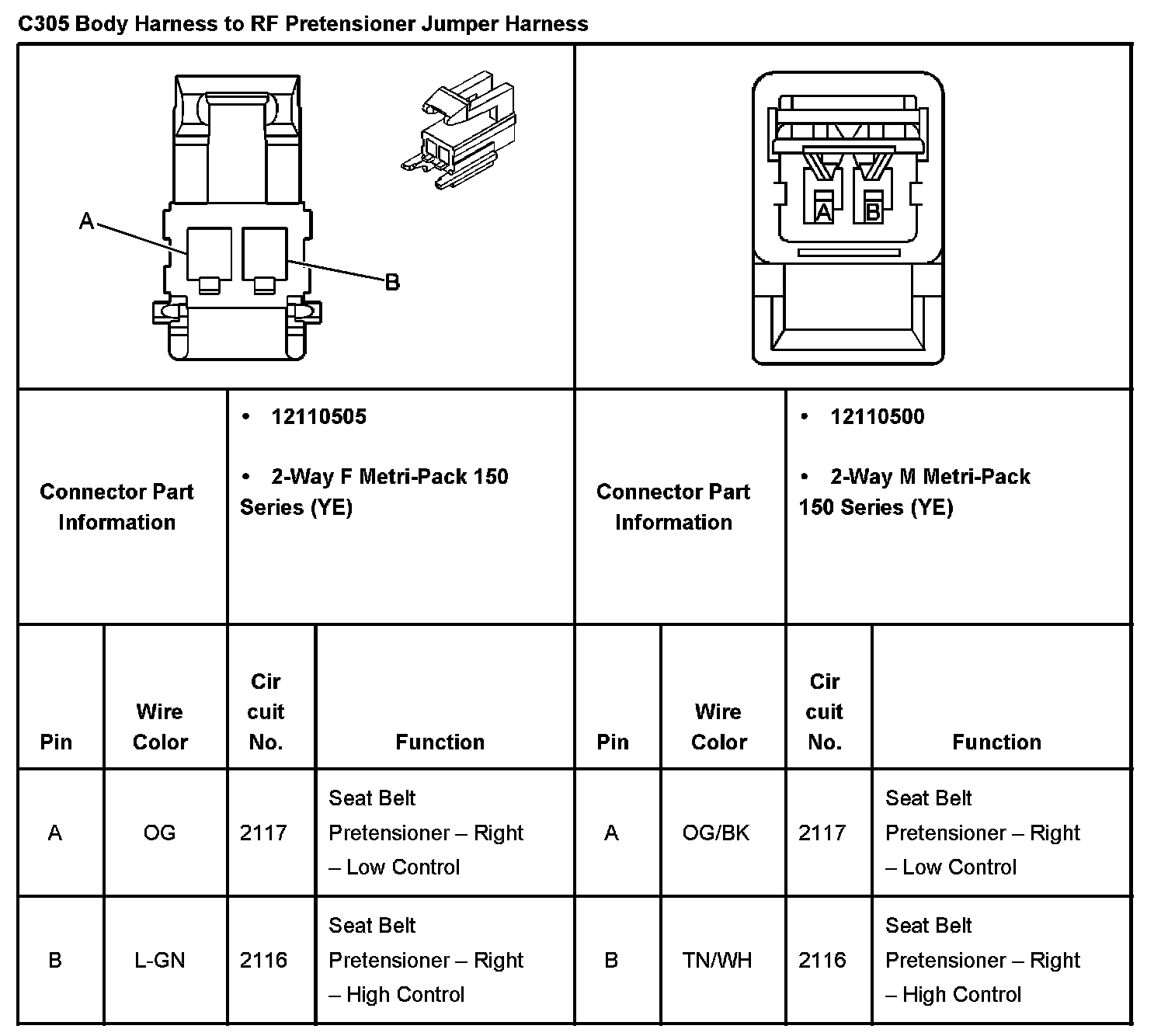

C305 Body Harness To RF Pretensioner Jumper Harness:
