C500 (Body Harness to Left Front Door Harness)

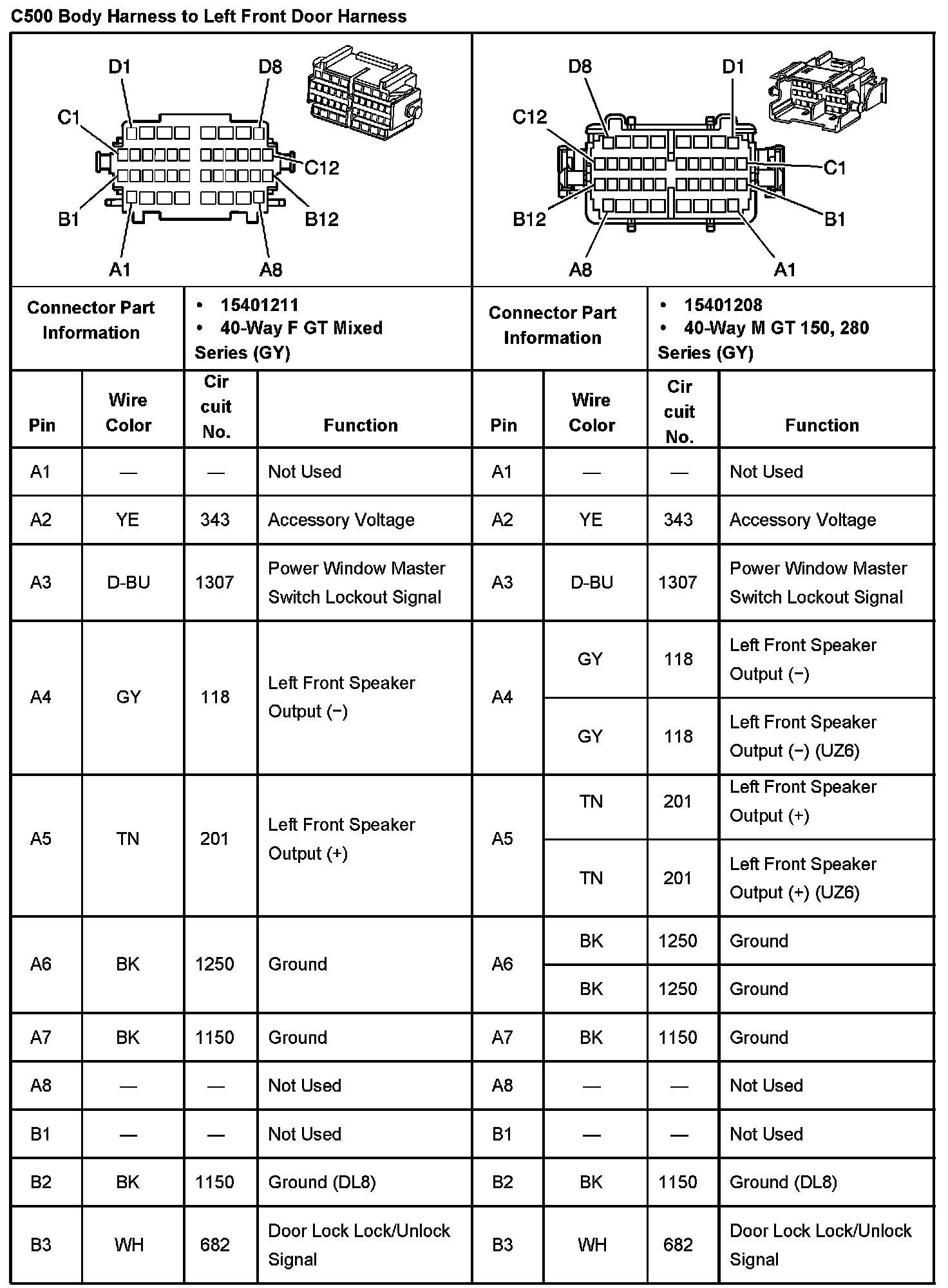

C500 Body Harness To Left Front Door Harness Part 1:

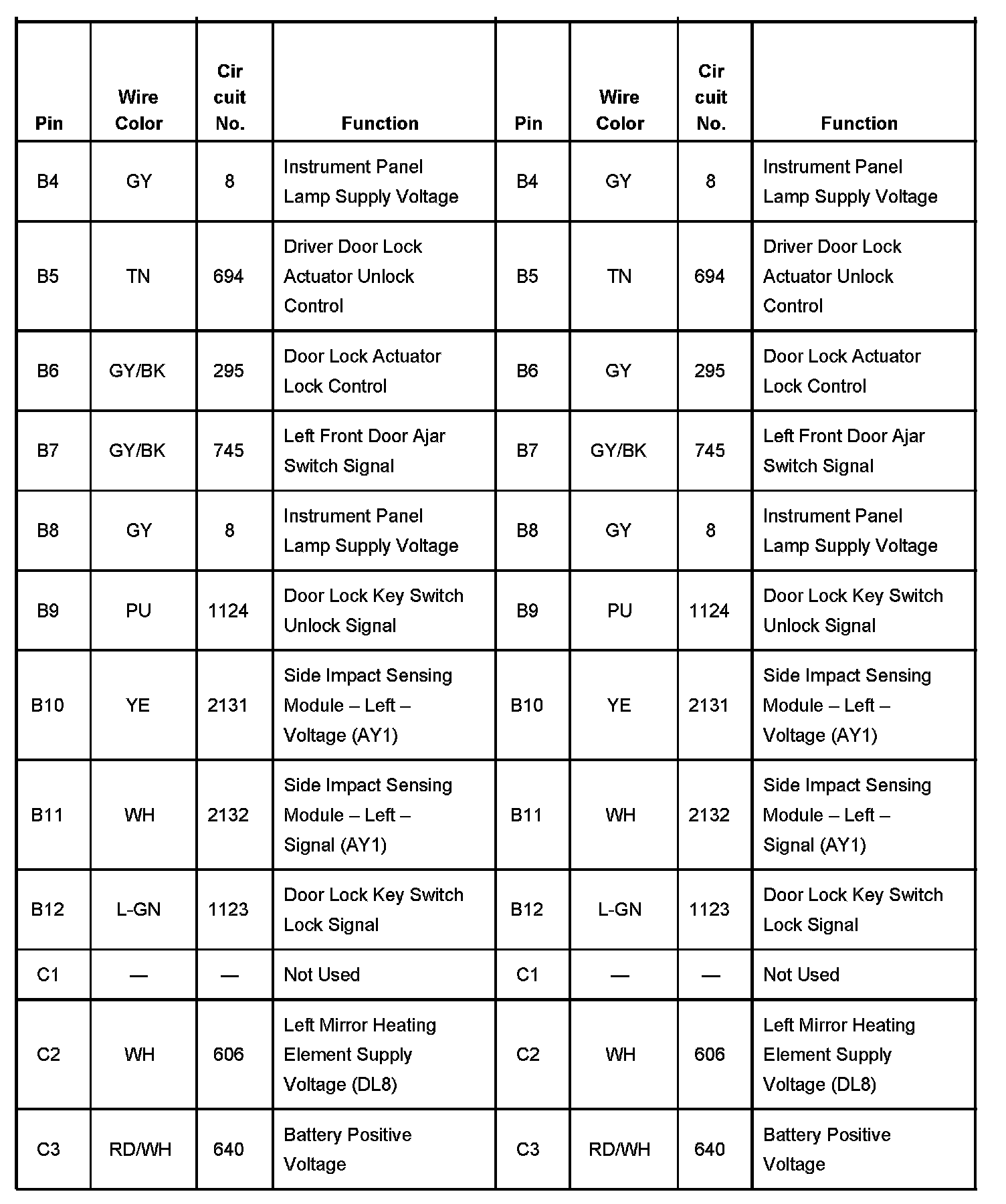

C500 Body Harness To Left Front Door Harness Part 2:

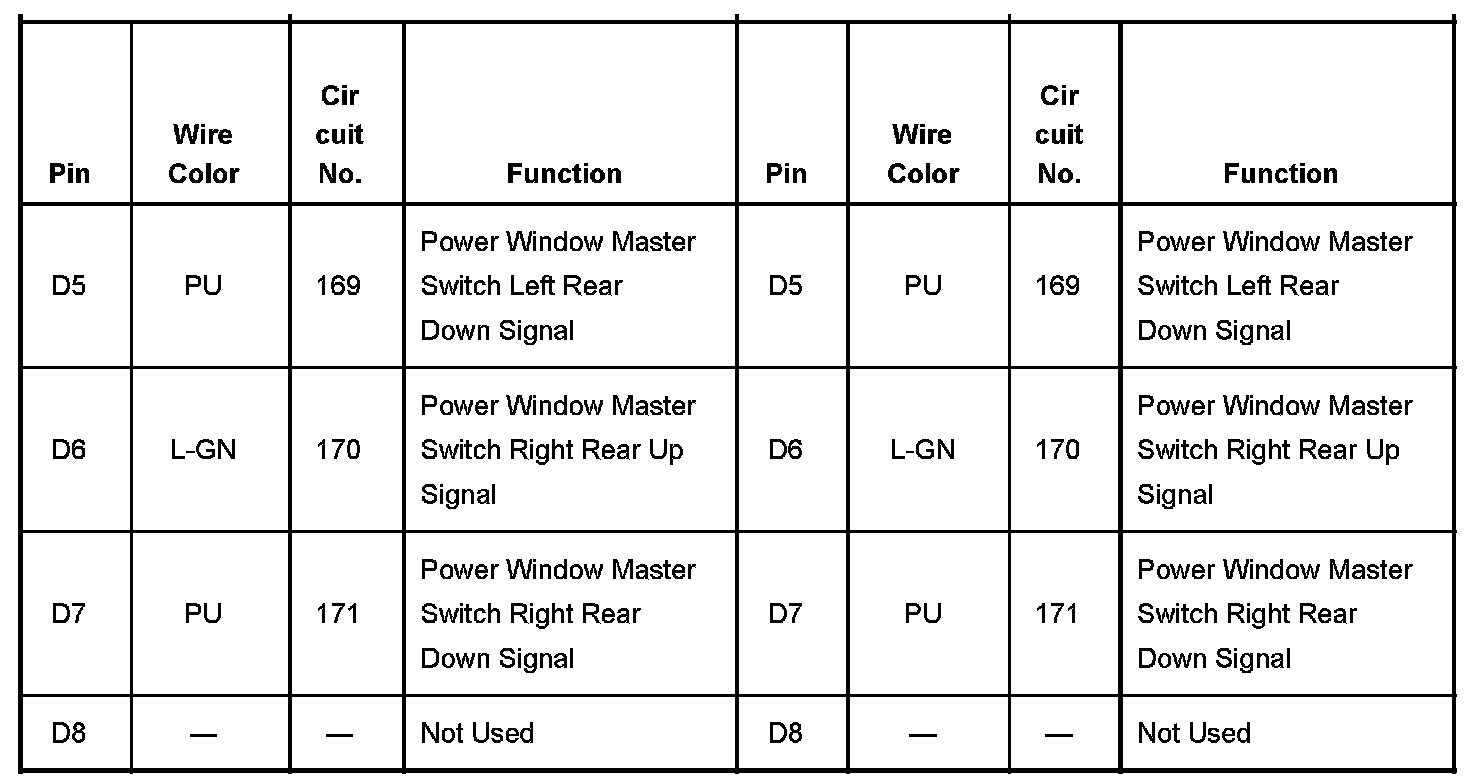

C500 Body Harness To Left Front Door Harness Part 4:
