C800 Body Harness to Right Rear Door Harness

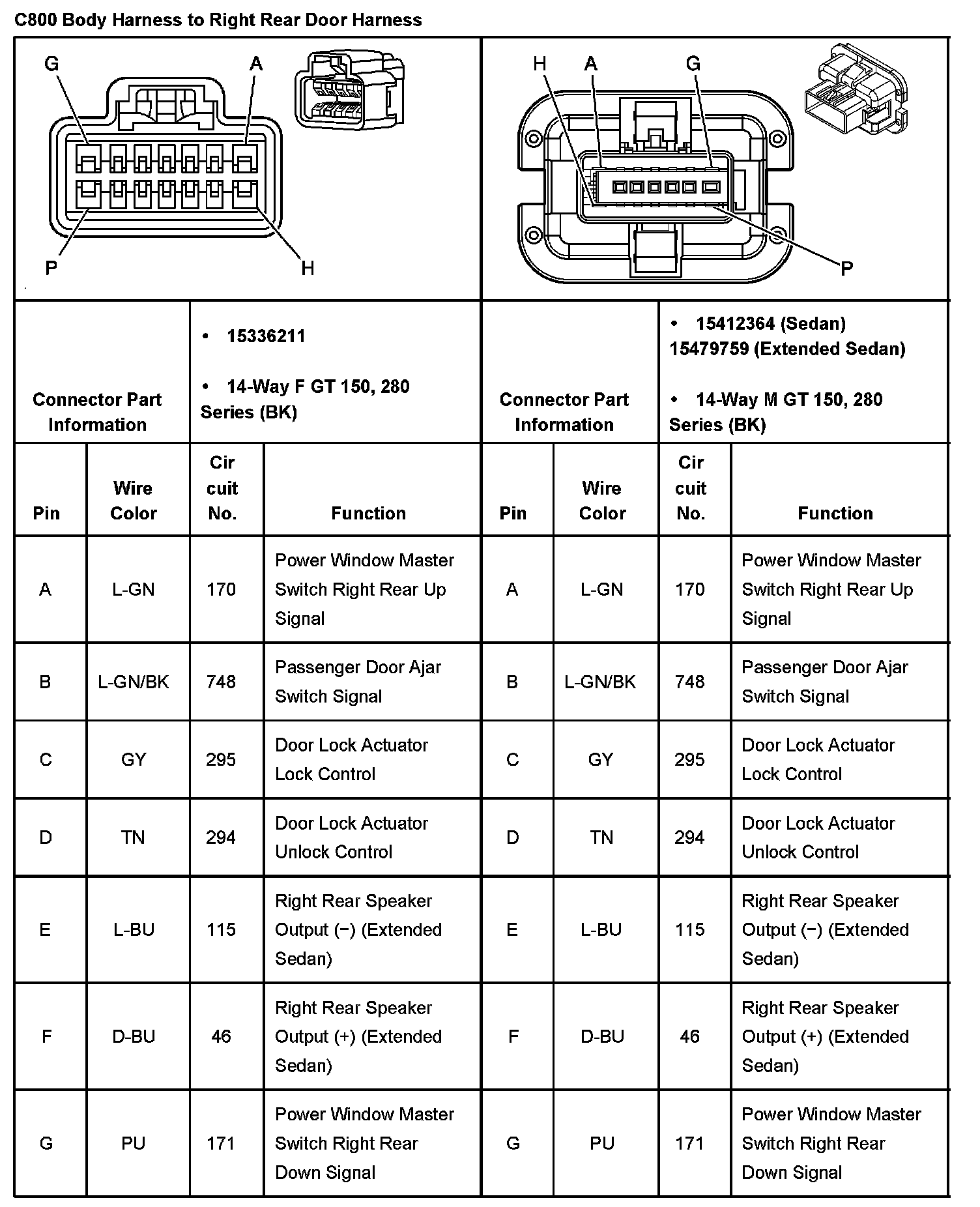

C800 Body Harness To Right Rear Door Harness Part 1:



C800 Body Harness To Right Rear Door Harness Part 2:
