Home >> Chevrolet >> 2004 >> Malibu L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Discharge Air Temperature Sensor / Switch, HVAC >> Air Temp Sensor - Lower

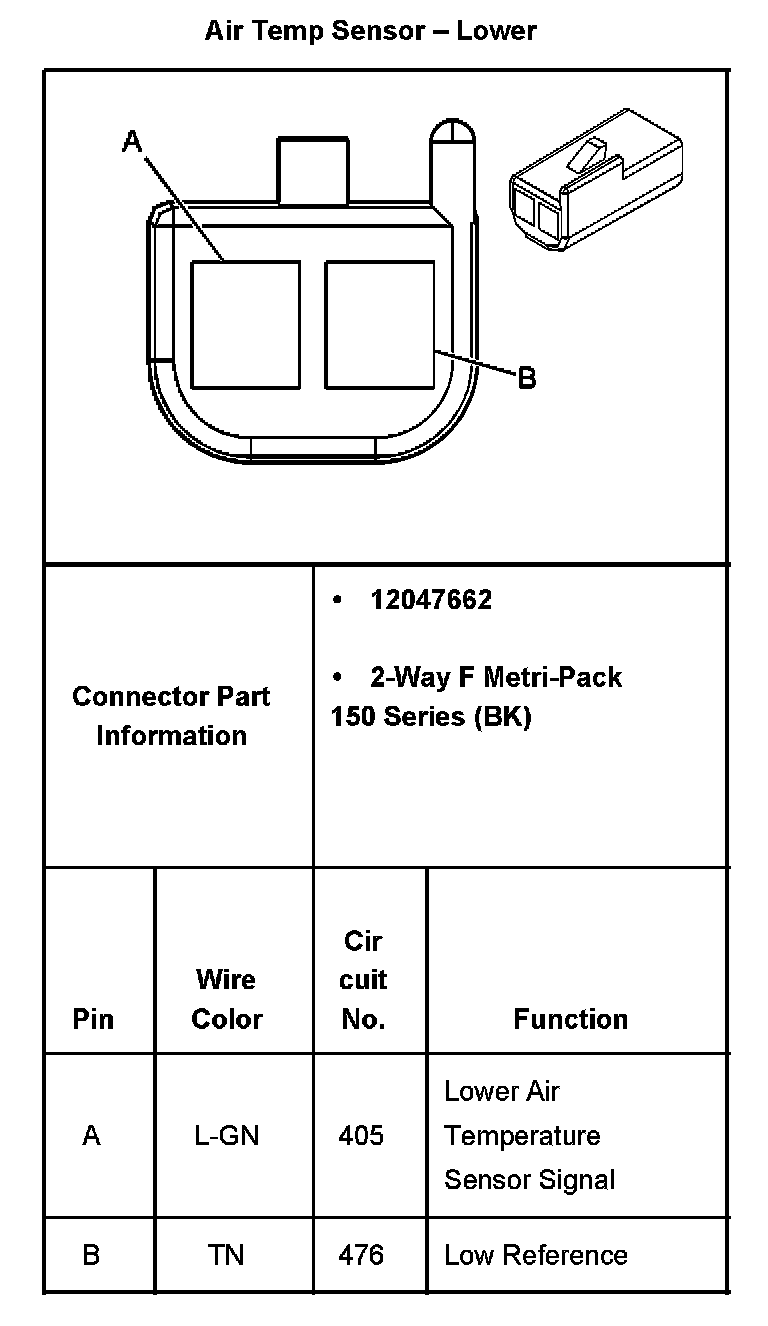

Air Temp Sensor - Lower

Air Temp Sensor - Lower:
