Impact Sensor

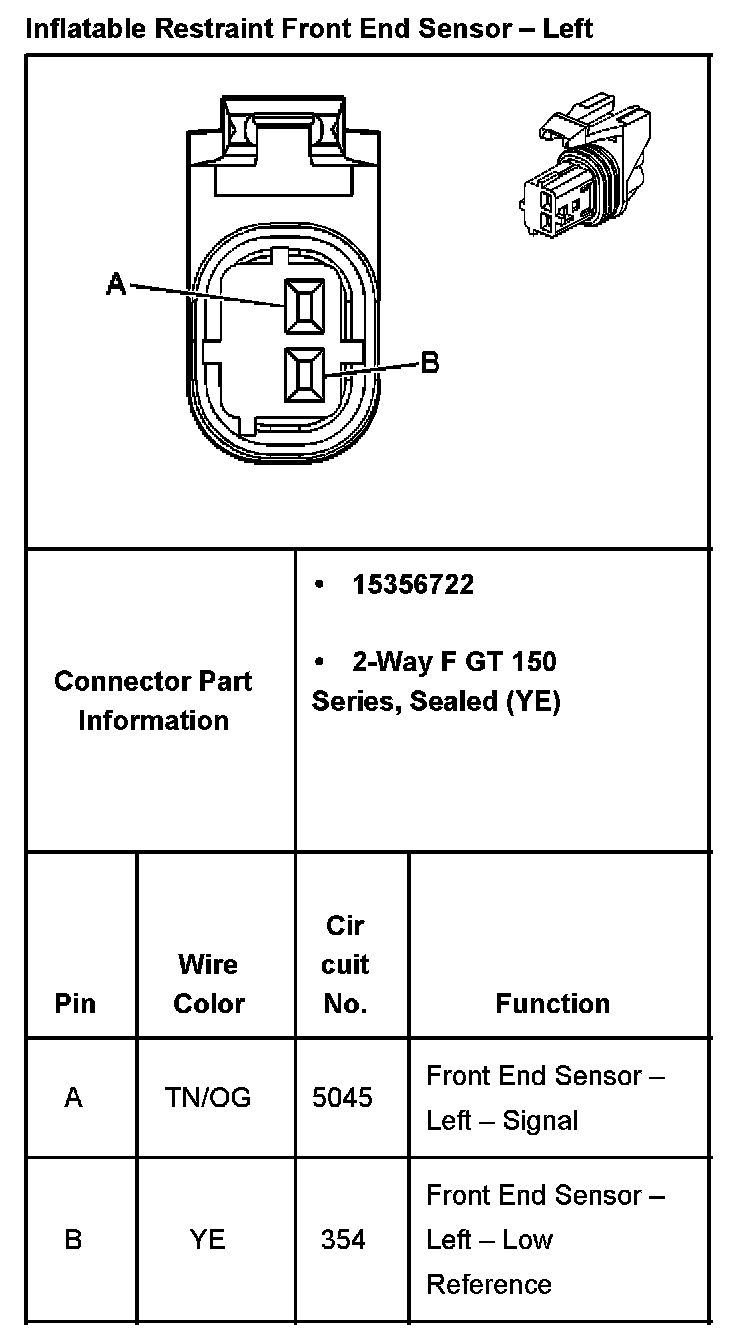

Inflatable Restraint Front End Sensor - Left:



Inflatable Restraint Front End Sensor - Right:

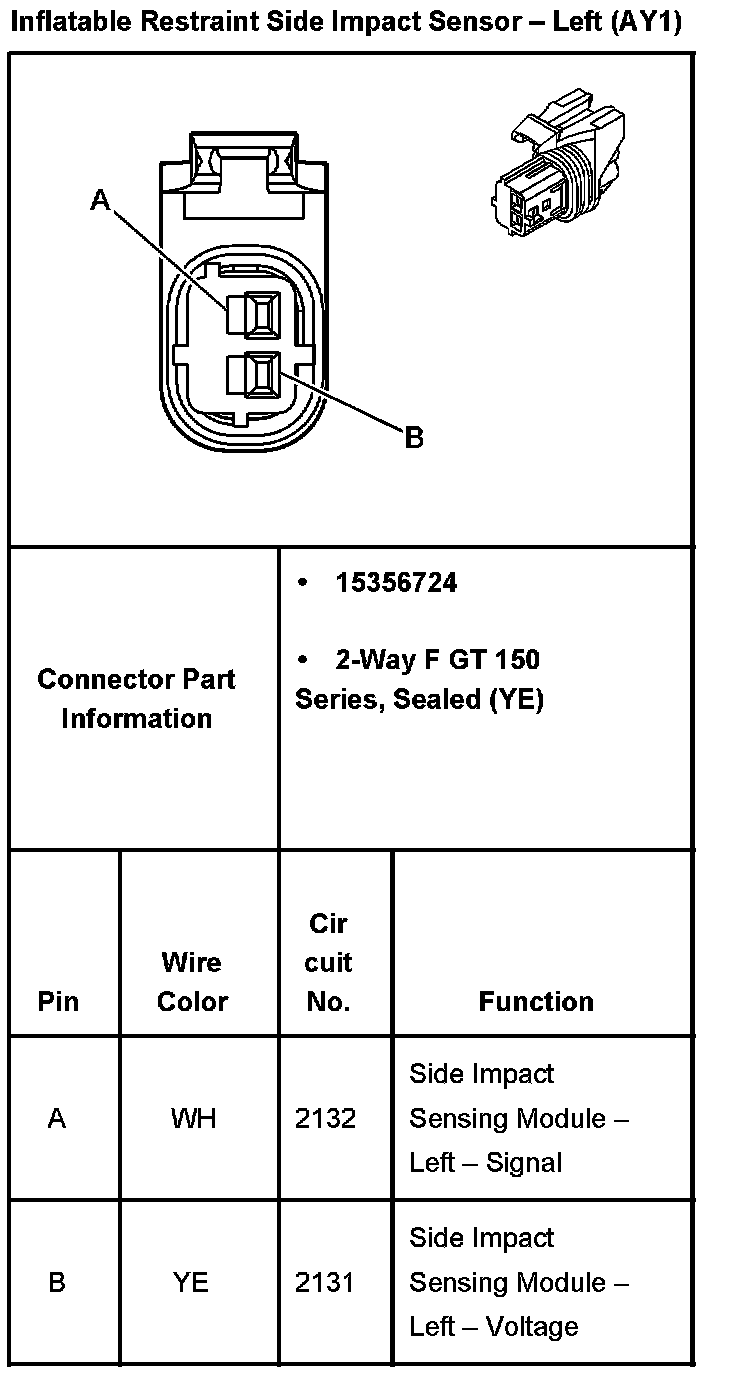

Inflatable Restraint Side Impact Sensor - Left (With RPO Code AY1):

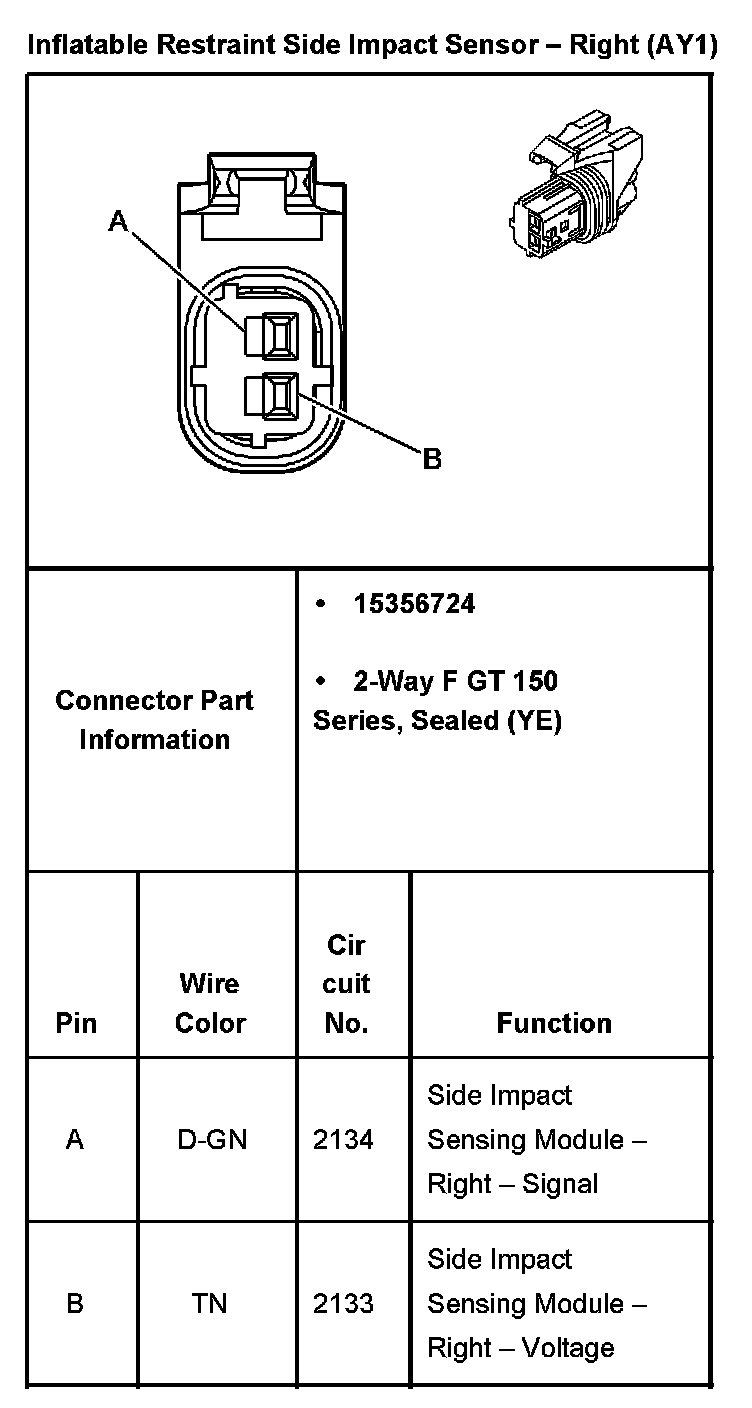

Inflatable Restraint Side Impact Sensor - Right (With RPO Code AY1):
