Antilock Brakes / Traction Control Systems
>>

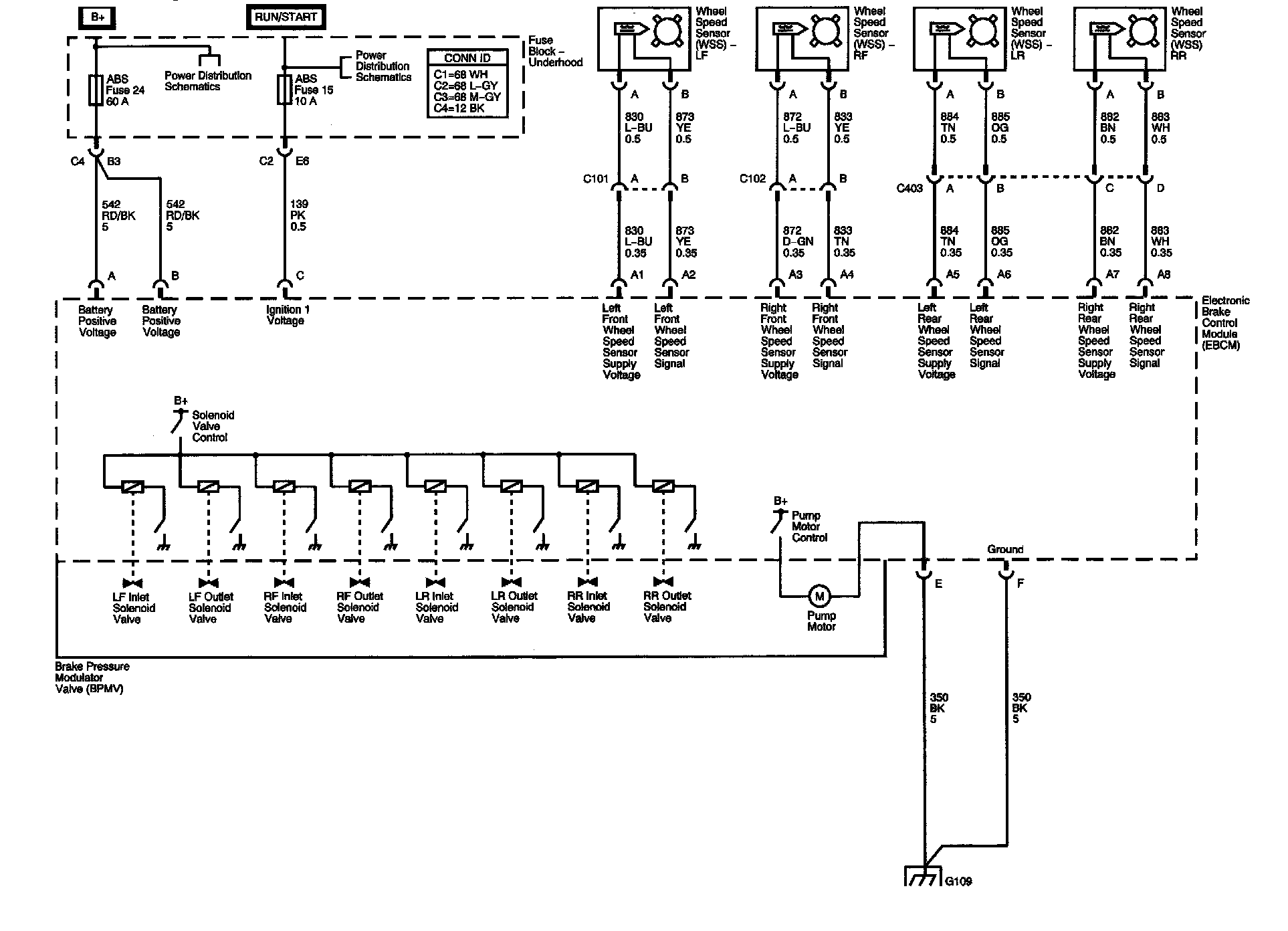

Power, Ground, Brake Pressure Modulator Valve, and Wheel Speed Sensors
Power, Ground, Brake Pressure Modulator Valve, and Wheel Speed Sensors
