Park Neutral Position (PNP Switch)

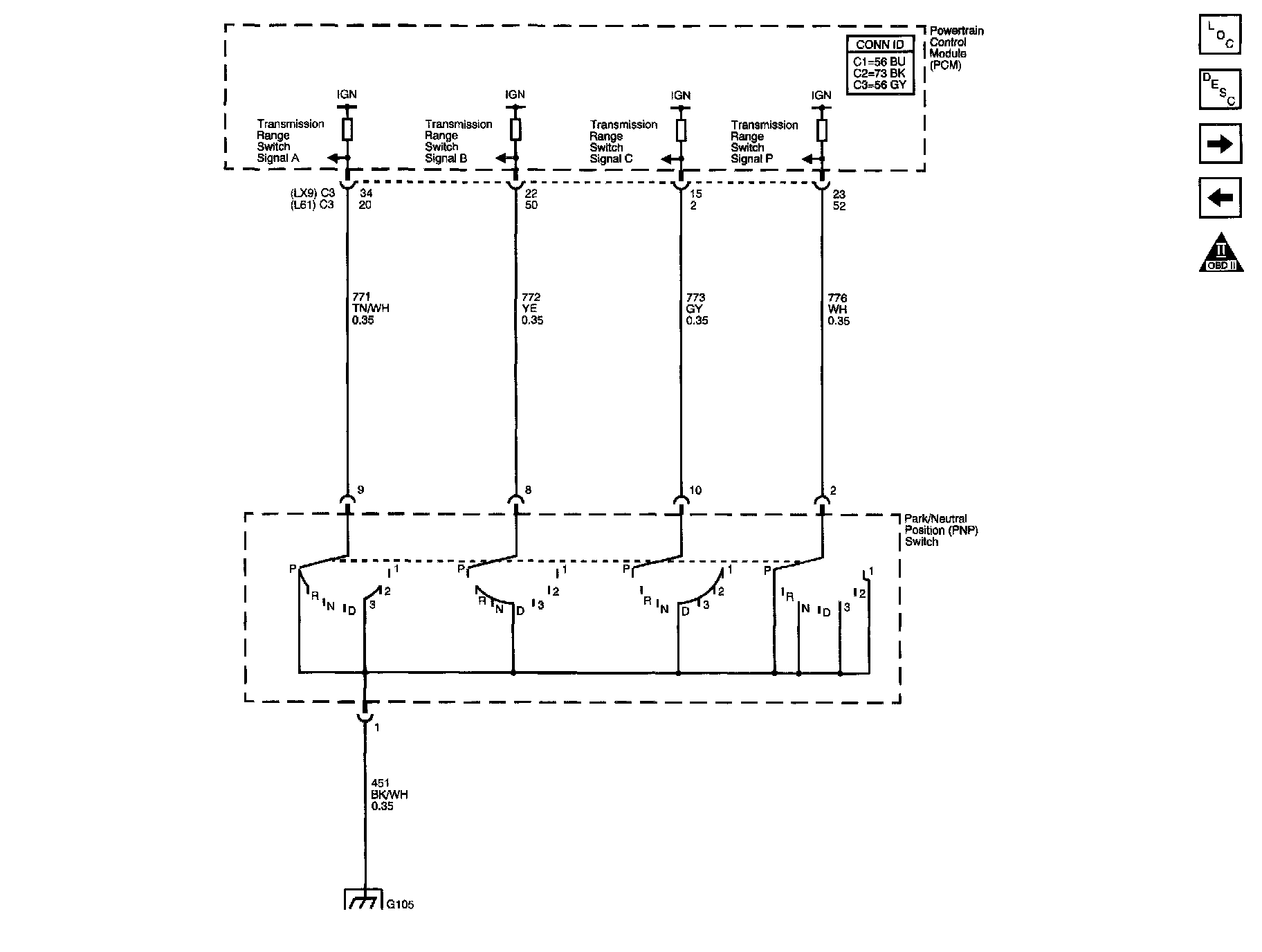

Automatic Transmission Controls Diagrams (Park/Neutral Position Switch):
