Transmission Solenoids and VSS

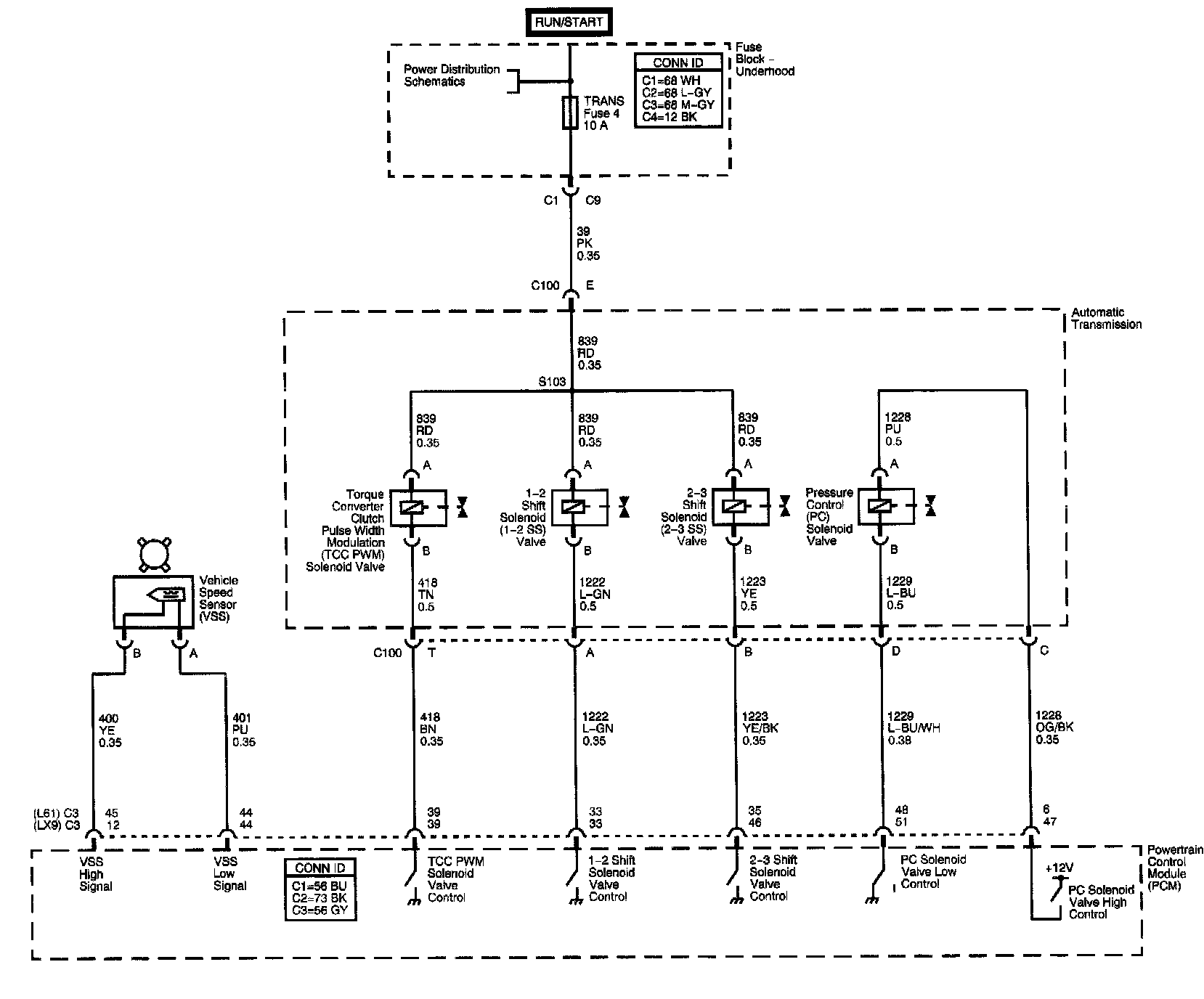

Automatic Transmission Controls Diagrams (Transmission Solenoids and VSS):
