Suspension: Service and Repair

NOTE: The content of this article / image reflects the changes called out by TSB - 05-03-09-006.


Toe Link Replacement

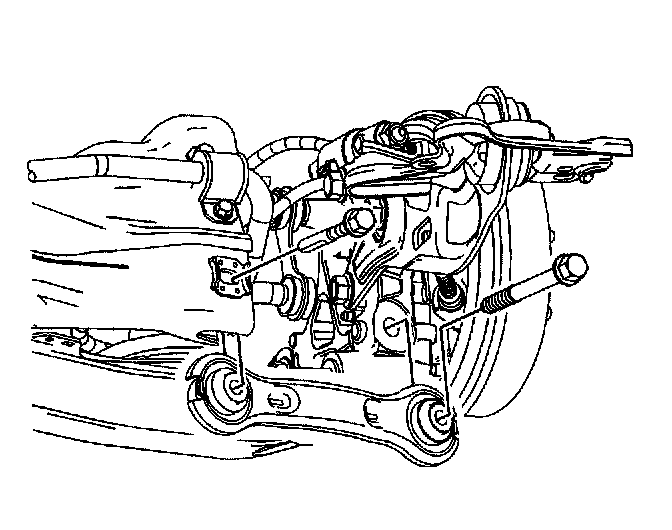

Removal Procedure





1. Raise and support the vehicle.
2. Remove the tire and wheel.
3. Remove the toe link to steering knuckle bolt.
4. Remove the toe link to support assembly bolt and nut.
5. Remove the toe link from the rear support assembly and vehicle.

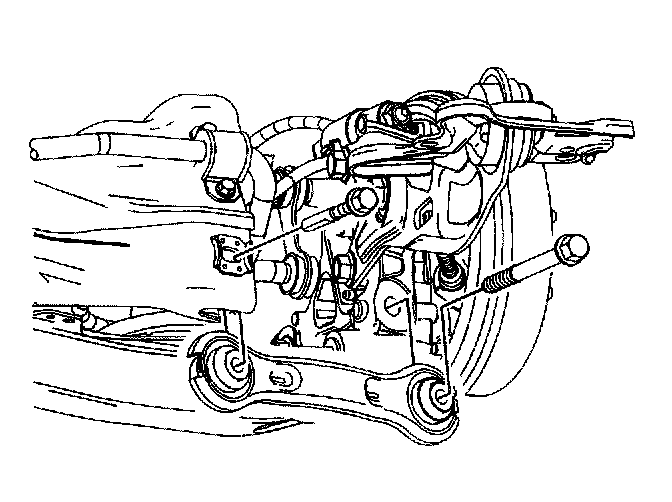

Installation Procedure





1. Install the toe link into the support assembly
2. Loosely install the toe assembly bolt and nut.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the toe link to steering knuckle.
^ Tighten the bolt and nut to First pass: 110 Nm (81 ft. lbs.). Final pass: + 70° (degrees).
4. Finish tightening the toe link to support assembly bolt.
^ Tighten the bolt and nut to 110 Nm (81 ft. lbs.)
5. Install the tire and wheel.
6. Lower the vehicle.
7. Adjust the rear toe.
