Glove Compartment: Service and Repair



Compartment Replacement - Instrument Panel (I/P)

Removal Procedure




1. Remove the instrument panel (I/P) right outer trim cover.
2. Remove the right closeout panel.

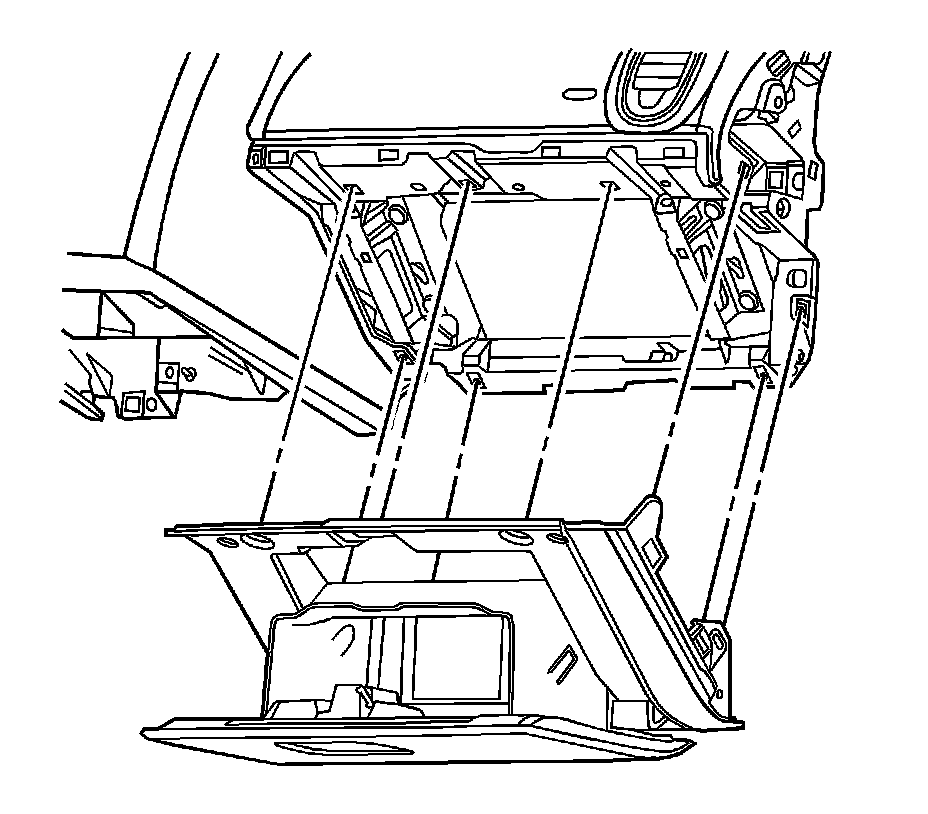

3. Remove the I/P compartment assembly screws.
4. Remove the I/P compartment assembly.

Installation Procedure




1. Install the I/P compartment assembly.

Notice: Refer to Fastener Notice in Service Precautions.

2. Tighten the I/P compartment assembly screws.

Tighten the screws to 2.5 N.m (22 lb in).

3. Install the right closeout panel.
4. Install the I/P right outer trim cover.
