Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2004
>>
Malibu V6-3.5L VIN 8
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C100 - C130
>>
C100 (Engine Harness to Automatic Transmission Harness)
C100 (Engine Harness to Automatic Transmission Harness)

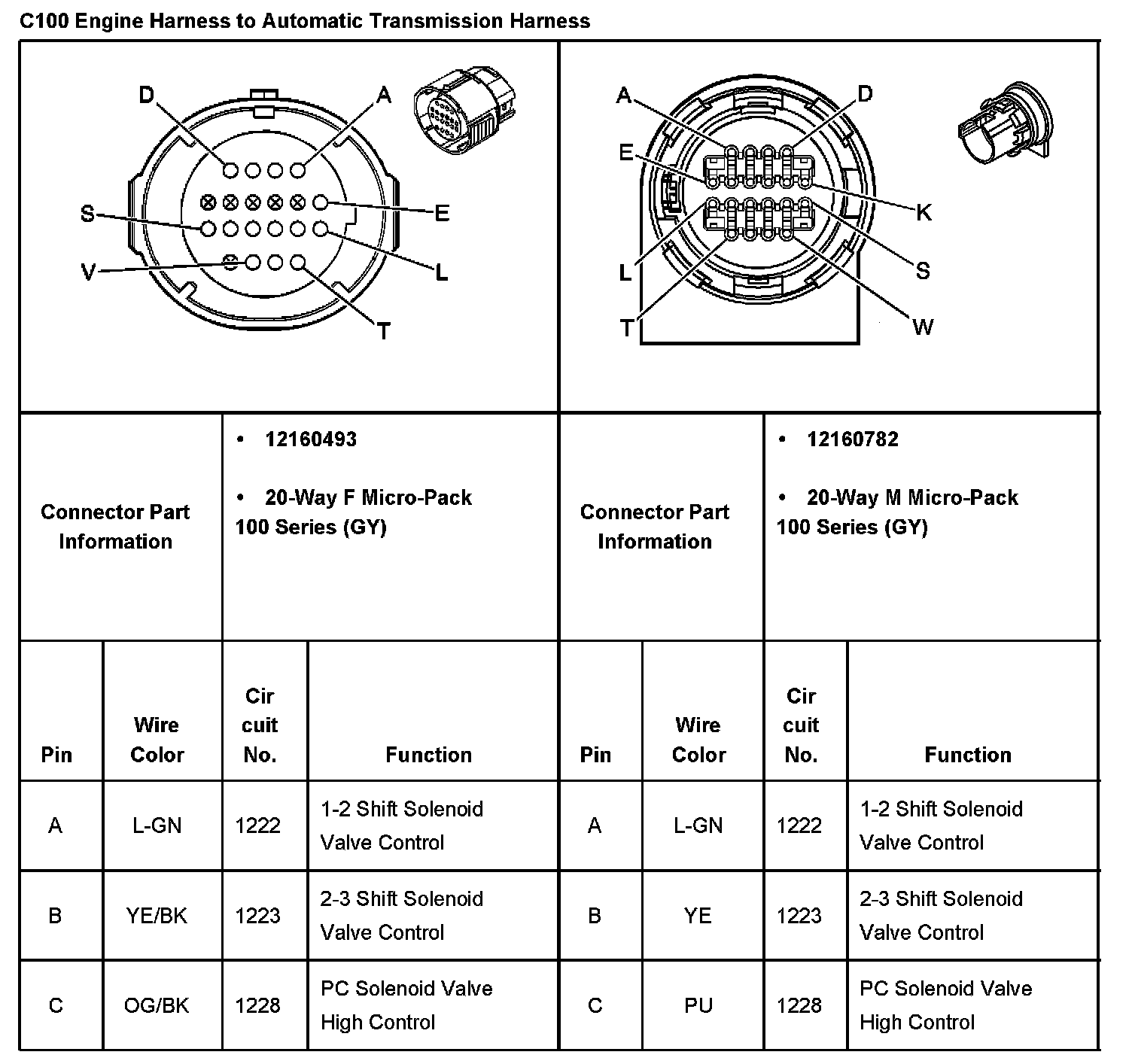

C100 Engine Harness To Automatic Transmission Harness Part 1:

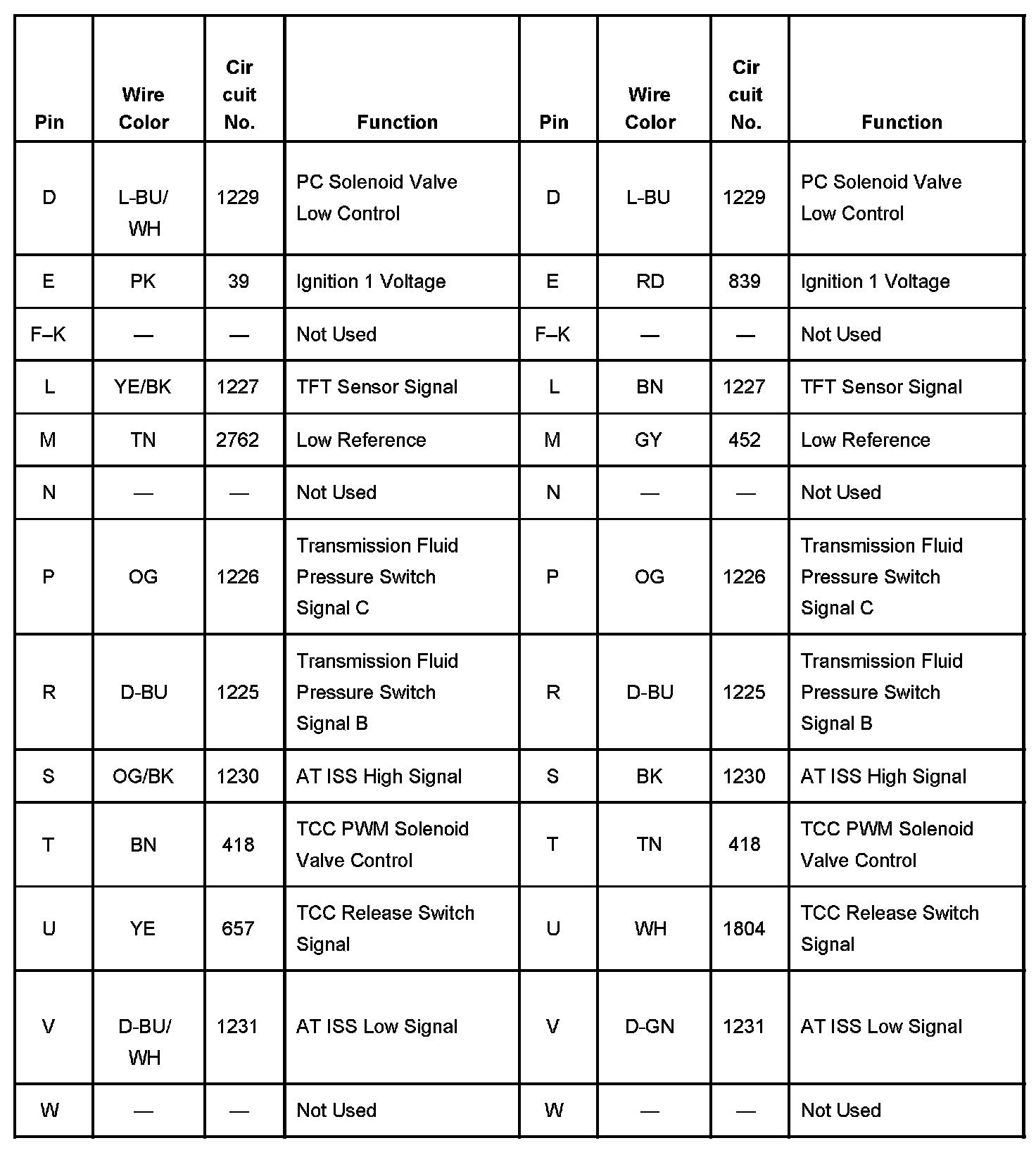

C100 Engine Harness To Automatic Transmission Harness Part 2:
