C214 (Body Harness To Console Harness (W/O RPO Code UK6, U32))
C214 (Body Harness To Console Harness (W/O RPO Code UK6, U32))

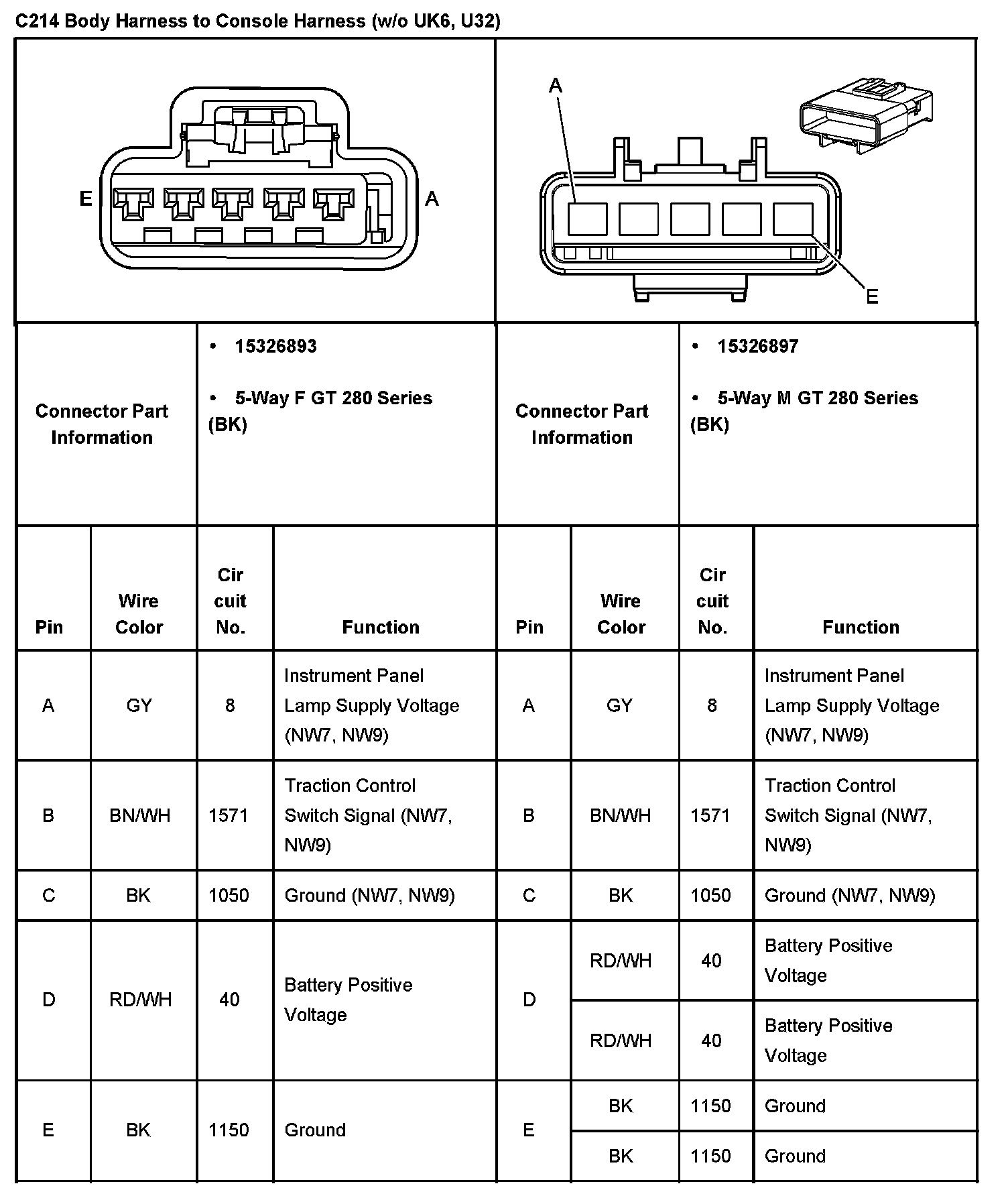

C214 Body Harness To Console Harness (Without RPO Code UK6, U32):
