C320 (Body Harness to R Infl Side Module Jumper Harness)
C320 (Body Harness to R Infl Side Module Jumper Harness)

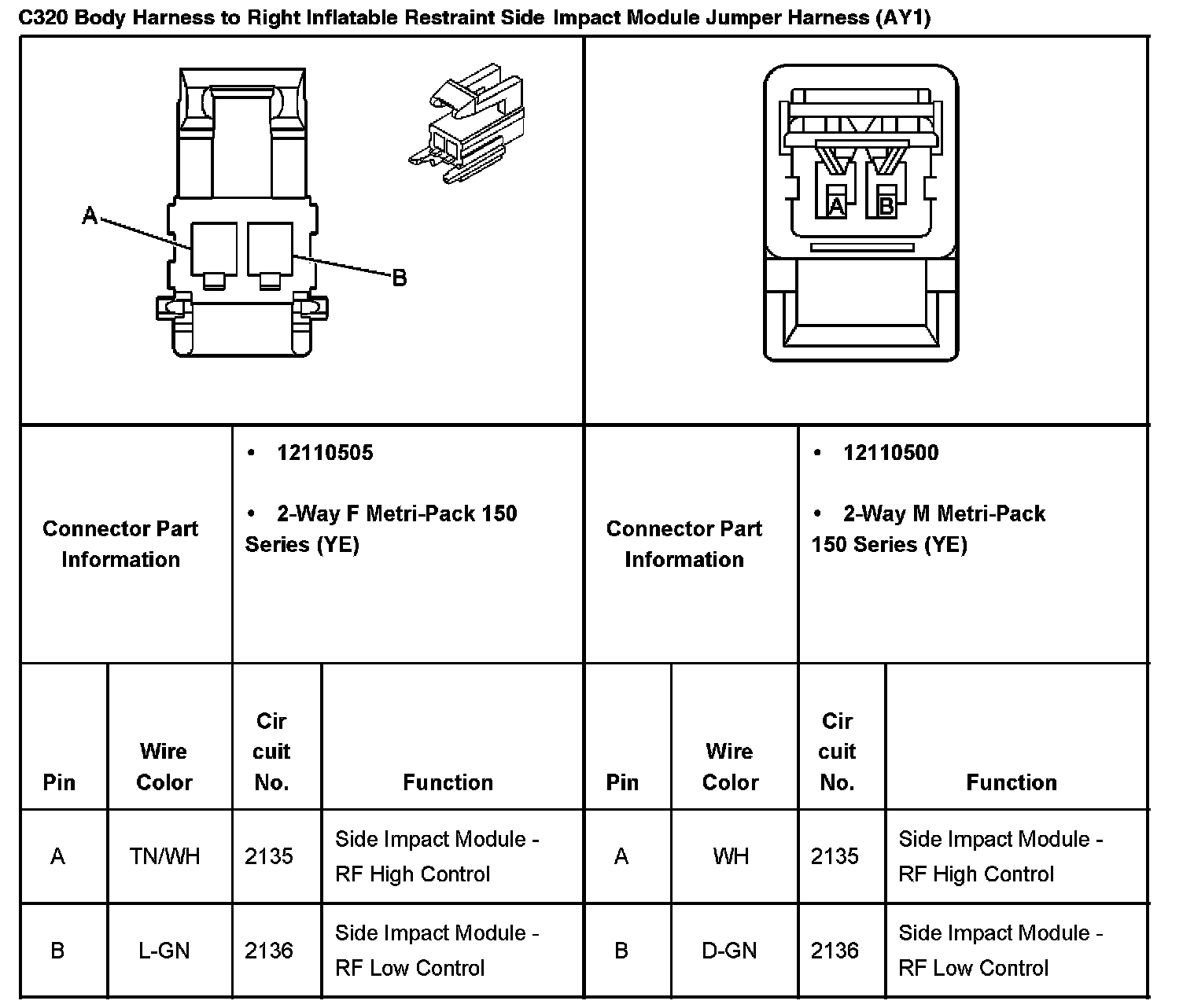

C320 Body Harness To Right Inflatable Restraint Side Impact Module Jumper Harness:
