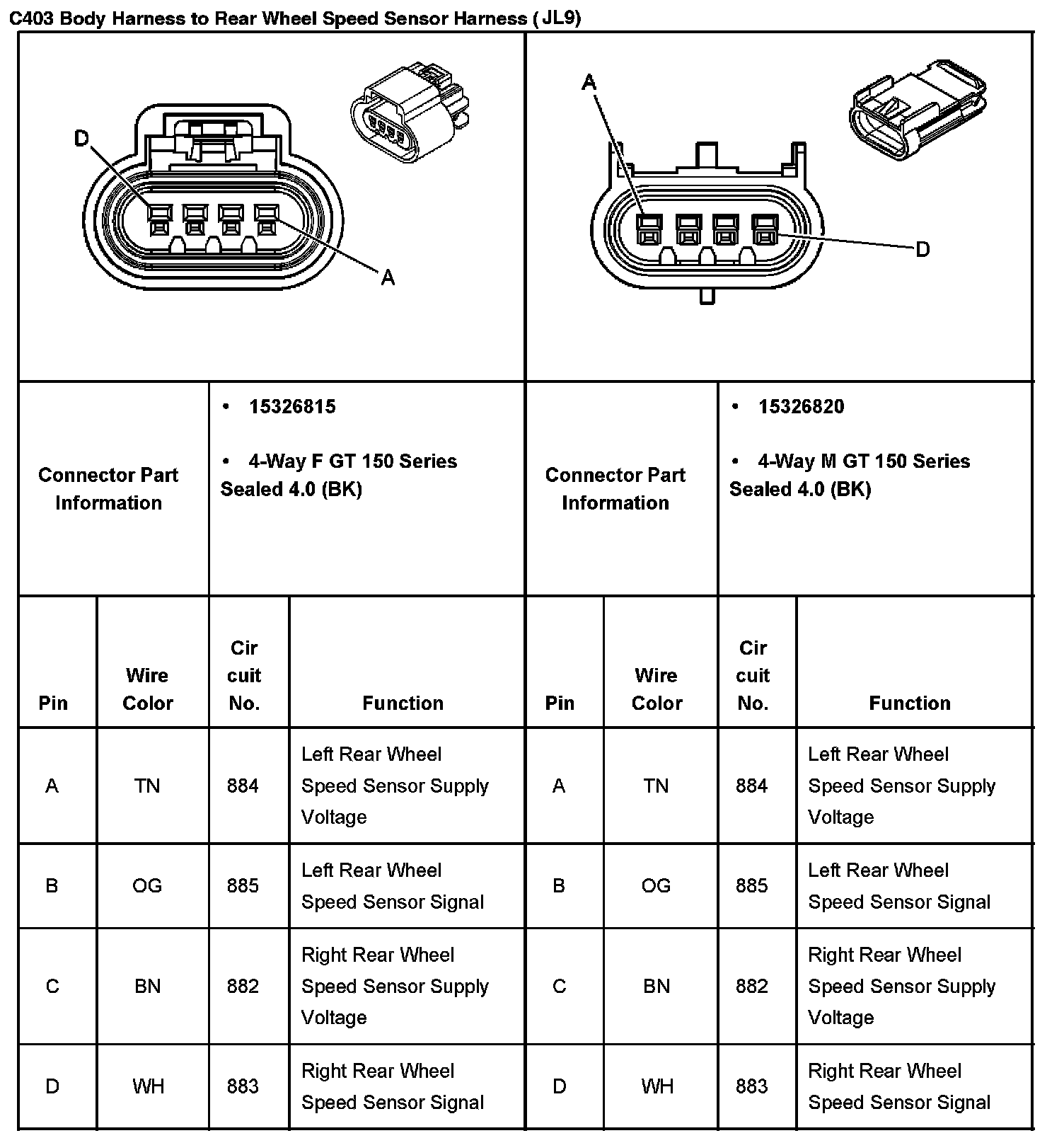

C403 (Body Harness to Rear Wheel Speed Sensor Harness)
C403 (Body Harness to Rear Wheel Speed Sensor Harness)
C403 Body Harness To Rear Wheel Speed Sensor Harness:
