C413 (Fuel Sender Harness to Body Harness)
C413 (Fuel Sender Harness to Body Harness)

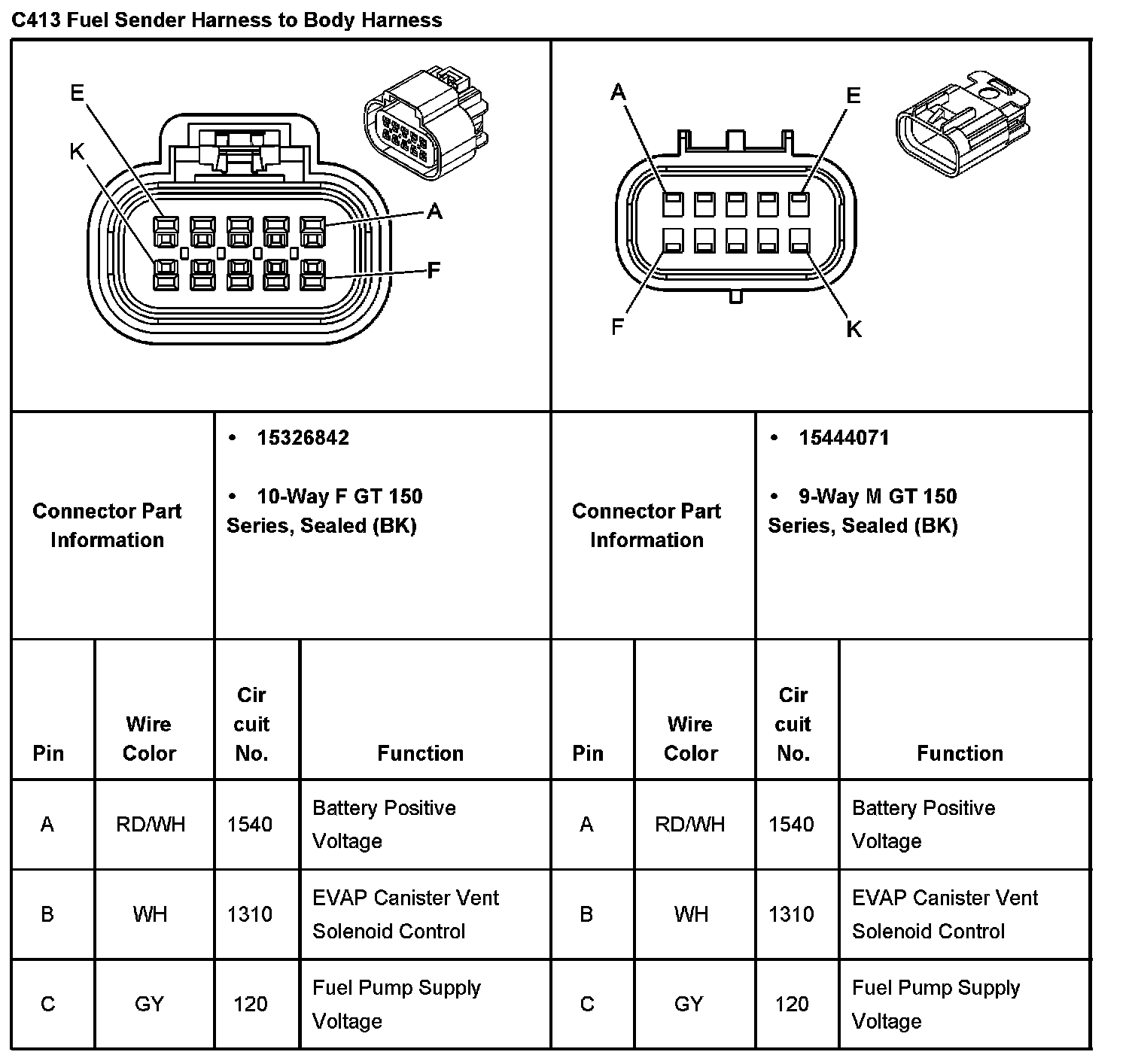

C413 Fuel Sender Harness To Body Harness Part 1:

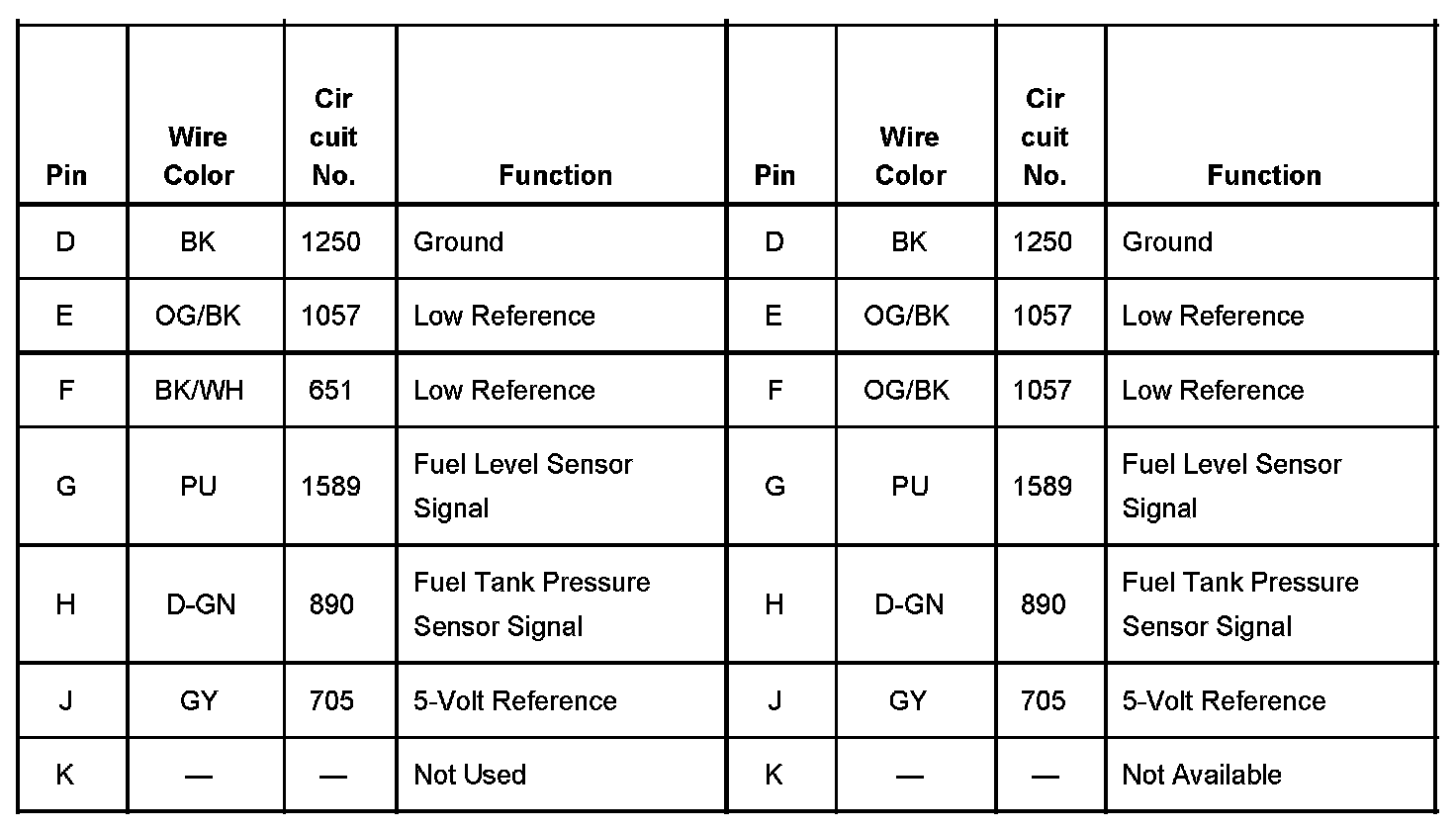

C413 Fuel Sender Harness To Body Harness Part 2:
