Discharge Air Temperature Sensor / Switch, HVAC
>>

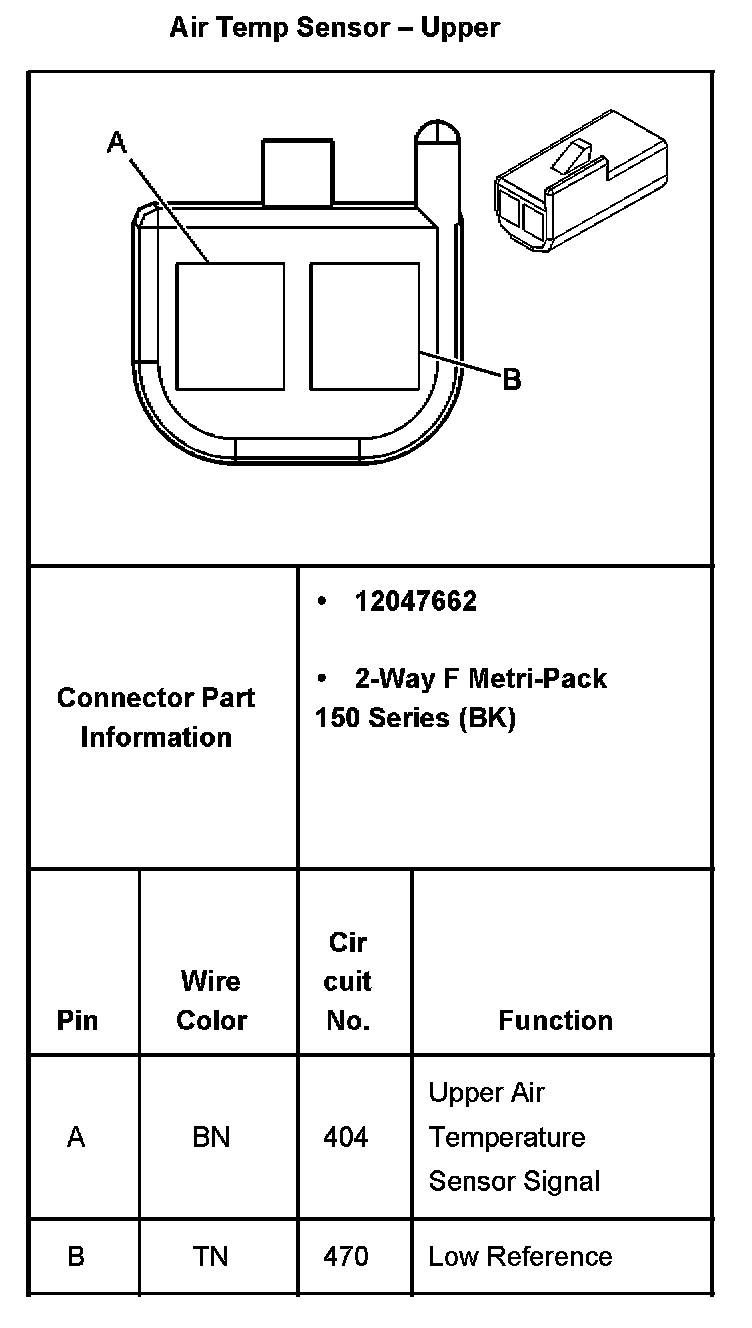

Air Temp Sensor - Upper
Air Temp Sensor - Upper
Air Temp Sensor - Upper:
