Heated Seat Control Module - Passenger

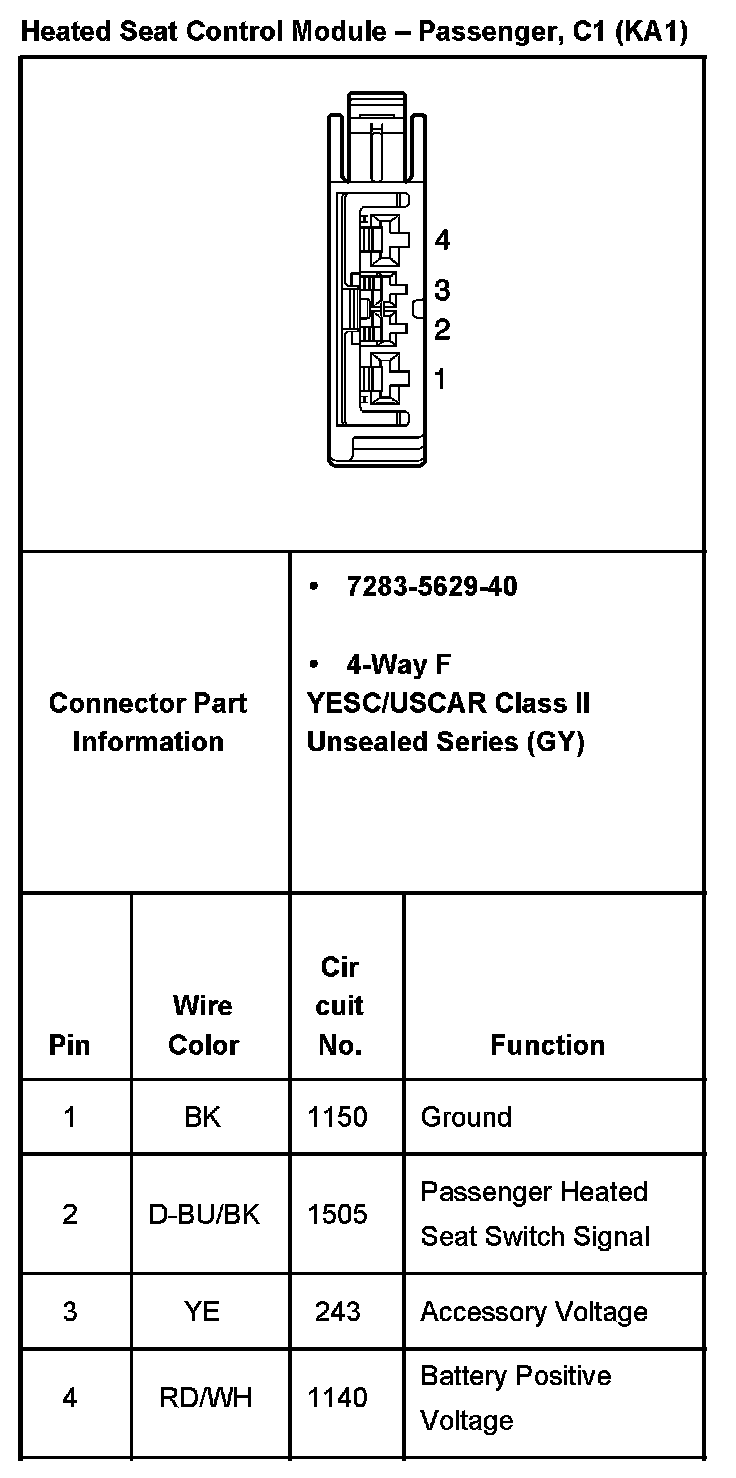

Heated Seat Control Module - Passenger, C1 (With RPO Code KA1):



Heated Seat Control Module - Passenger, C2 (With RPO Code KA1):



Heated Seat Control Module - Passenger, C3 (With RPO Code KA1):
