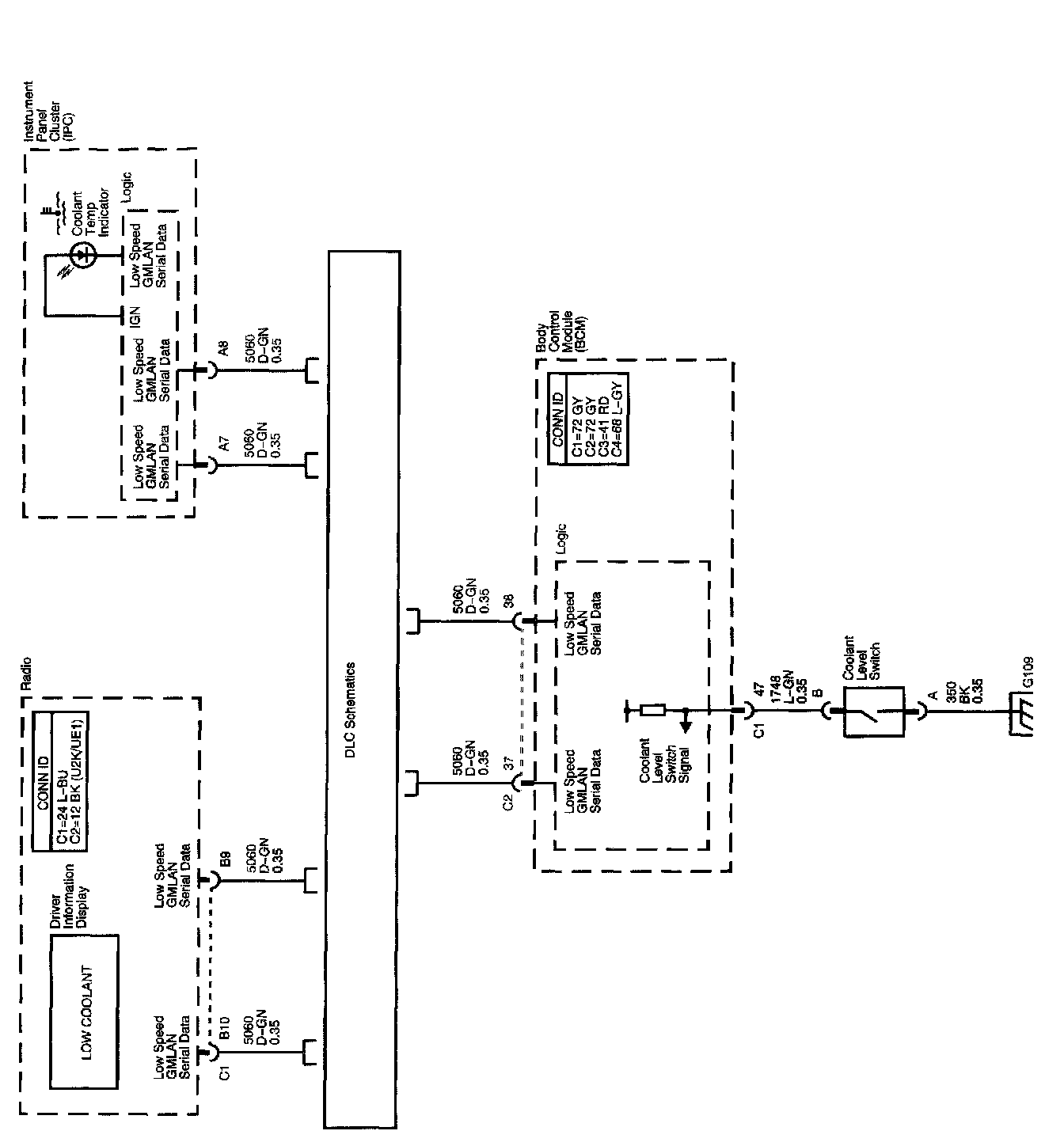

Engine Cooling Schematics (Engine Coolant Indicator)

Schematic and Routing Diagrams





Engine Cooling Schematics (Engine Coolant Indicator)
