Top Right Front of Engine
Top Right Front of Engine

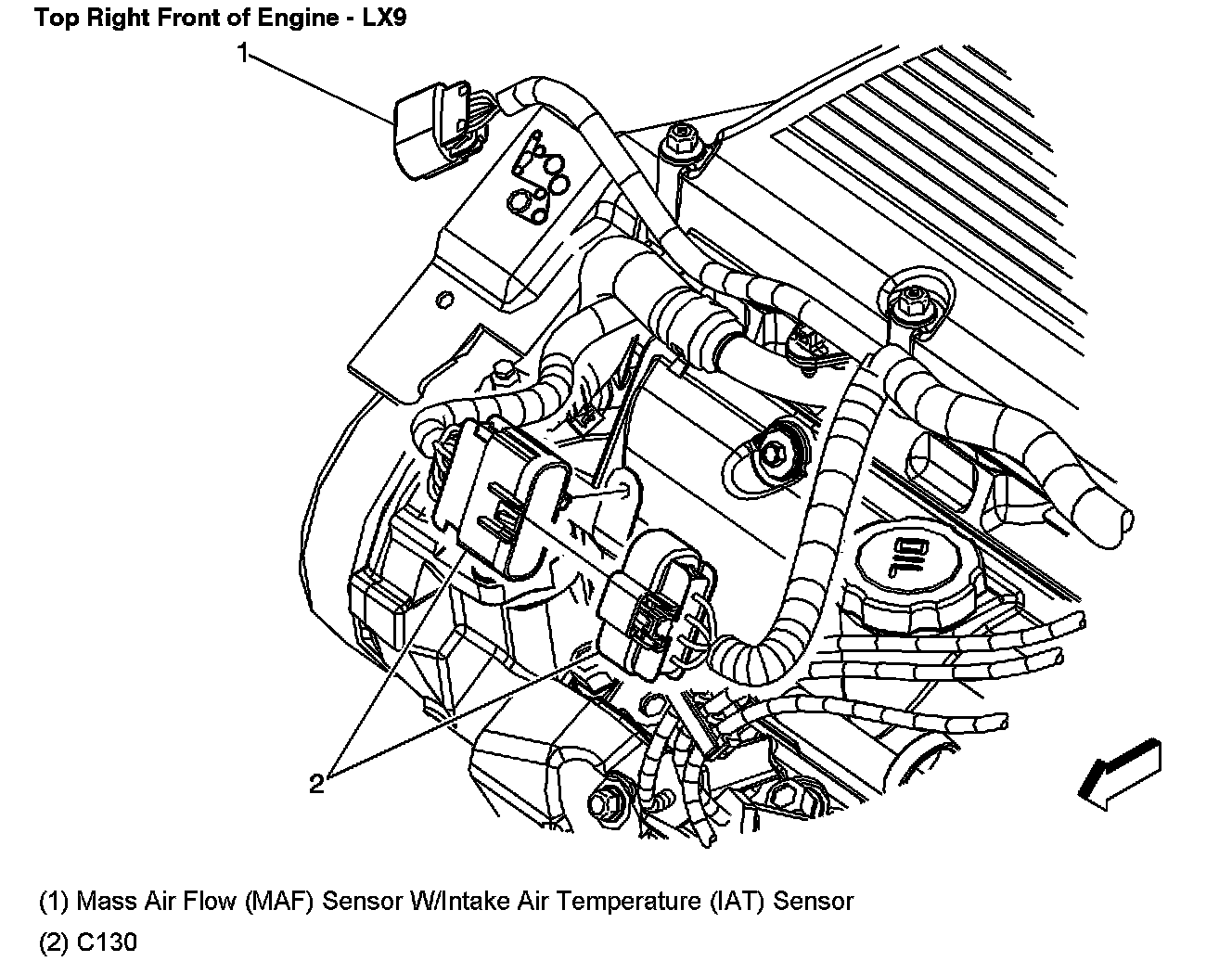

Top Right Front Of Engine:

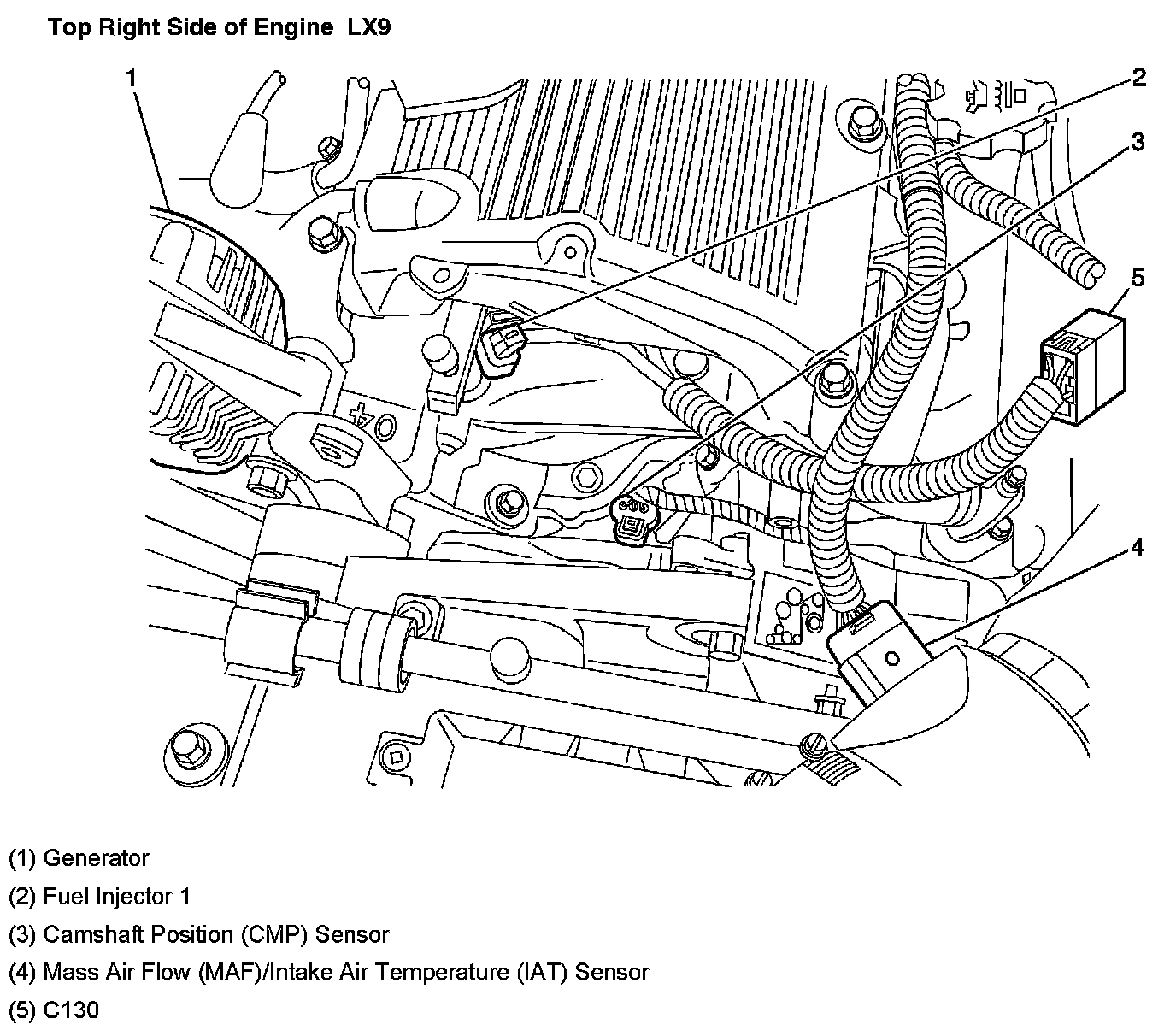

Top Right Side Of Engine:
