Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>
Emission Hose Routing
Emission Hose Routing

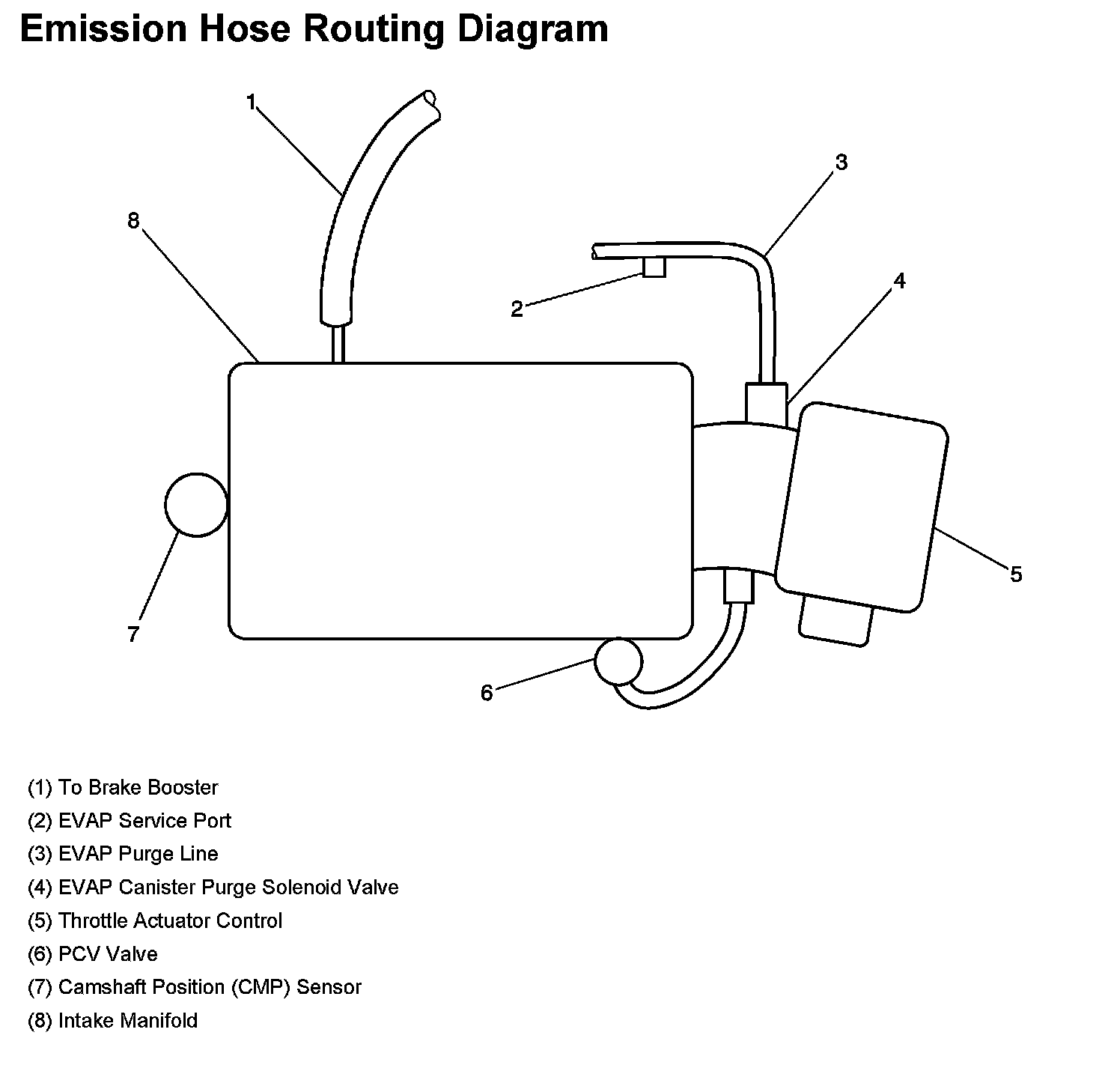

Emission House Routing Daigram:
