Instrument Panel (IP) - Center Support Bracket Replacement

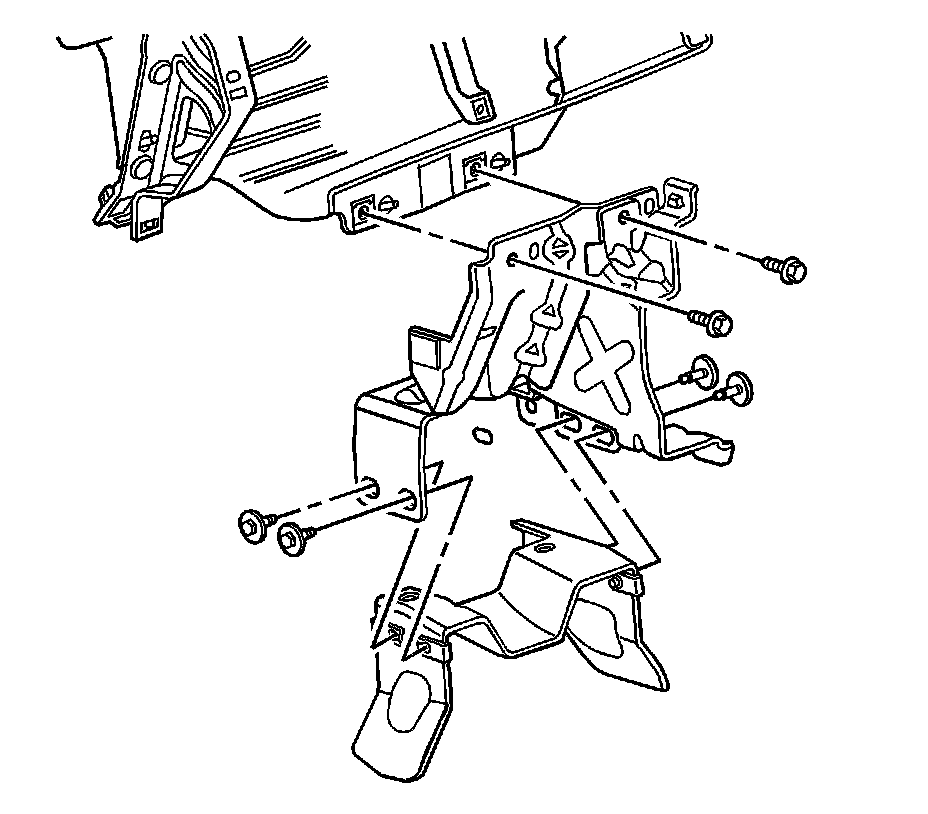

Bracket Replacement - Instrument Panel (I/P) Center Support

Removal Procedure




1. Remove the instrument panel (I/P) assembly.
2. Remove the lower center heater duct.
3. Remove the I/P center support bracket bolts.
4. Remove the I/P center support bracket.

Installation Procedure




1. Install the I/P center support bracket.

Notice: Refer to Fastener Notice in Service Precautions.

2. Remove the I/P center support bracket bolts.

Tighten the bolts to 10 N.m (89 lb in).

3. Install the lower center heater duct.
4. Install the I/P assembly.
