Instrument Panel (IP) - Trim Panel Replacement - Left

Instrument Panel (I/P) Trim Panel Replacement - Left

Removal Procedure




1. Remove the left instrument panel (I/P) trim panel.
2. Remove the fog lamp switch.
3. Remove the adjustable pedal switch.
4. Remove the I/P dimmer switch.

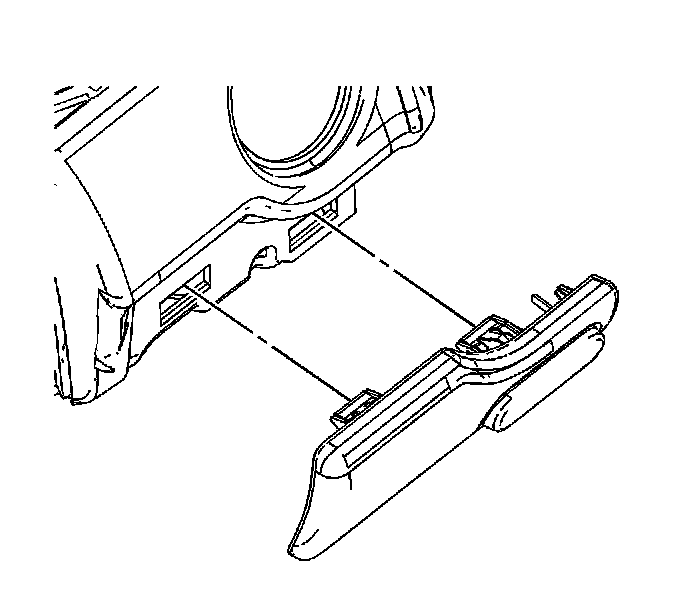

5. Remove the left center I/P trim panel.

Installation Procedure




1. Install the left center I/P trim panel.
2. Install the I/P dimmer switch.
3. Install the adjustable pedal switch.
4. Install the fog lamp switch.




5. Install the left I/P trim panel.
