Home >> Chevrolet >> 2004 >> Malibu V6-3.5L VIN 8 >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Instrument Panel (I/P) Compartment Lamp Inoperative

Instrument Panel (I/P) Compartment Lamp Inoperative

Step 1:

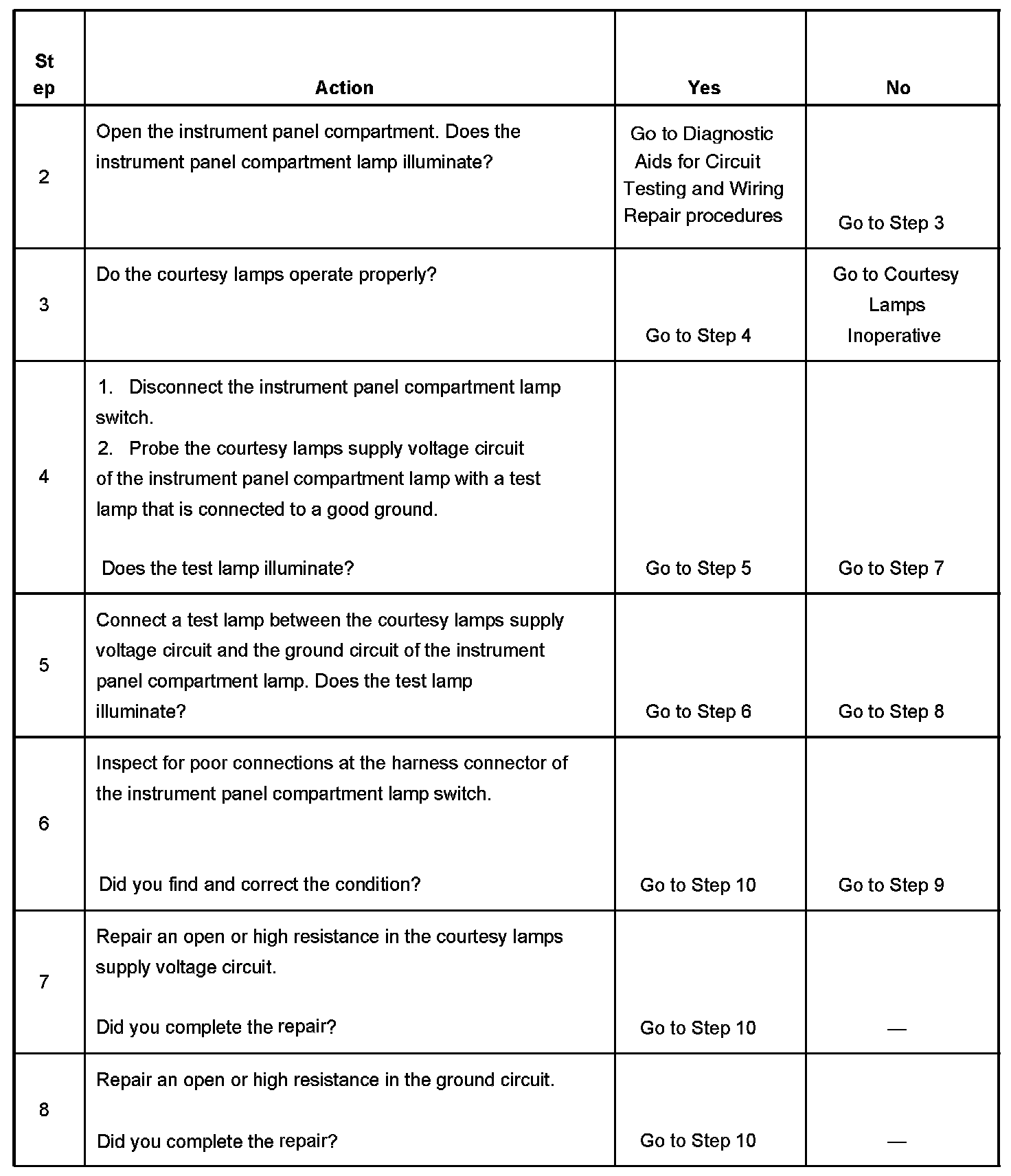

Steps 2 - 8:



Steps 9 - 10:
