31. Forward Clutch and Low/Reverse Band Removal
31. Forward Clutch and Low/Reverse Band Removal
1.

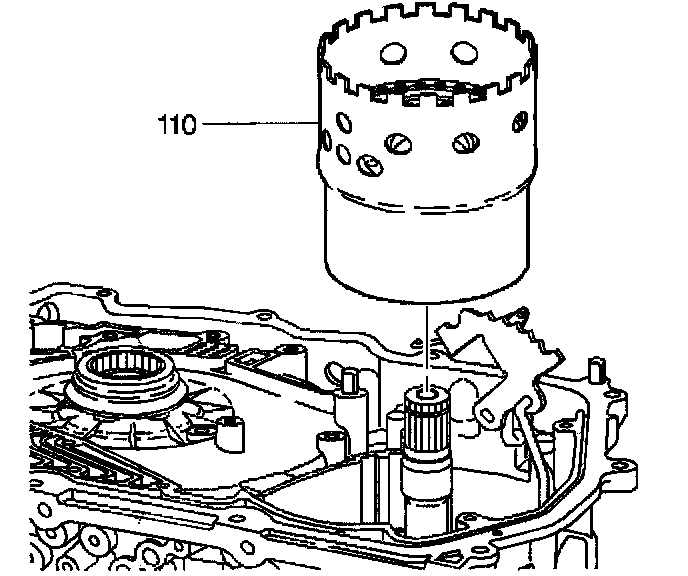

Remove the forward clutch assembly (110).
2.

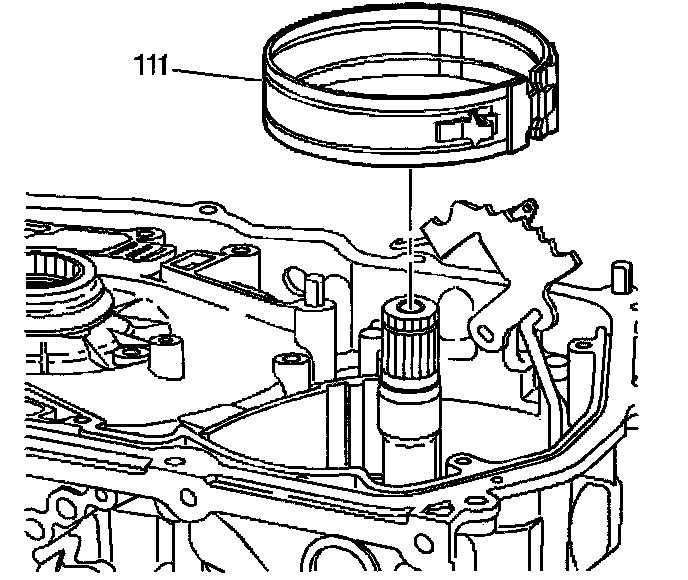

Remove the low/reverse band (111).
