Glove Compartment: Adjustments

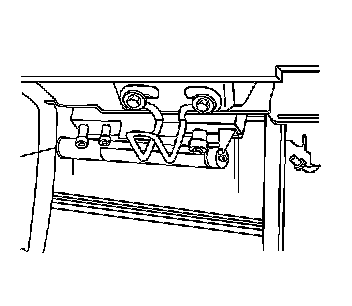

Striker Adjustment - Instrument Panel (I/P) Compartment




1. Open the instrument panel (IP) compartment door.
2. Loosen the IP compartment striker screws.
3. Adjust the IP compartment striker, as required.

Notice: Refer to Fastener Notice in Service Precautions.

4. Tighten the IP compartment striker screws.

Tighten the striker screws to 2 N.m (18 lb in).

5. Close the IP compartment.
6. Inspect the IP compartment for proper fit and operation. Repeat the procedure if required.
