Sunroof / Moonroof: Adjustments

SUNROOF WINDOW HEIGHT AND OPENING FIT ADJUSTMENT




1. Slide the sunroof sunshade to the open position.
2. Move the sunroof glass panel to the fully closed position.

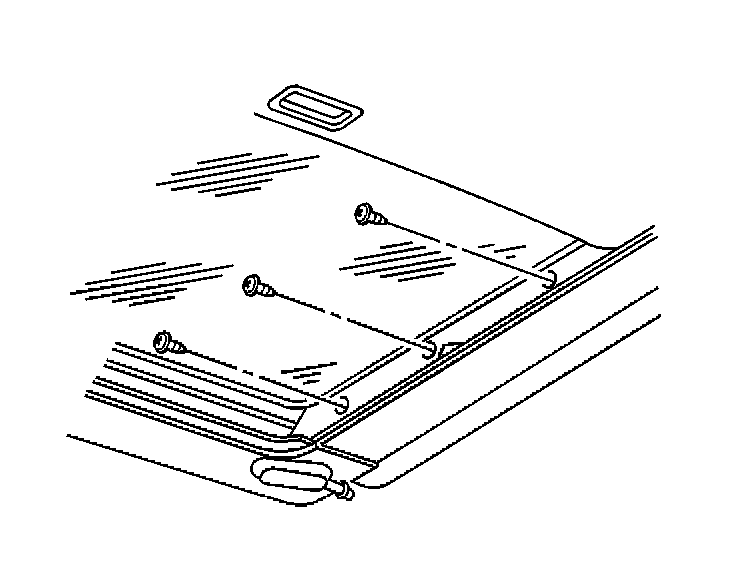

3. Loosen the sunroof glass panel screws.
4. Individually adjust the 4 corners (1) of the sunroof glass panel.
5. Adjust the front of the sunroof glass panel to 0.5 mm (0.020 in) below the top surface of the roof panel (3).
6. Adjust the rear of the sunroof glass panel to 0.5 mm (0.020 in) above the top surface of the roof panel (2).

Notice: Refer to Fastener Notice in Service Precautions.




7. Tighten the sunroof glass panel screws.

Tighten
Tighten the screws to 4 N.m (35 lb in).
