Cruise Control Servo Cable: Service and Repair

CRUISE CONTROL CABLE REPLACEMENT

REMOVAL PROCEDURE

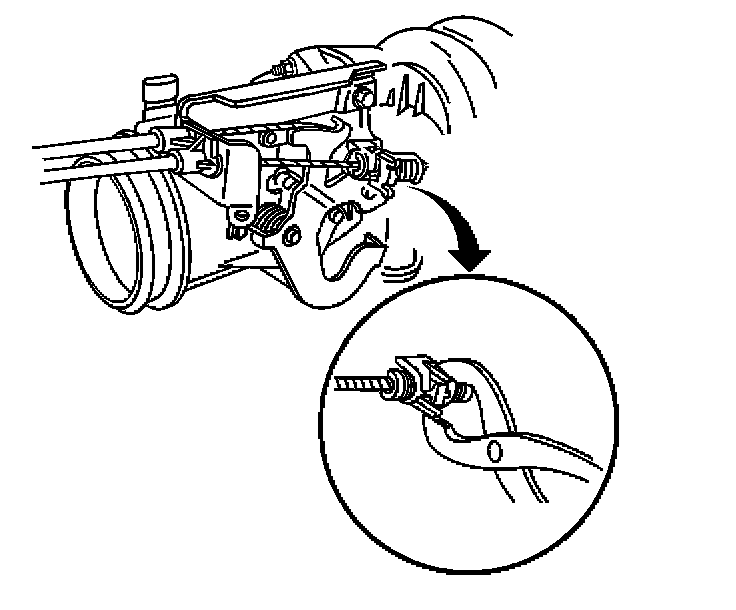

1. Remove the cruise control from the throttle body lever and the accelerator control cable bracket.

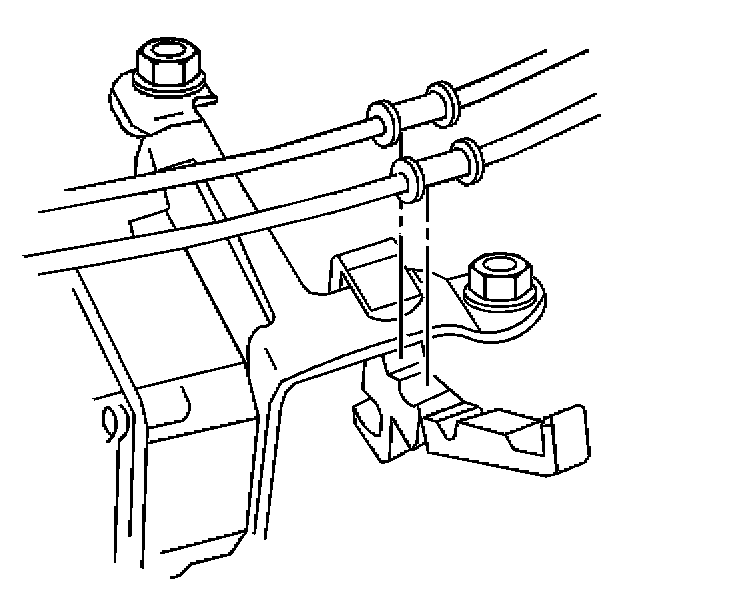

2. Remove the cruise control cable from the cruise control cable retainers.




3. Remove the cruise control cable from the cruise control module cable strap.

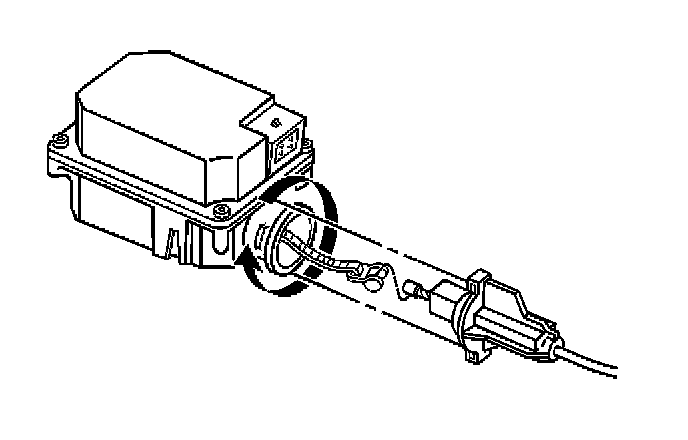

4. Remove the cruise control cable from the cruise control module by rotating the cruise control cable counterclockwise.
5. Remove the cruise control cable.

INSTALLATION PROCEDURE




1. Position the cruise control cable to the engine.




2. Install the cruise control cable to the module by rotating the cruise control cable clockwise.

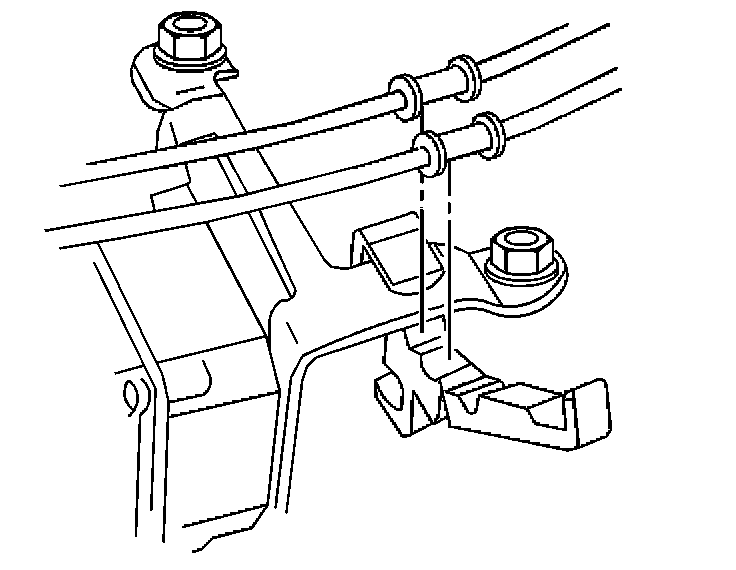

3. Install the cruise control cable to the cruise control cable retainers.

IMPORTANT:
- Ensure the module strap is not twisted during installation of the cable.
- The cruise control cable does not require mechanical adjusting after the replacement. The cruise control module internally adjusts the cable.




4. Install the cruise control cable to the cruise control module cable strap.

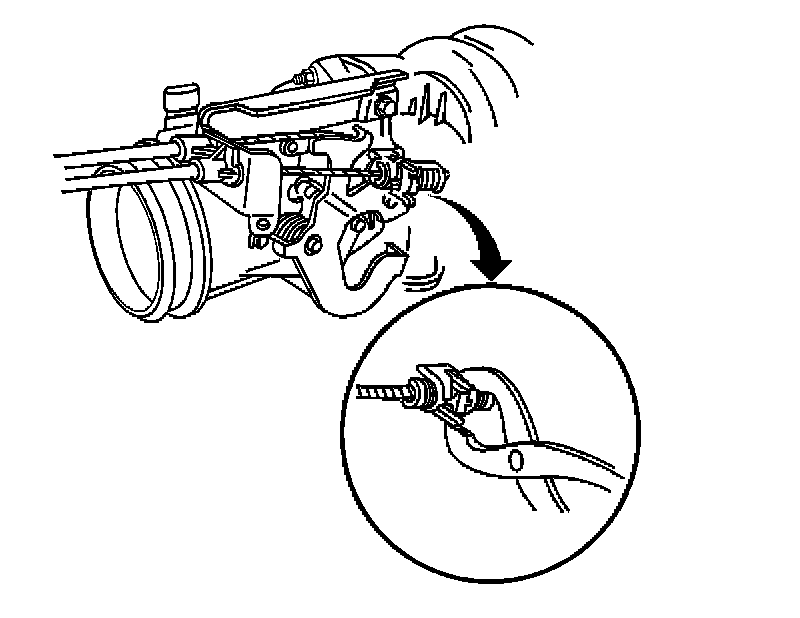

5. Install the cruise control cable to the throttle body lever and the accelerator control cable bracket.
