Amplifier, Sound System
Amplifier, Sound System

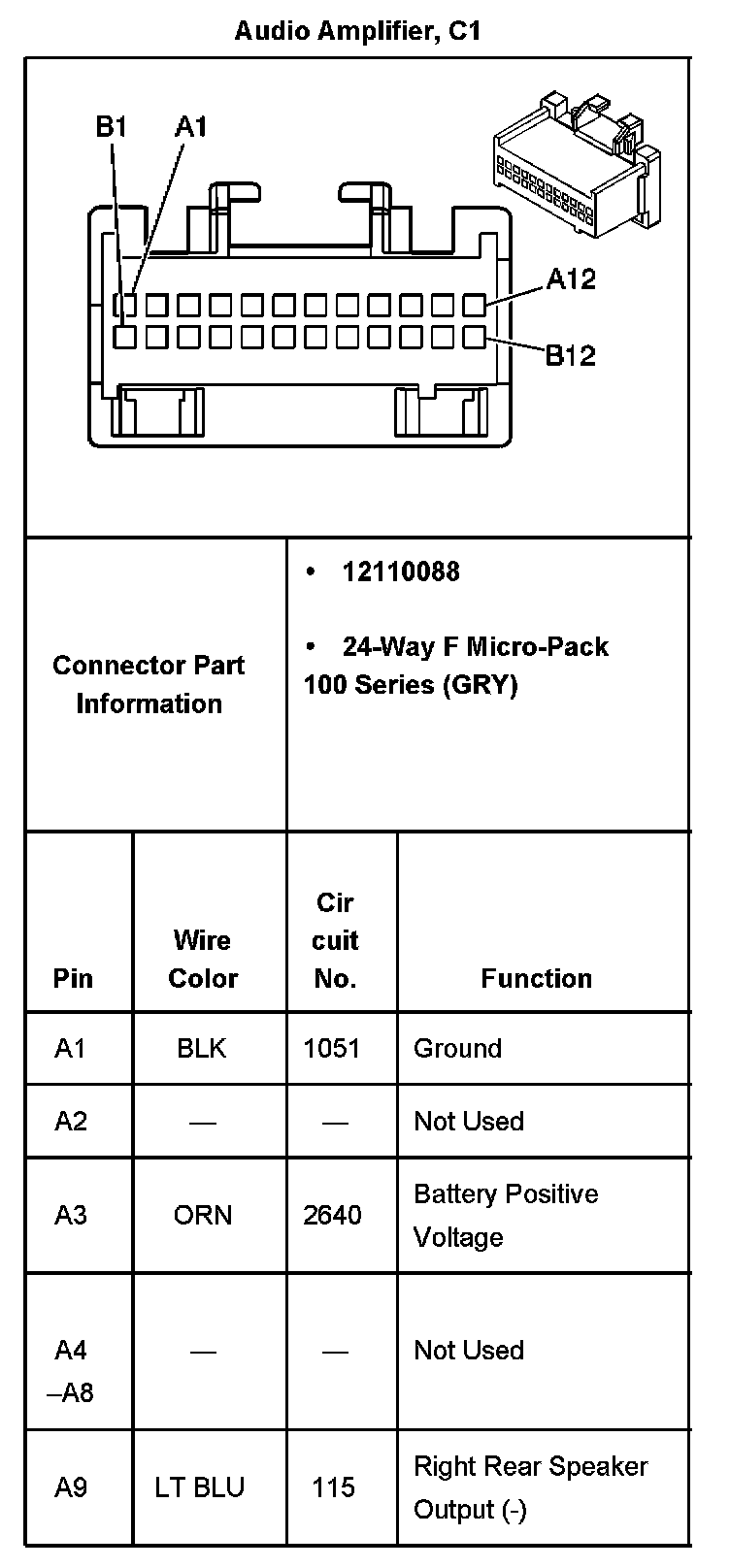

Audio Amplifier, C1 Part 1:
Audio Amplifier, C1 Part 2:

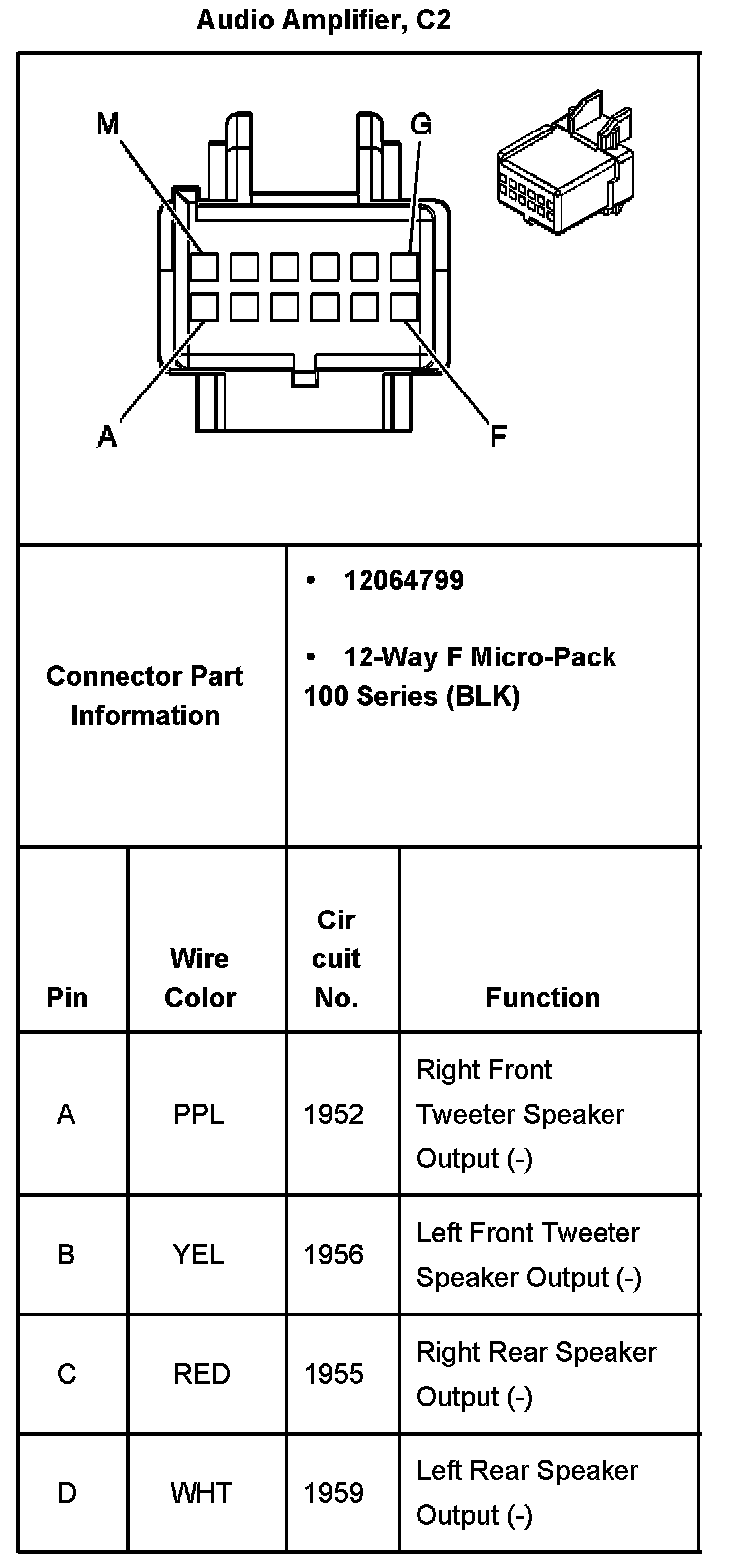

Audio Amplifier, C2 Part 1:

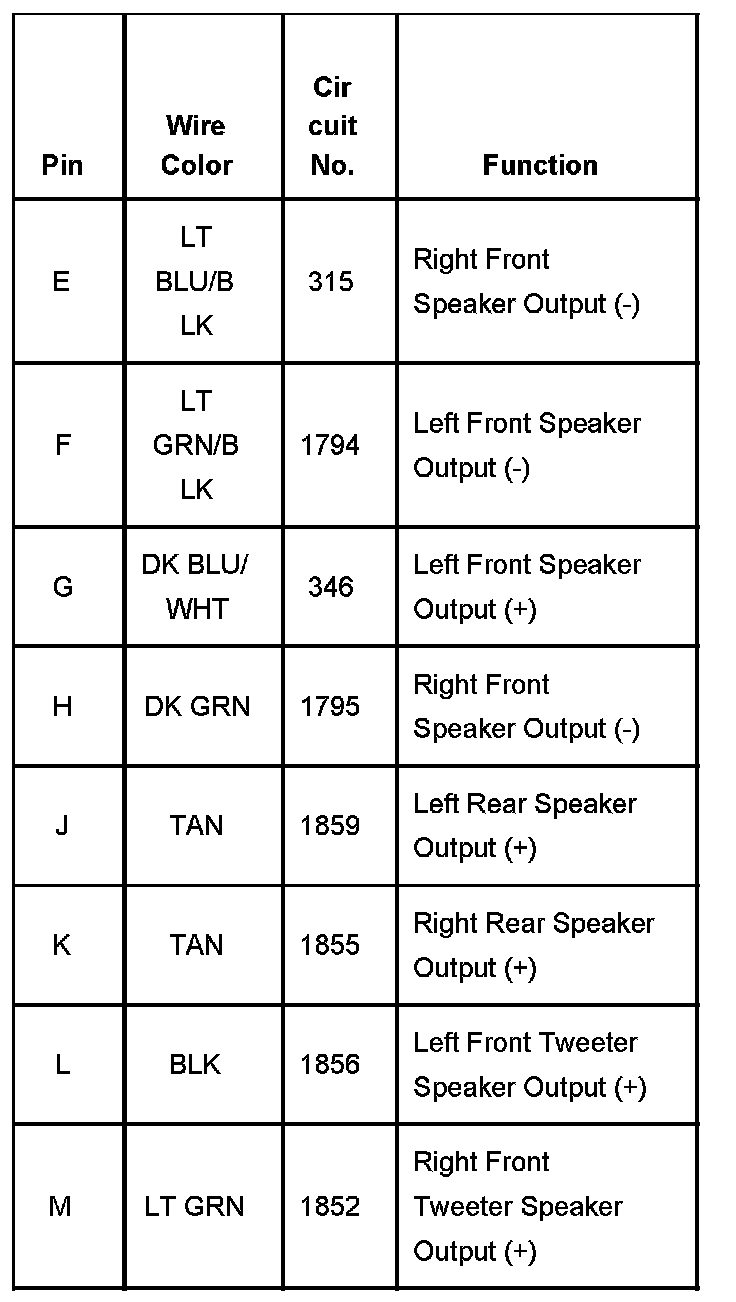

Audio Amplifier, C2 Part 2:
