Auxiliary Power Outlet
>>
Auxiliary Power Drop Connector (With RPO Code 9C1/9C3)
Auxiliary Power Drop Connector (With RPO Code 9C1/9C3)

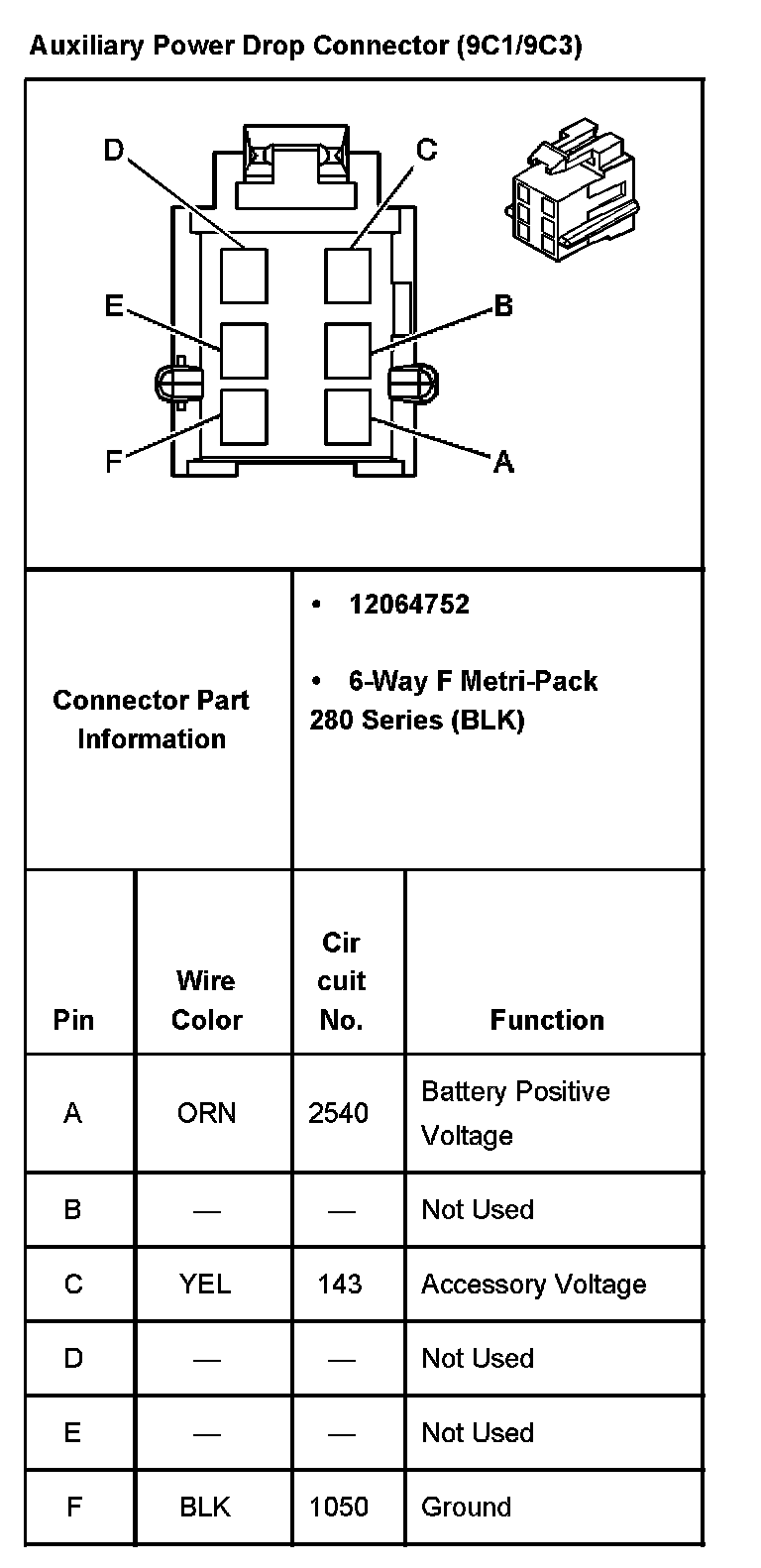

Auxiliary Power Drop Connector (With RPO Code 9C1/9C3):
