C106

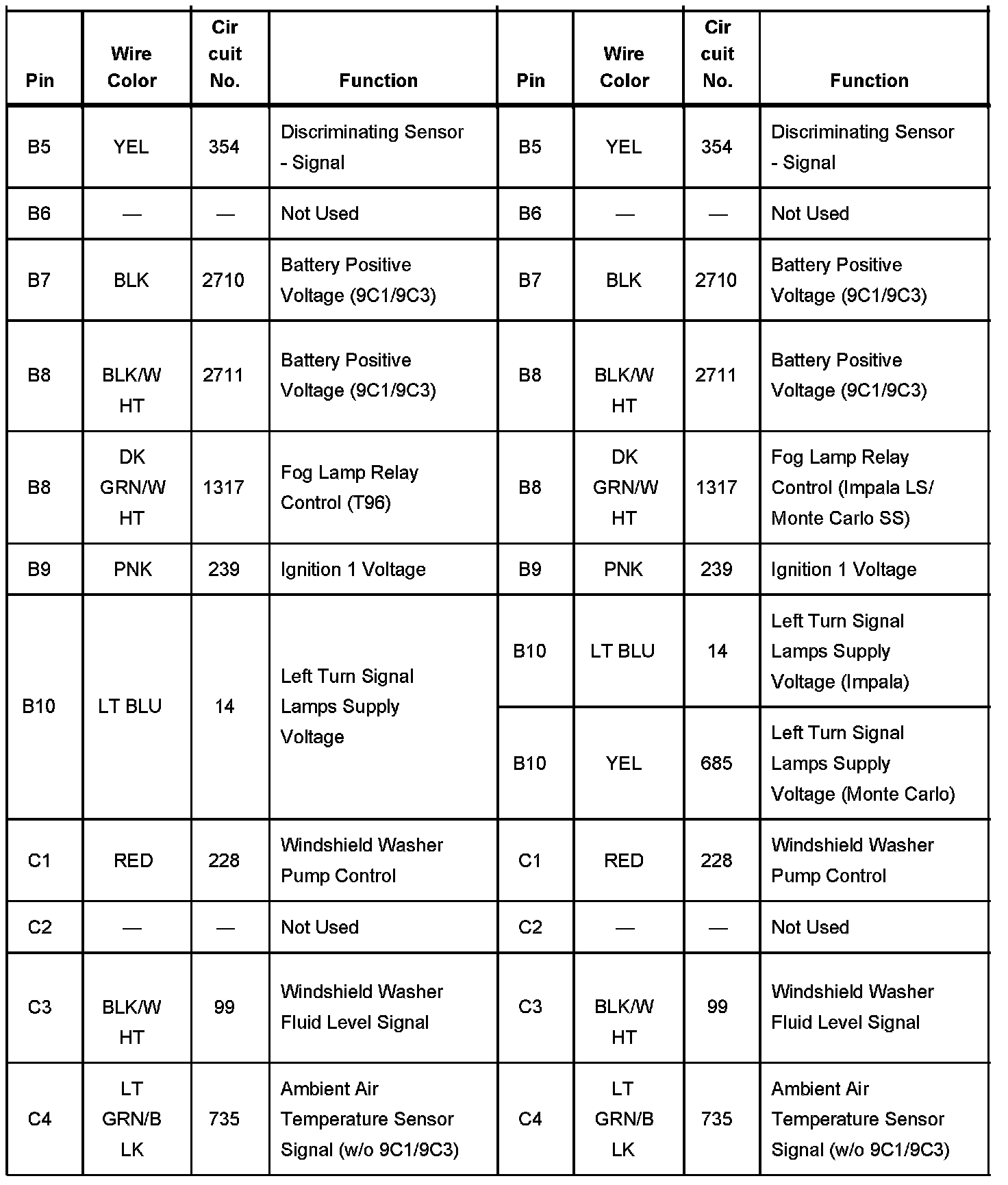

Inline Connector C106 Part 1:



Inline Connector C106 Part 2:



Inline Connector C106 Part 3:
