C201
C201

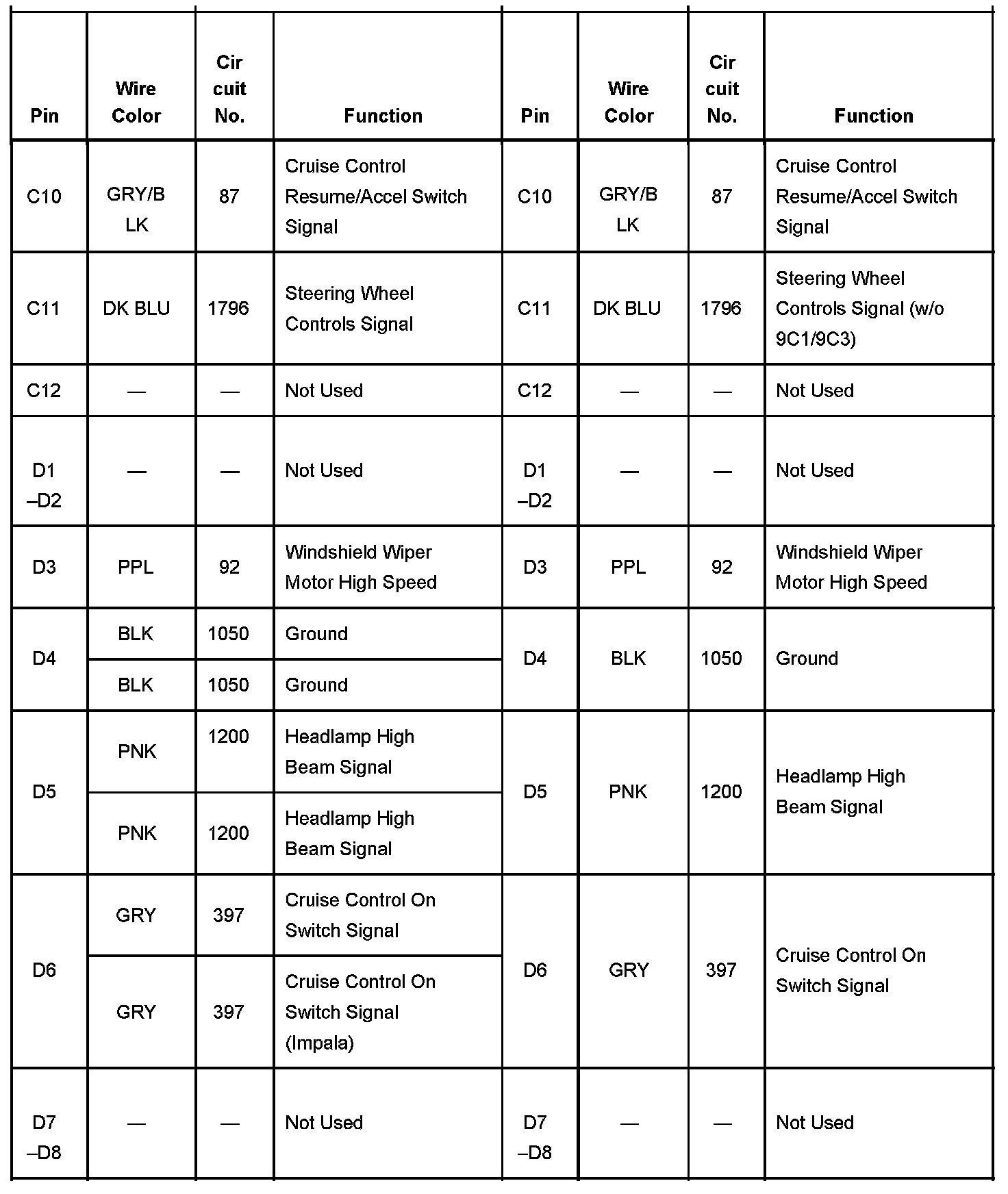

Inline Connector C201 Part 1:

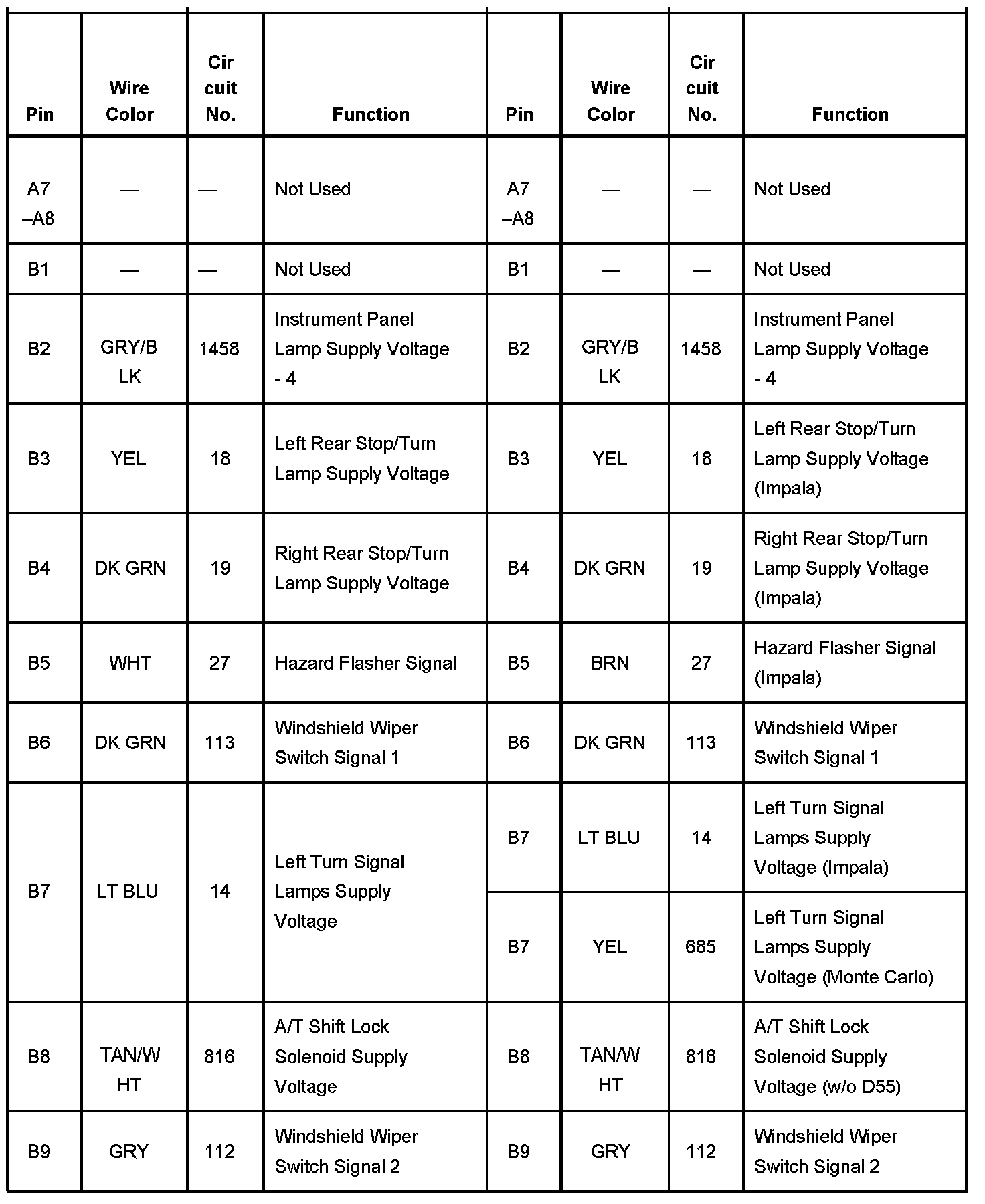

Inline Connector C201 Part 2:
Inline Connector C201 Part 3:
Inline Connector C201 Part 4:
