C301
C301

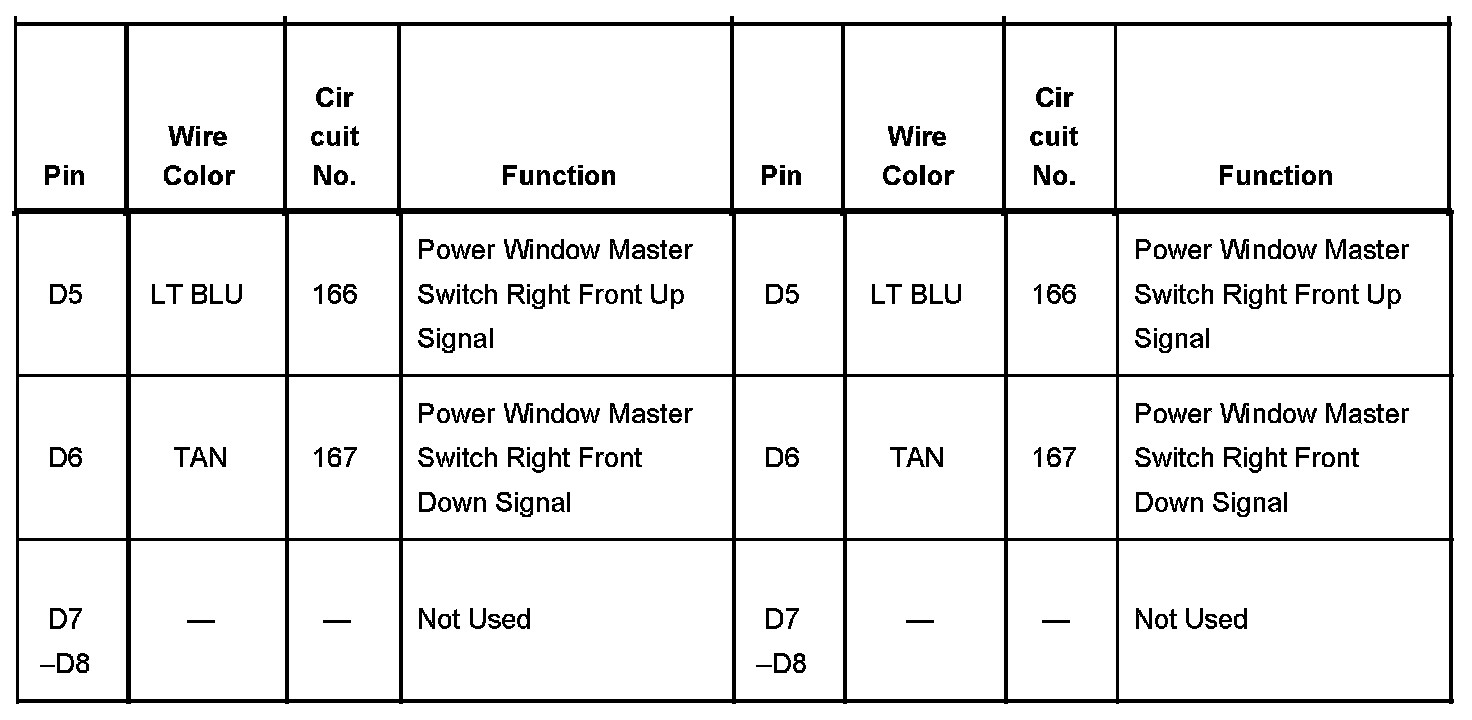

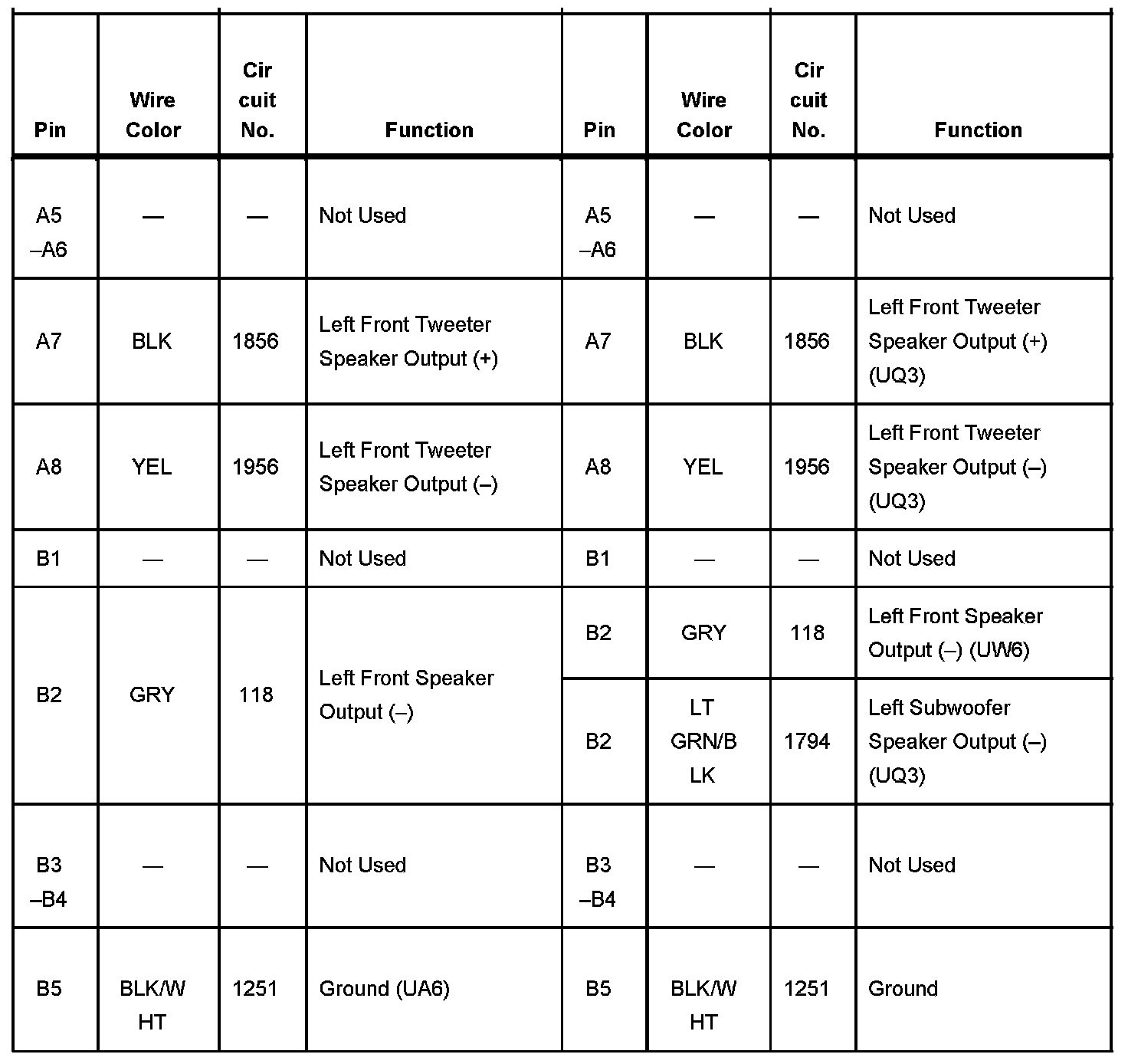

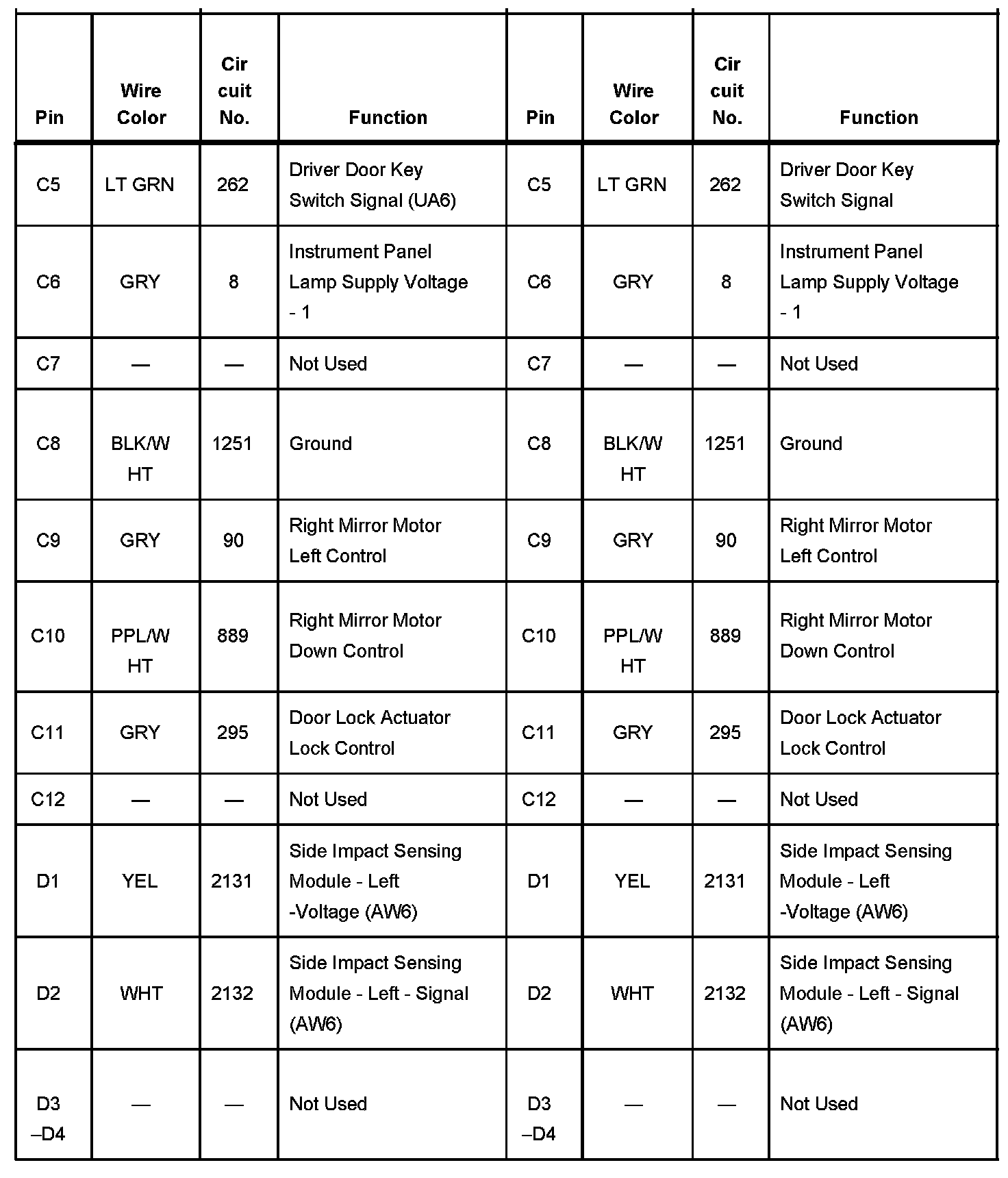

Inline Connector C301 Part 1:
Inline Connector C301 Part 2:
Inline Connector C301 Part 3:
Inline Connector C301 Part 4:
Inline Connector C301 Part 5:
