Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2004
>>
Monte Carlo V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Locks
>>
Door Lock - Front Passenger
Door Lock - Front Passenger

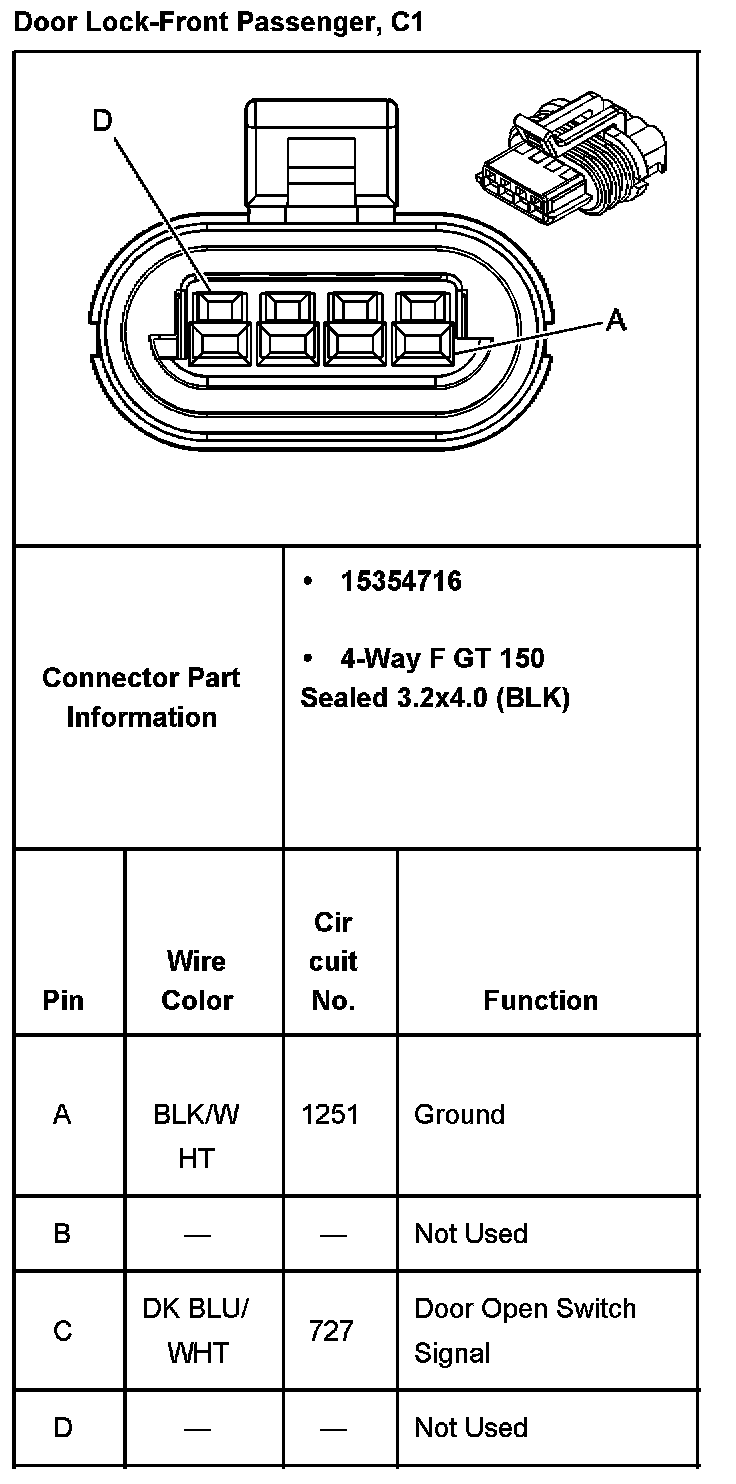

Door Lock-Front Passenger, C1:

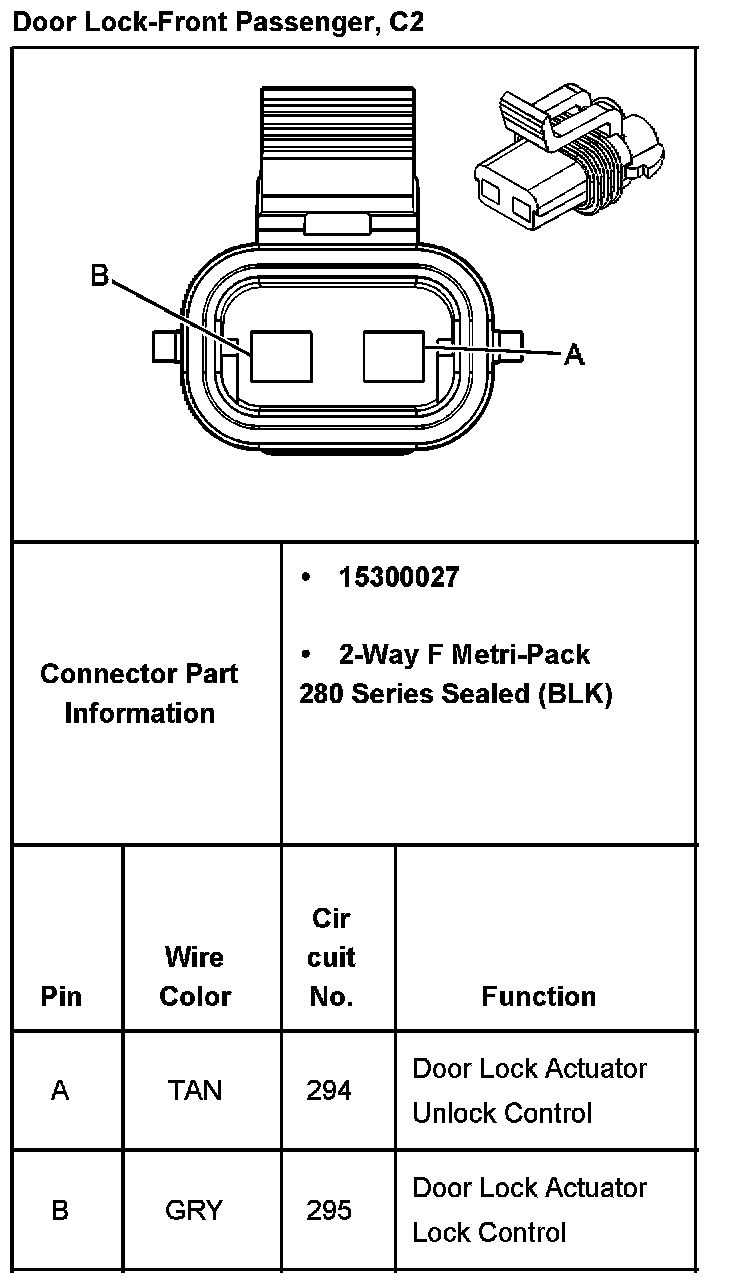

Door Lock-Front Passenger, C2:
