Junction Block - Right I/P - C1

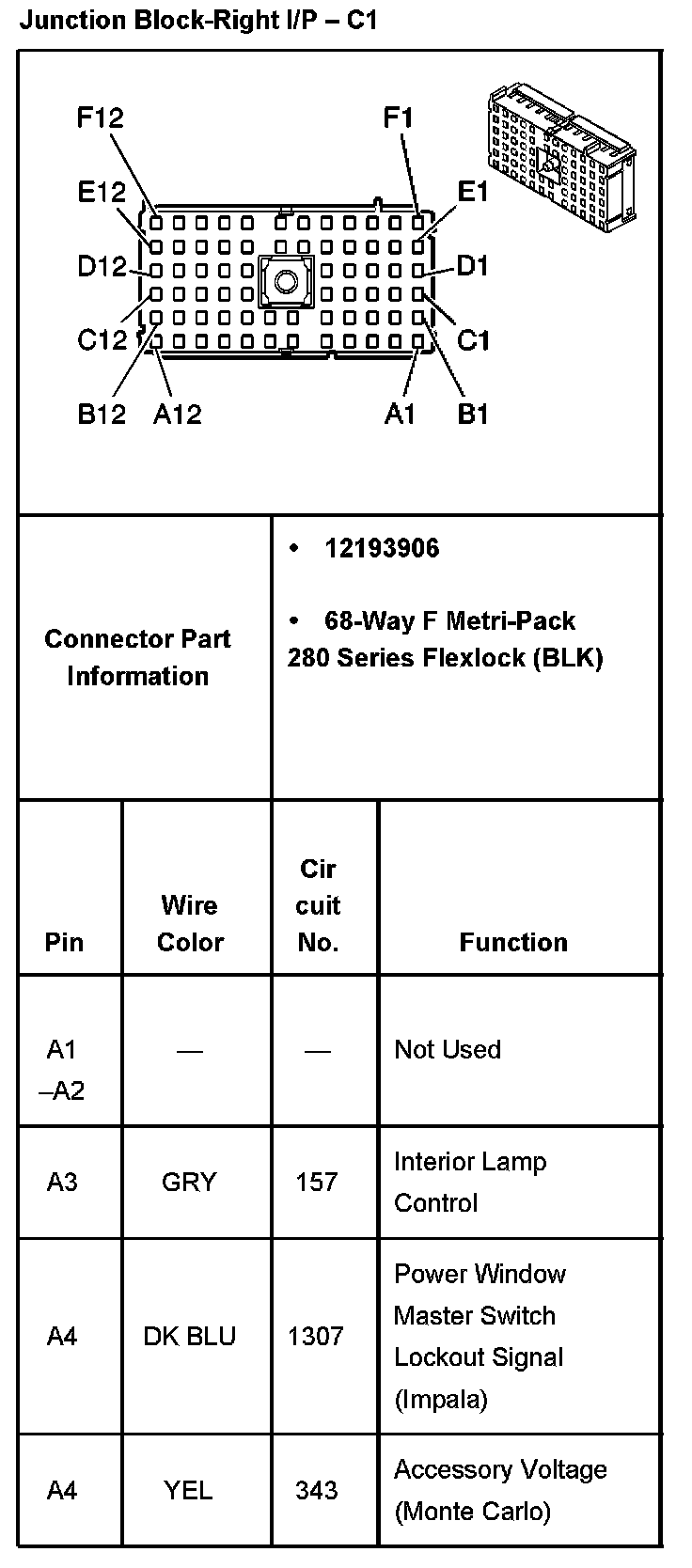

Junction Block-Right I/P - C1 Part 1:

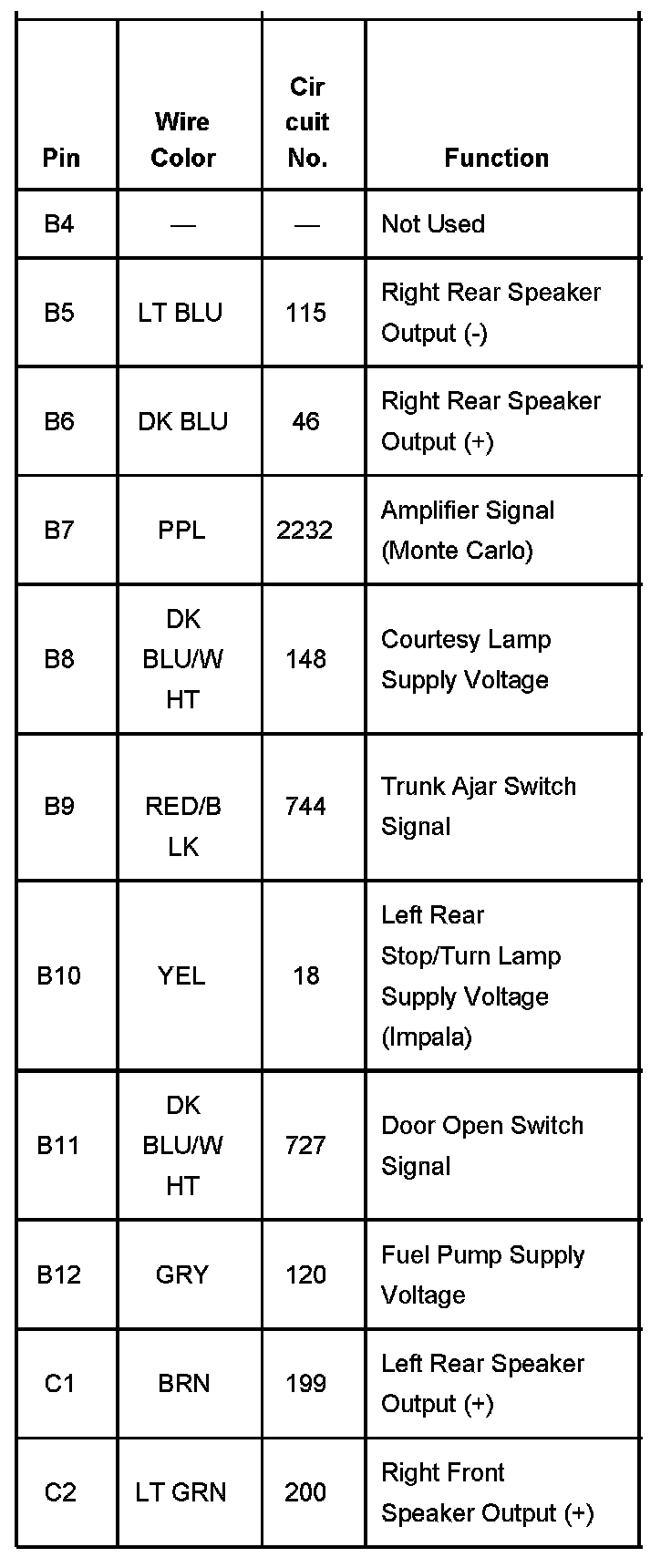

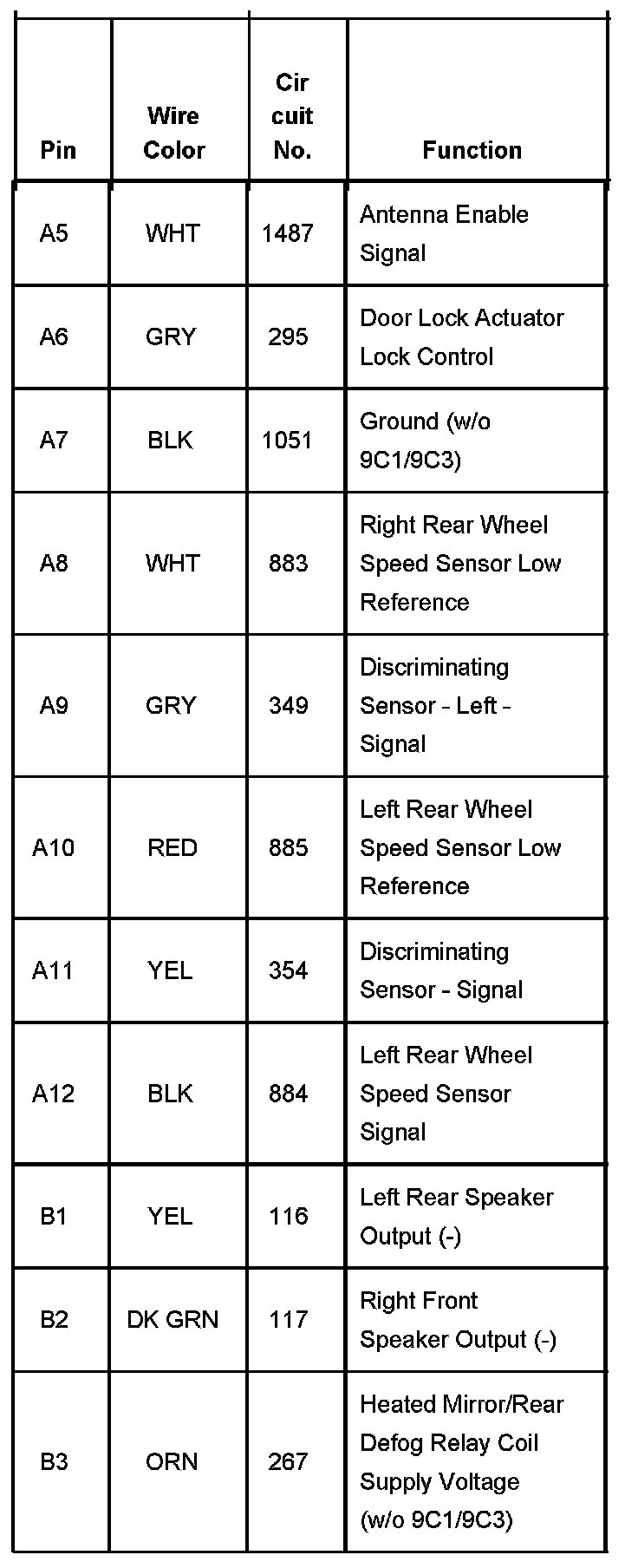

Junction Block-Right I/P - C1 Part 2:

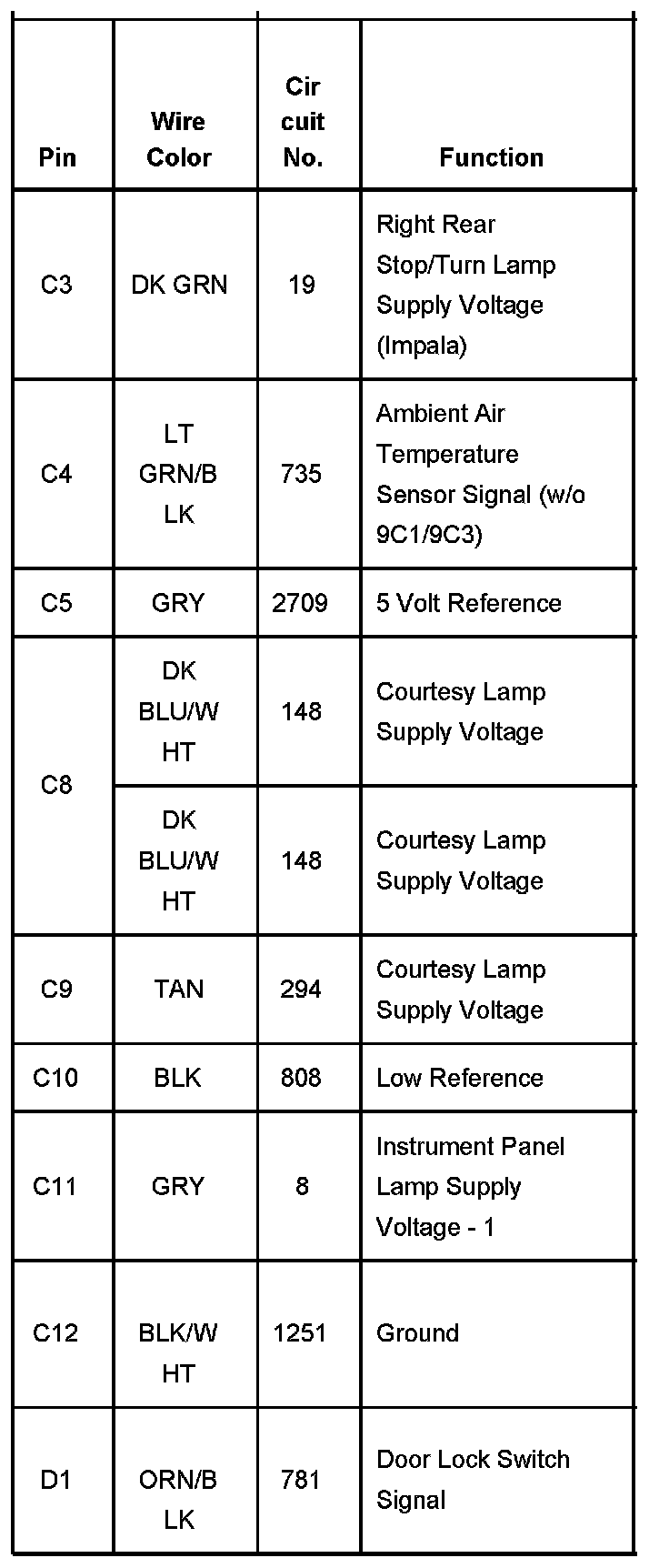

Junction Block-Right I/P - C1 Part 3:

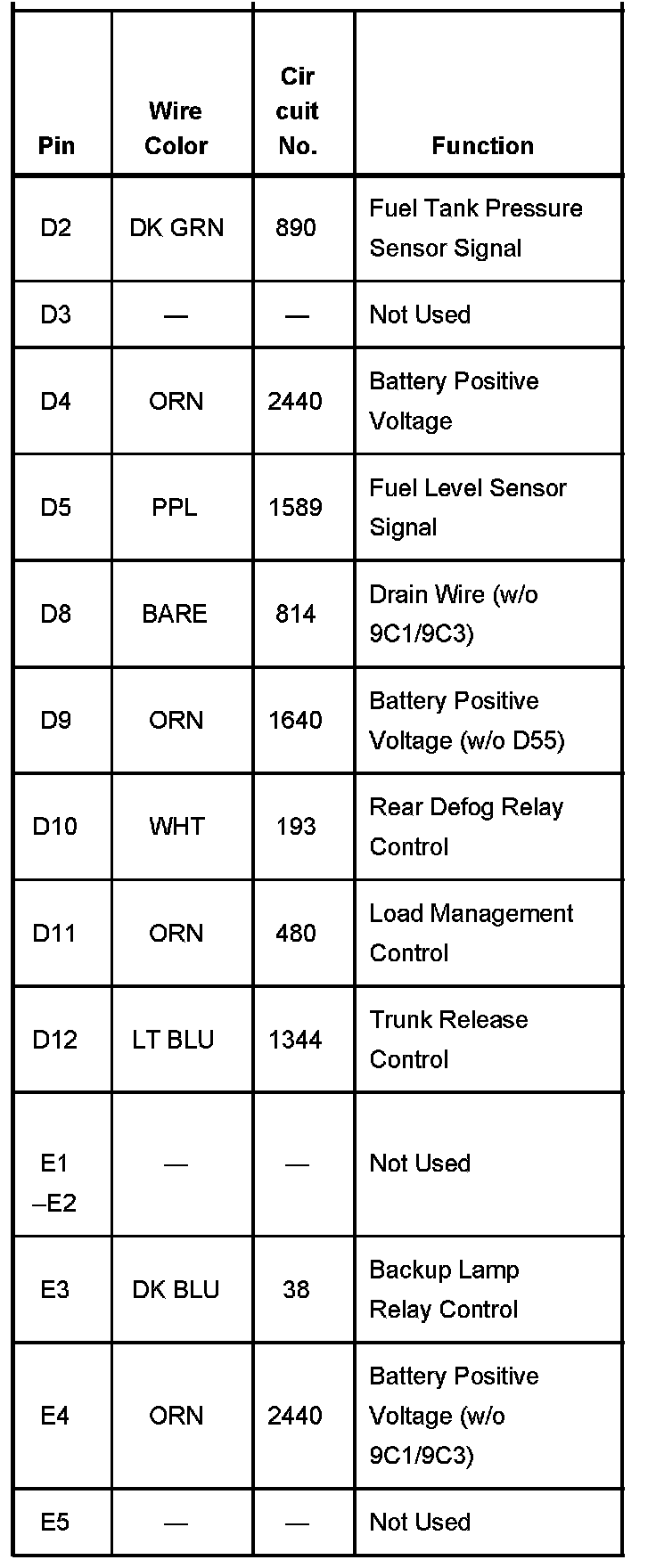

Junction Block-Right I/P - C1 Part 4:

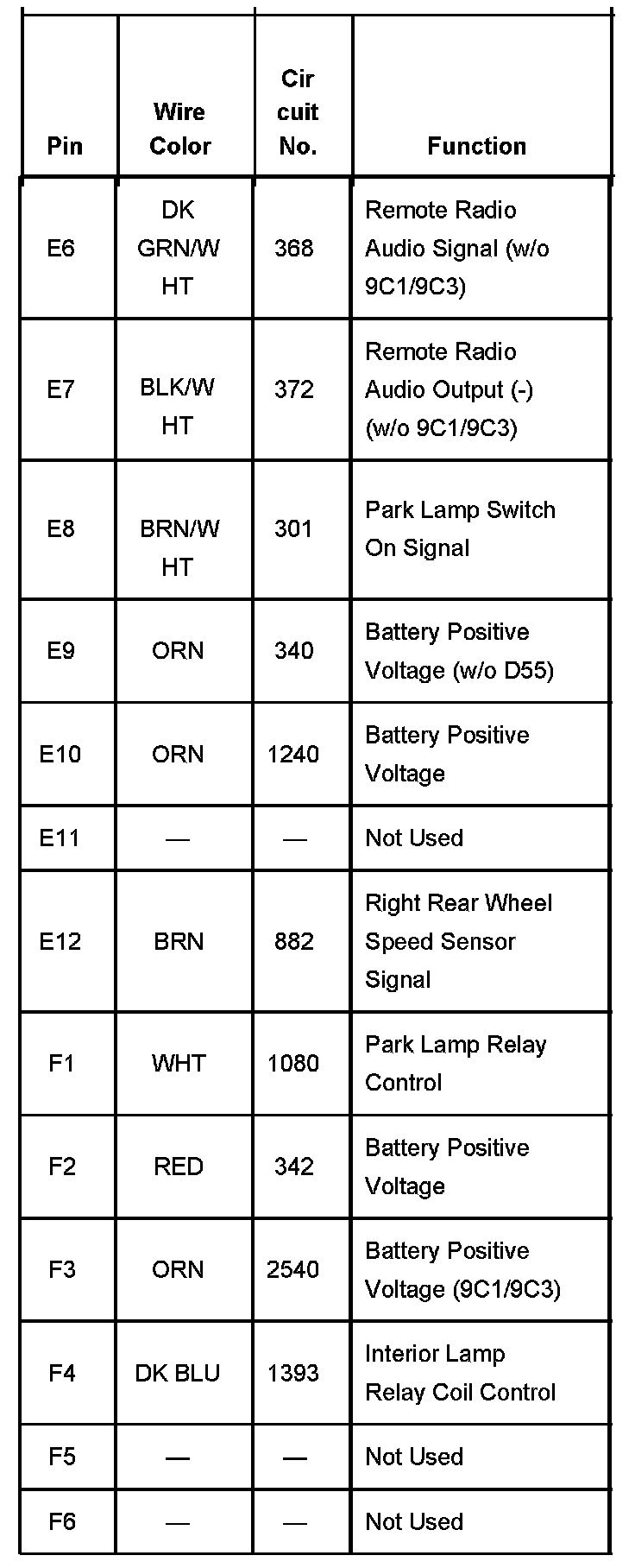

Junction Block-Right I/P - C1 Part 5:

Junction Block-Right I/P - C1 Part 6:

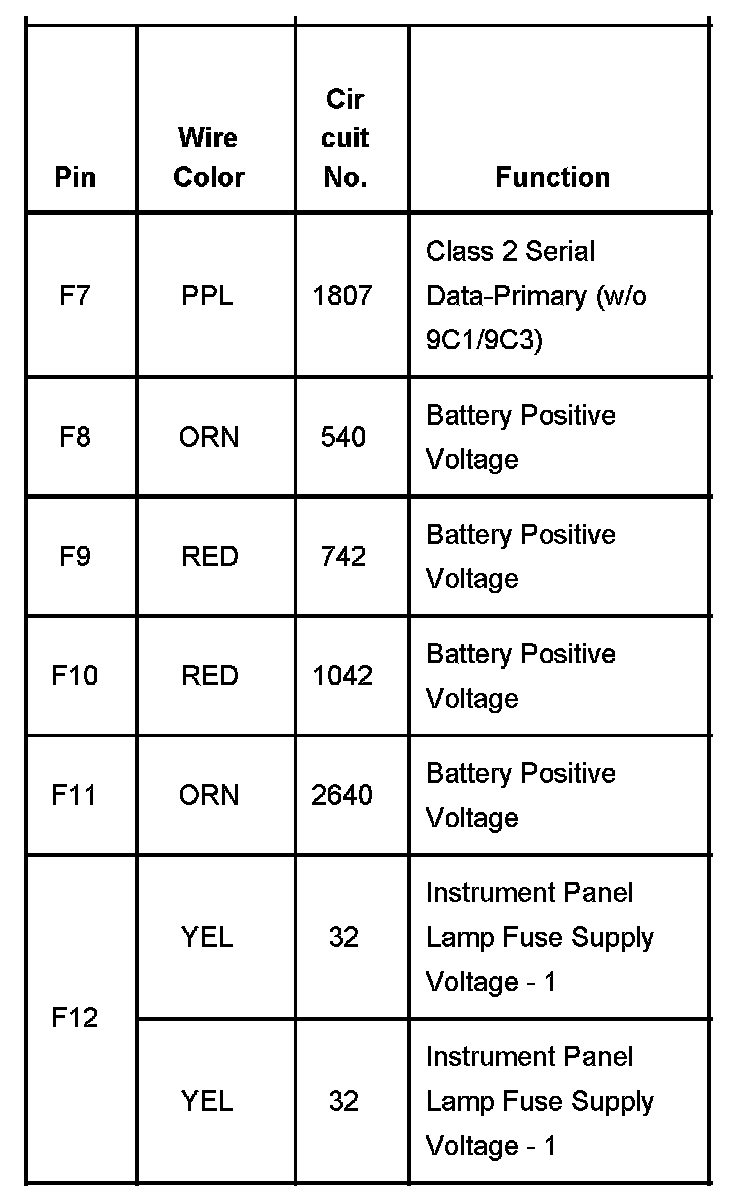

Junction Block-Right I/P - C1 Part 7:
