Chevrolet
>>
2004
>>
Monte Carlo V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Hazard Warning Flasher
>>
Emergency Vehicle Headlamps Flasher
Emergency Vehicle Headlamps Flasher

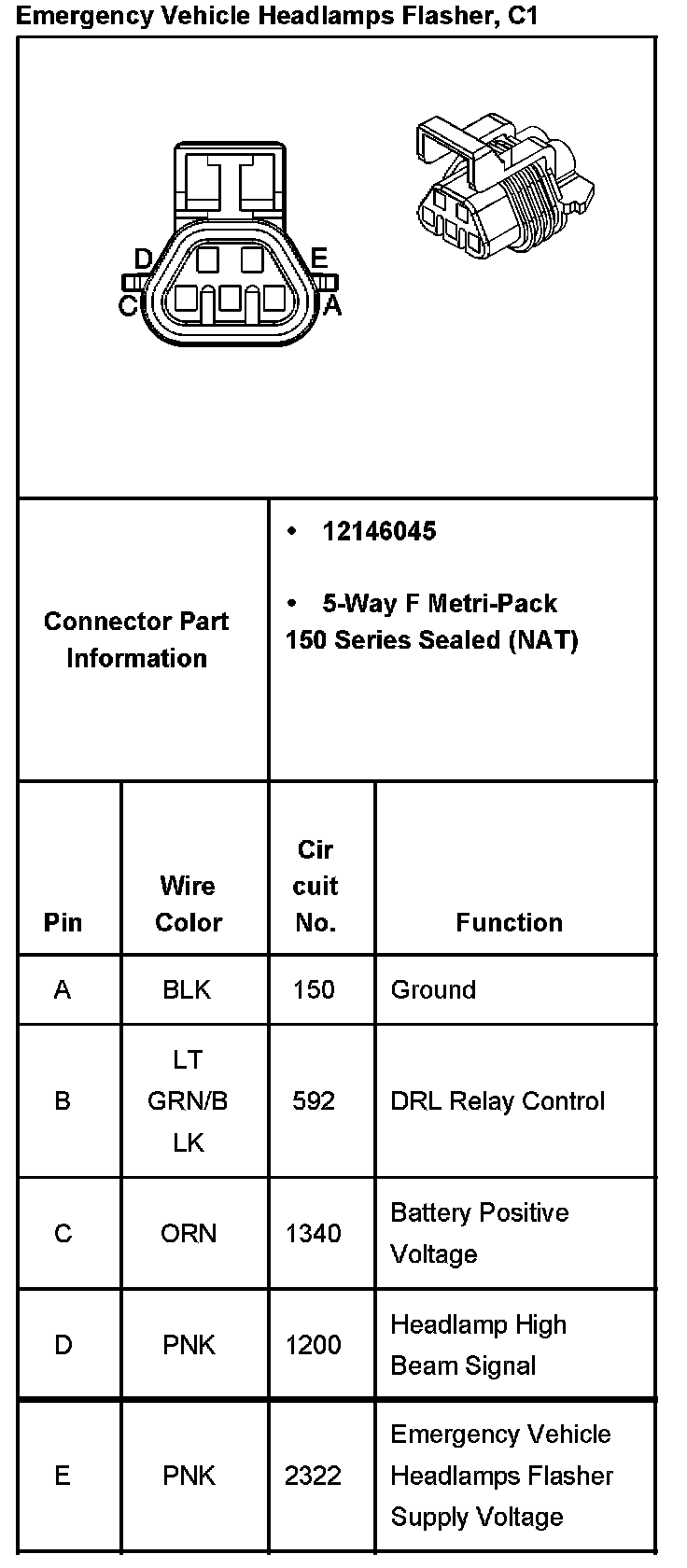

Emergency Vehicle Headlamps Flasher, C1:

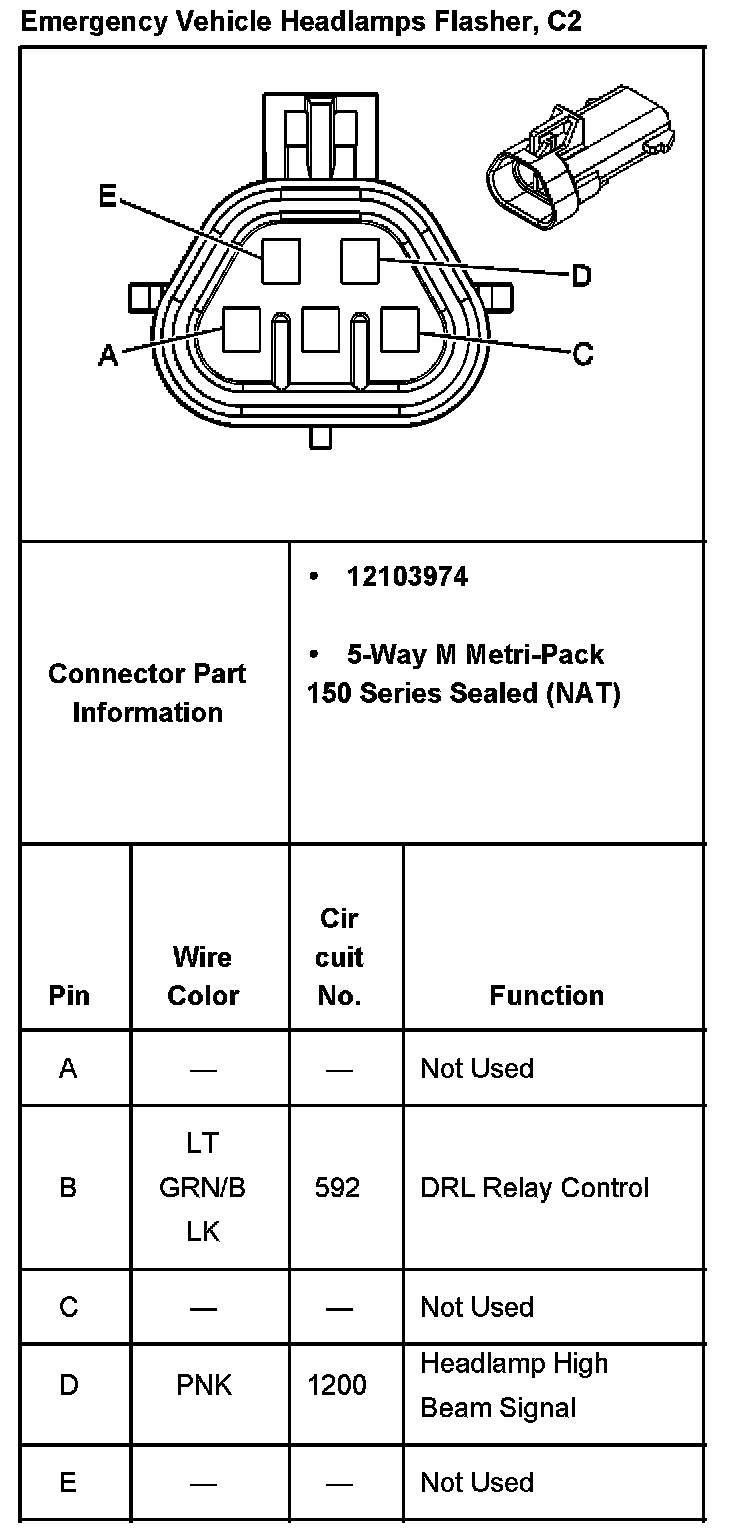

Emergency Vehicle Headlamps Flasher, C2:
