System Diagram

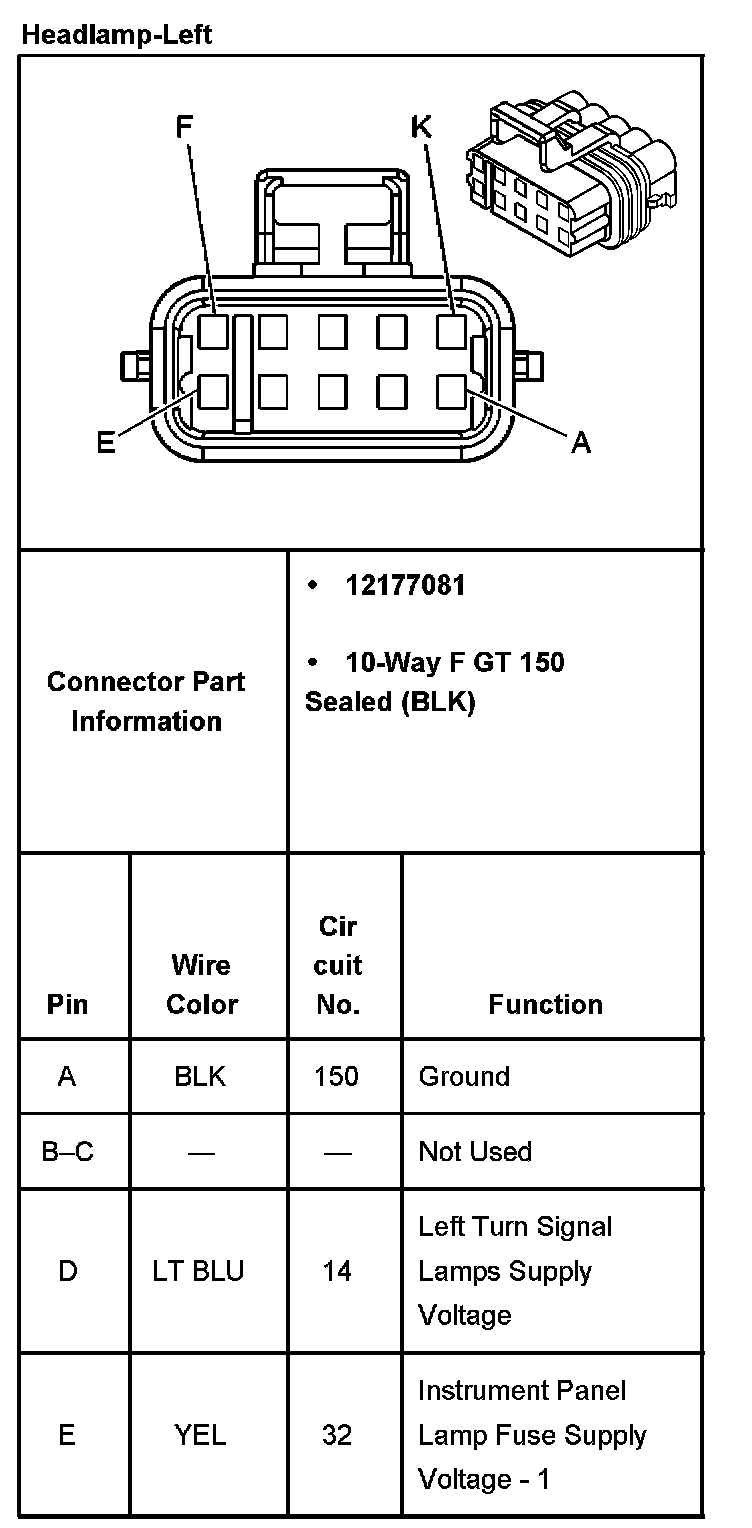

Headlamp-Left Part 1:

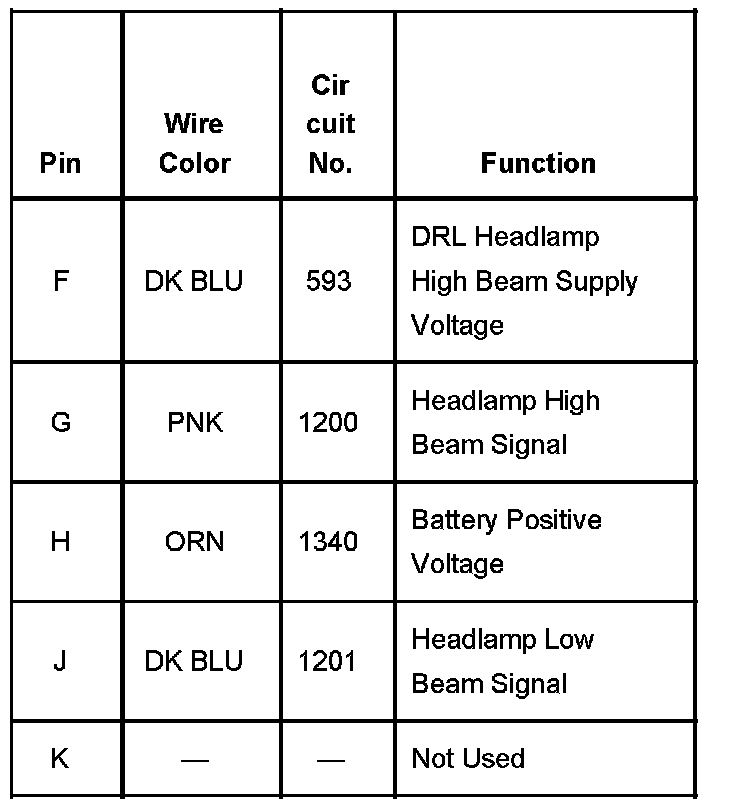

Headlamp-Left Part 2:

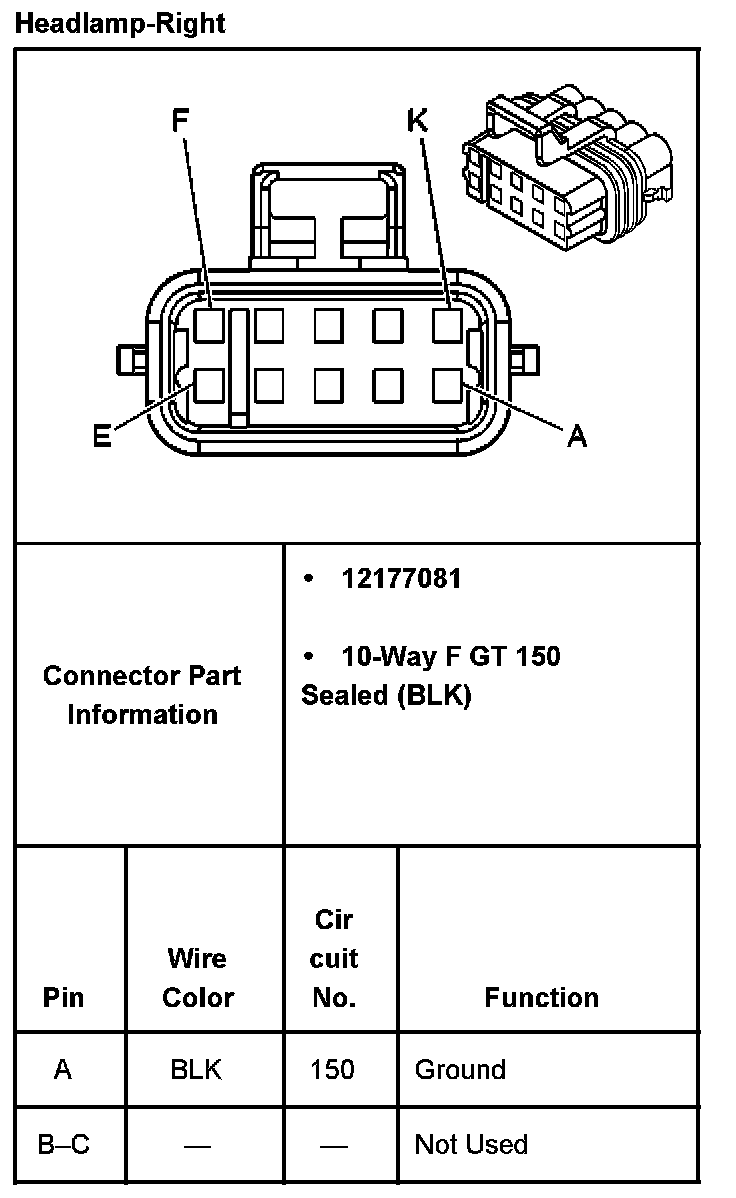

Headlamp-Right Part 1:

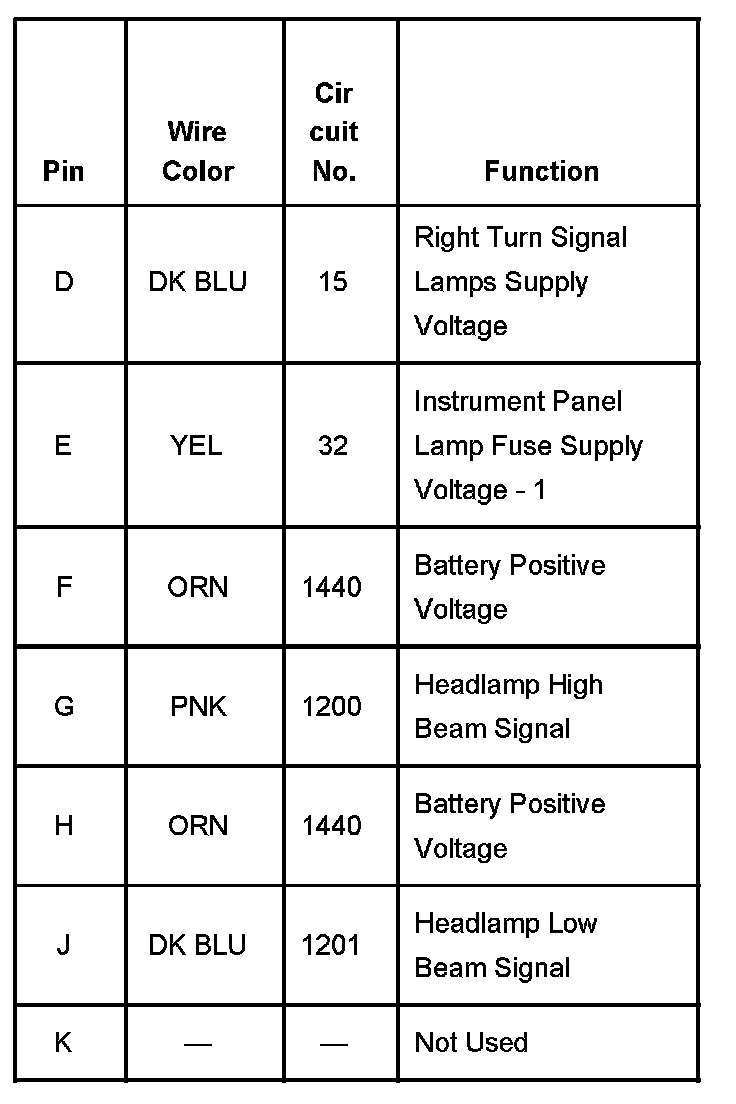

Headlamp-Right Part 2:
