Police / Special Vehicle Options
>>
Emergency Vehicle Rear Window Panel Lamp
Emergency Vehicle Rear Window Panel Lamp
Emergency Vehicle Rear Window Panel Lamp-Left:

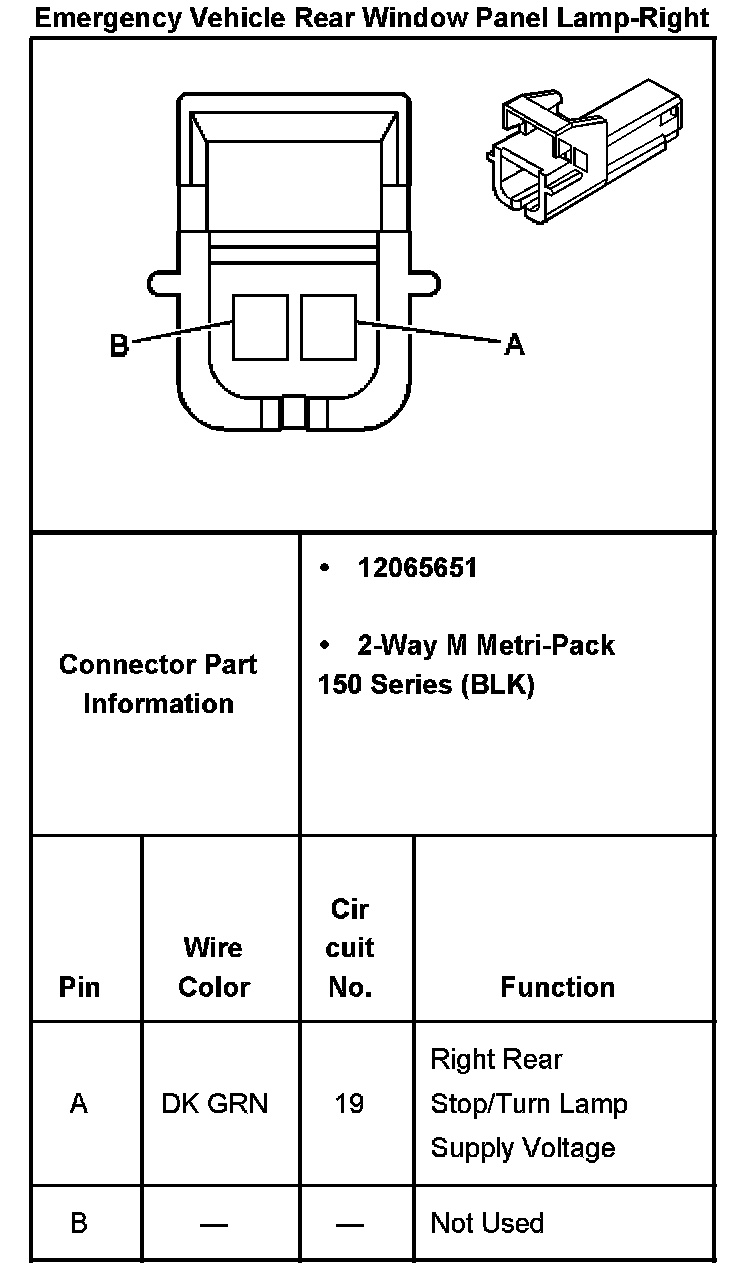

Emergency Vehicle Rear Window Panel Lamp-Right:
