Power Seat Motor

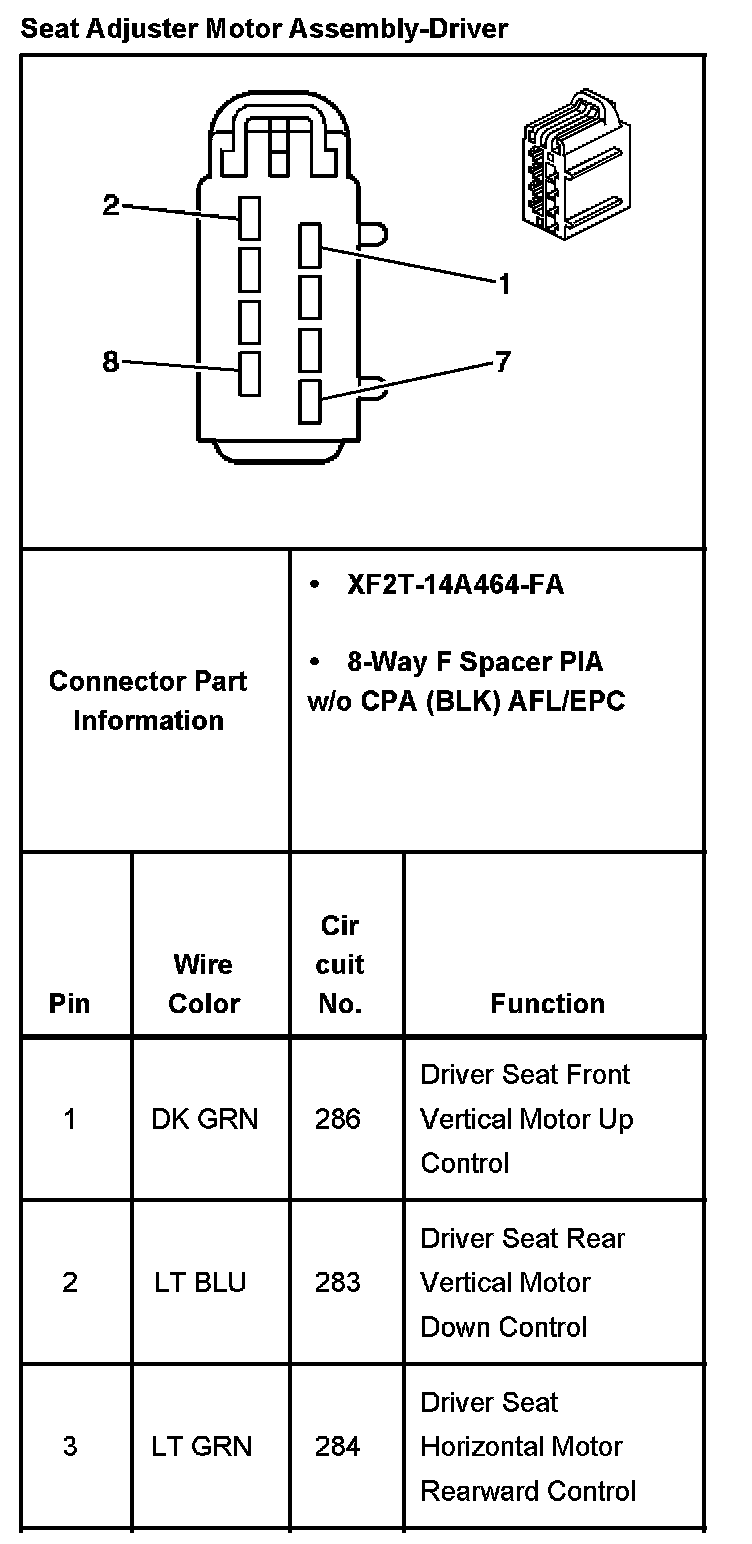

Seat Adjuster Motor Assembly-Driver Part 1:

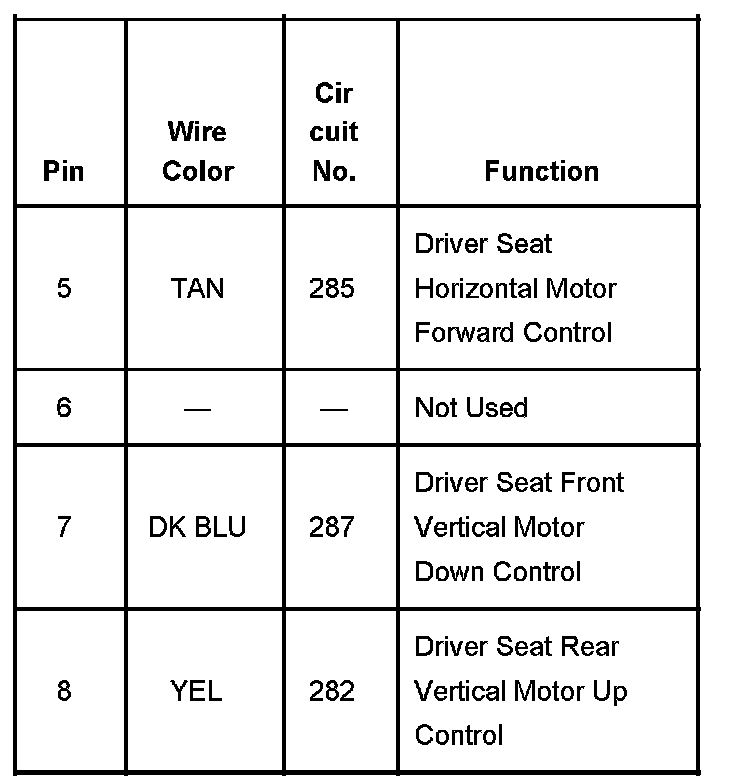

Seat Adjuster Motor Assembly-Driver Part 2:



Seat Adjuster Motor Assembly-Front Passenger Part 1:

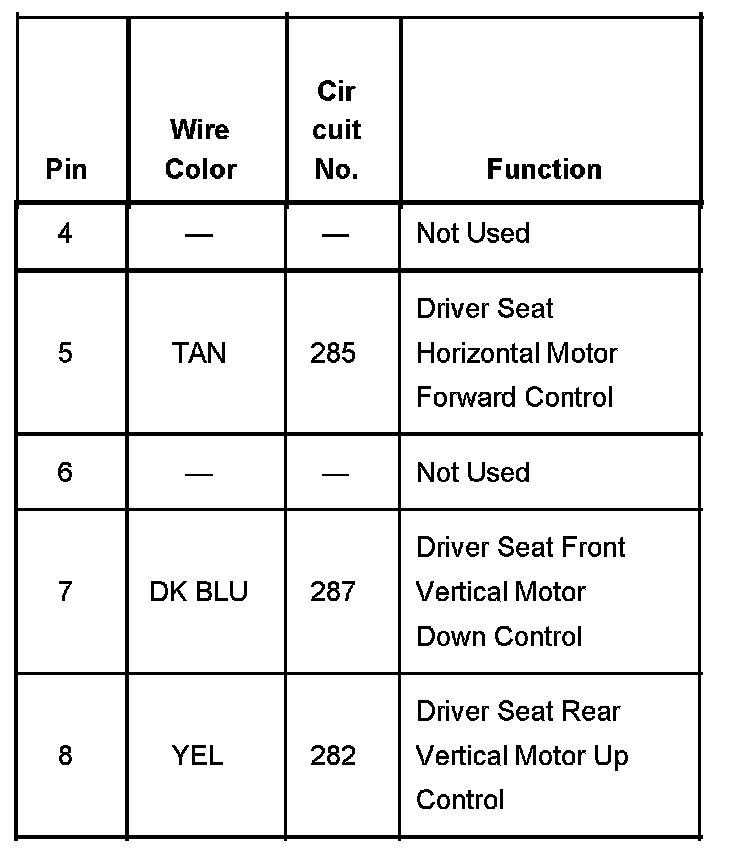

Seat Adjuster Motor Assembly-Front Passenger Part 2:
