Monte Carlo V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
Power Seat Switch

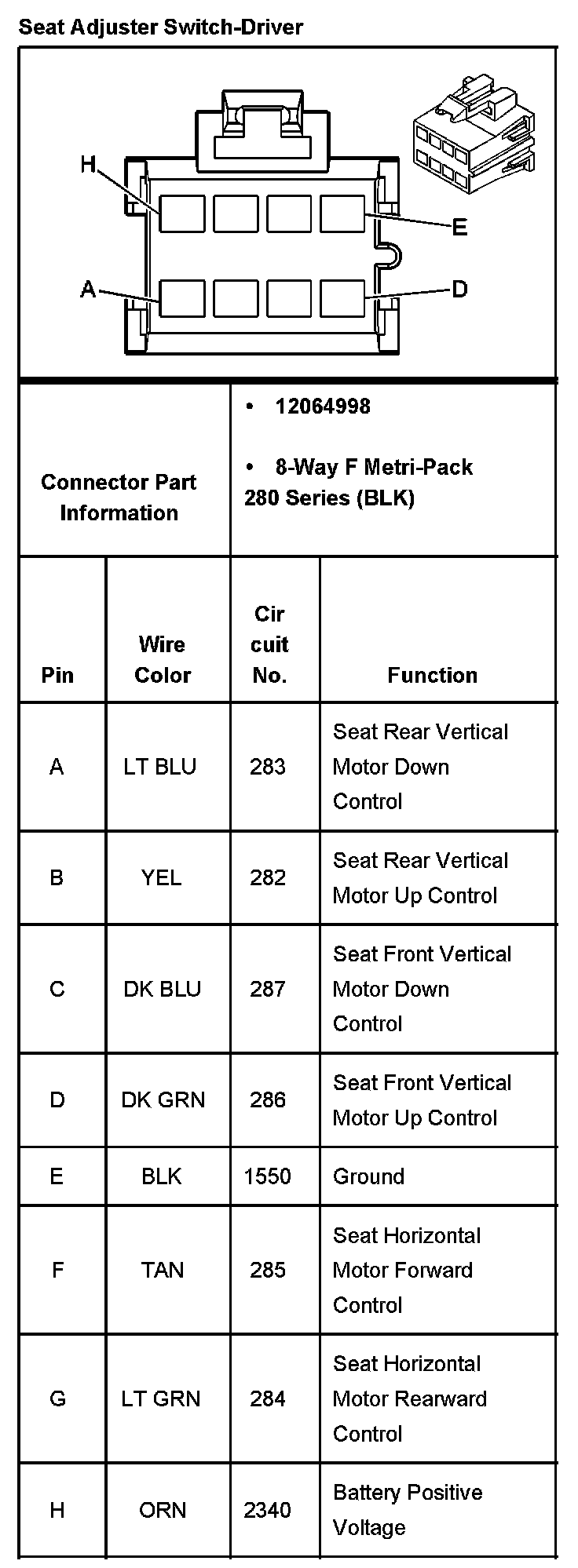

Seat Adjuster Switch-Driver:

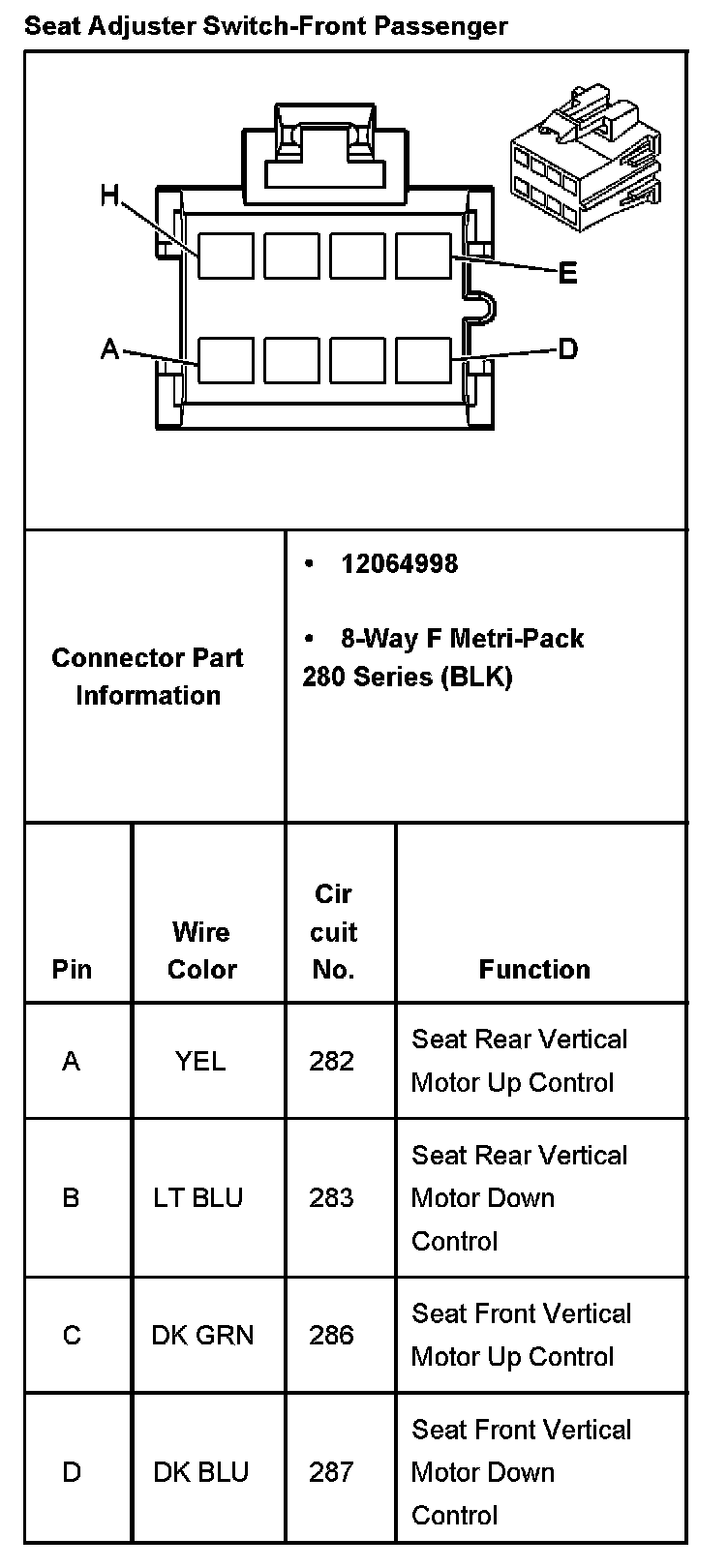

Seat Adjuster Switch-Front Passenger Part 1:

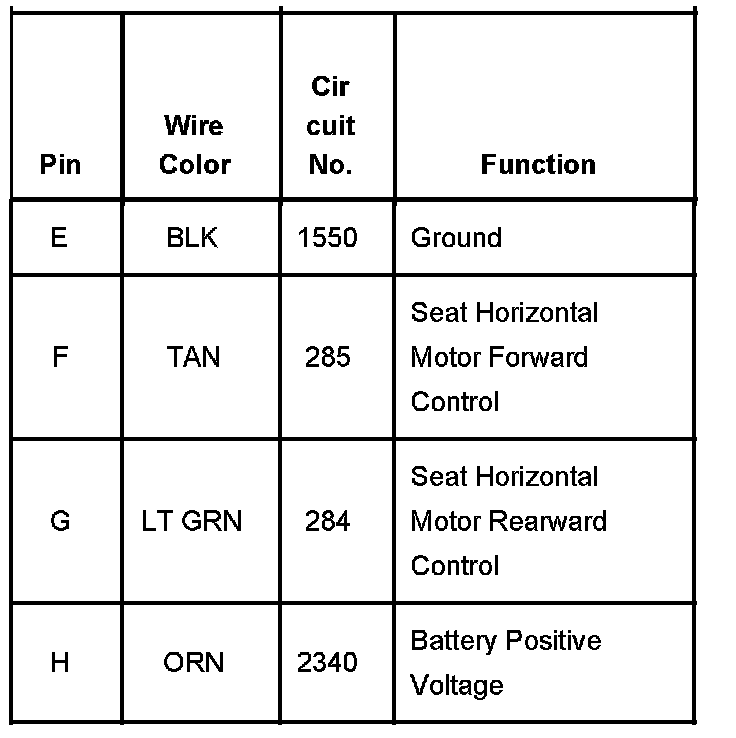

Seat Adjuster Switch-Front Passenger Part 2:
