Home
>>
Chevrolet
>>
2004
>>
Monte Carlo V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Relay
Seat Temperature Relay

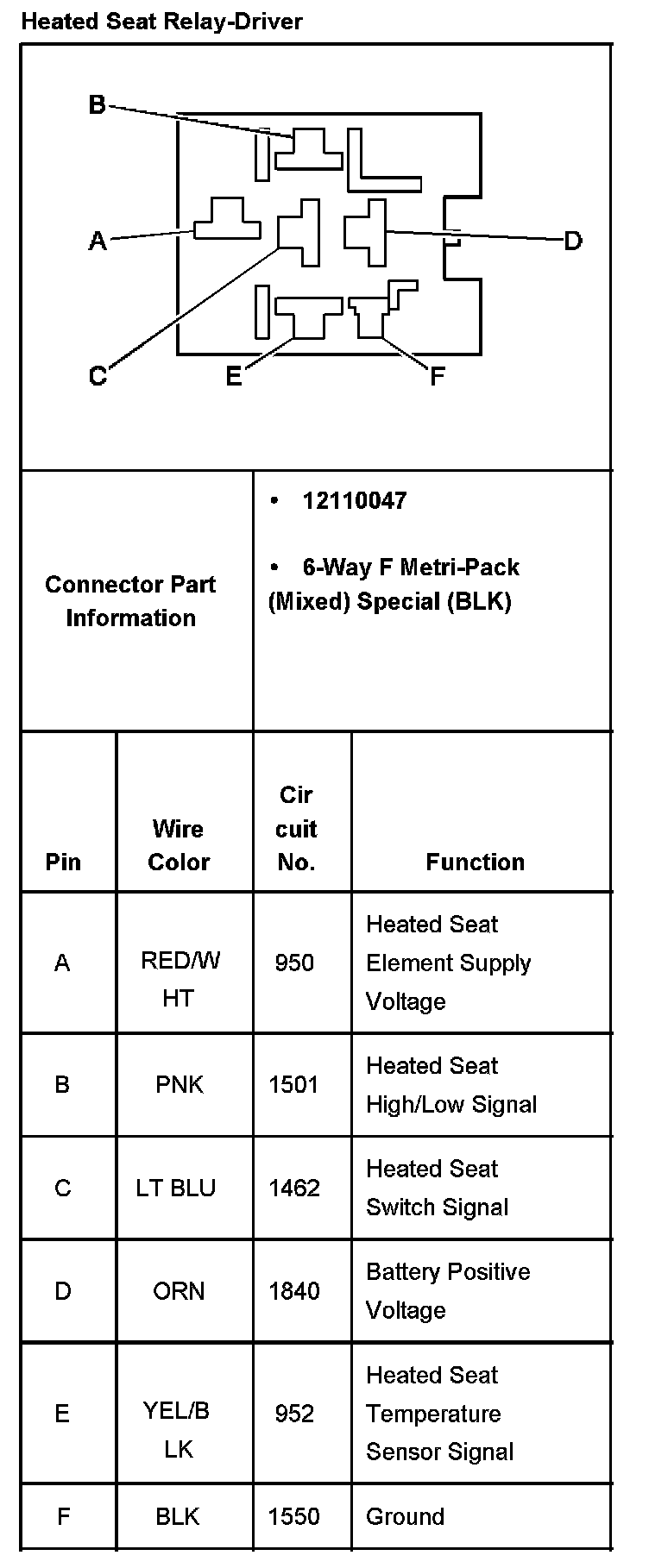

Heated Seat Relay-Driver:
Heated Seat Relay-Front Passenger:
