Steering Column - Column Shift

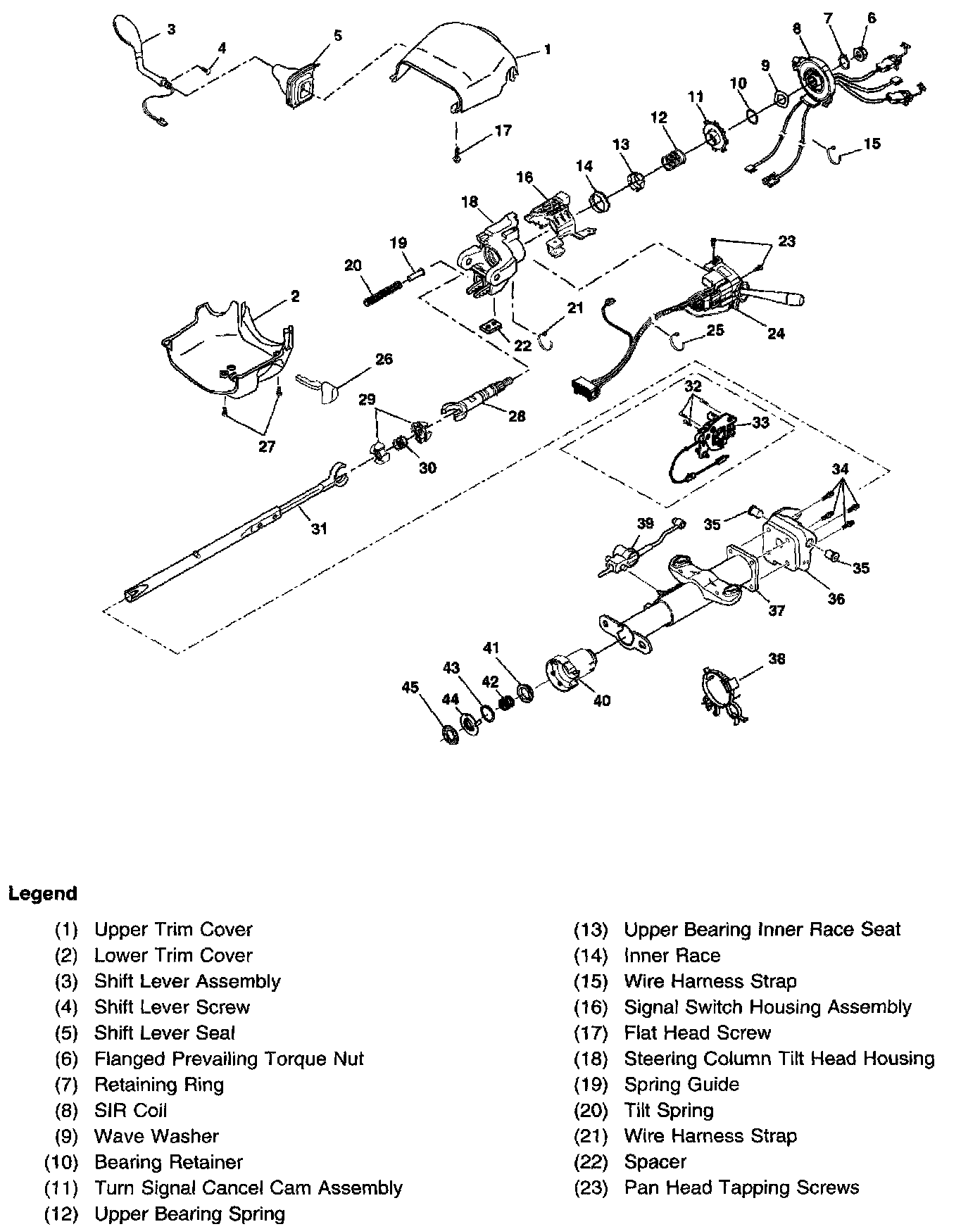

Steering Column Disassembled View (Column Shift)

Part 1 Of 2:

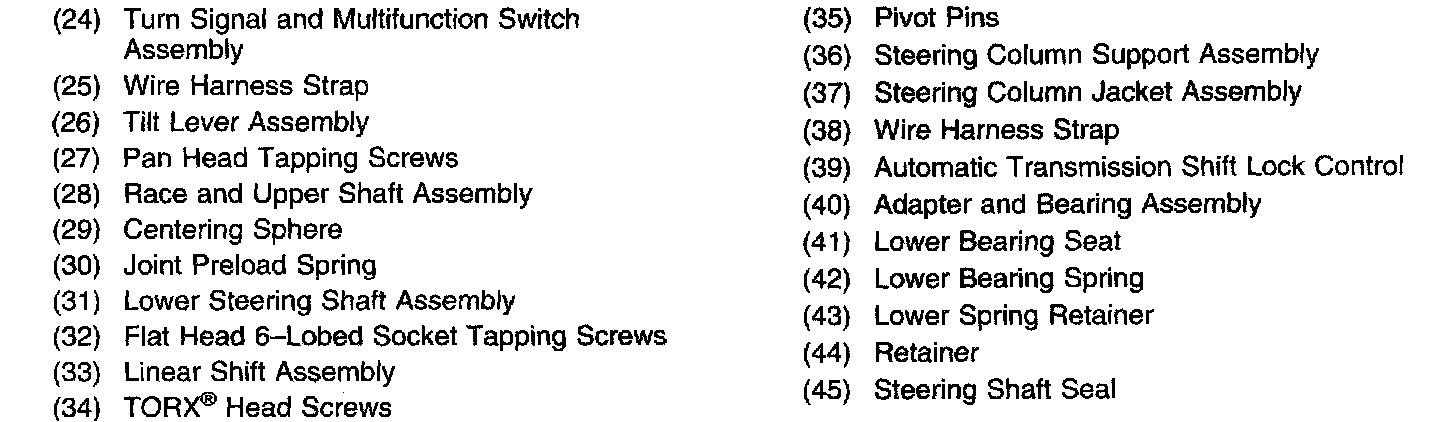

Part 2 Of 2:





Tilt Steering Column
