Steering Column - Floor Shift

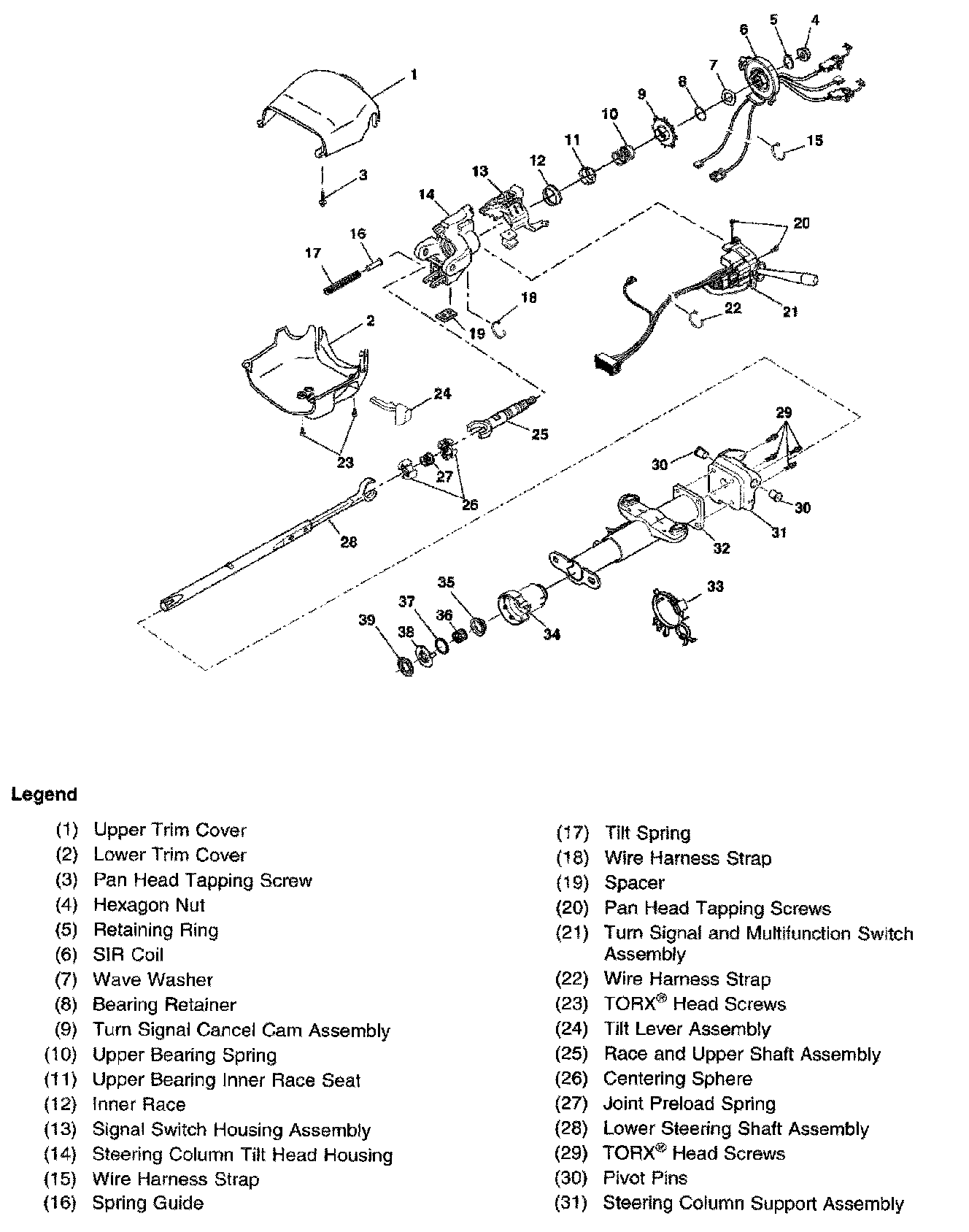

Steering Column Disassembled View (Floor Shift)

Part 1 Of 2:

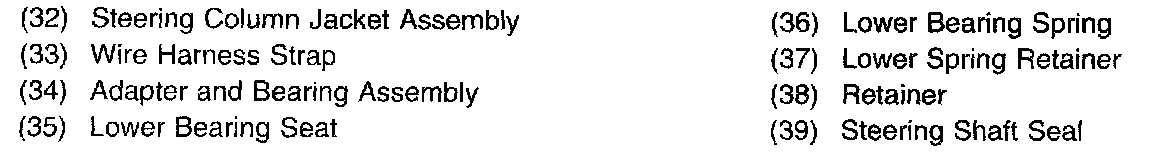

Part 2 Of 2:





Tilt Steering Column
